Hesston Rotary Mower Conditioner 1320 Parts Catalog 00718705

Size: 6.58 MB

Format: PDF

Language: English

Brand: Hesston

Type of Machine: Rotary Mower Conditioner

Type of Manual: Parts Catalog

Model: Hesston 1320 Rotary Mower Conditioner

Part Number: 00718705

Number of Pages: 123 Pages

10 USD

Tag: Hesston Parts Manual

Description

Description

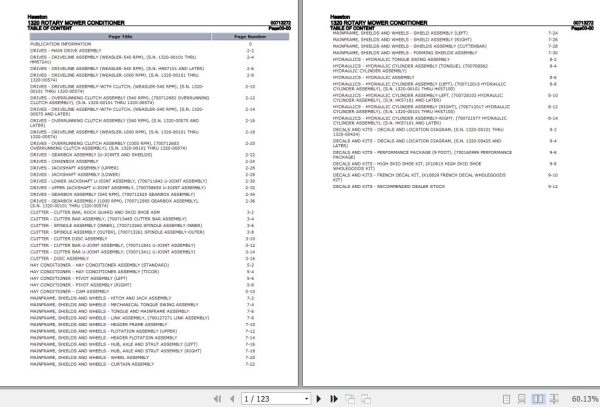

Contents:
Publication Information
Drives – Main Drive Assembly
Drives – Driveline Assembly (Weasler-540 Rpm), (S.N. 1320-00101 Thru Hm57241)
Drives – Driveline Assembly (Weasler-540 Rpm), (S.N. Hn57101 And Later)
Drives – Driveline Assembly (Weasler-1000 Rpm), (S.N. 1320-00101 Thru 1320-00574)
Drives – Driveline Assembly-With Clutch, (Weasler-540 Rpm), (S.N. 1320-00101 Thru 1320-00574)
Drives – Overrunning Clutch Assembly (540 Rpm), (700712682 Overrunning Clutch Assembly), (S.N. 1320-00101 Thru 1320-00574)
Drives – Driveline Assembly-With Clutch, (Weasler-540 Rpm), (S.N. 1320-00575 And Later)
Drives – Overrunning Clutch Assembly (540 Rpm), (S.N. 1320-00575 And Later)
Drives – Overrunning Clutch Assembly (1000 Rpm), (700712683 Overrunning Clutch Assembly), (S.N. 1320-00101 Thru 1320-00574)
Drives – Gearbox Assembly (U-Joints And Shields)

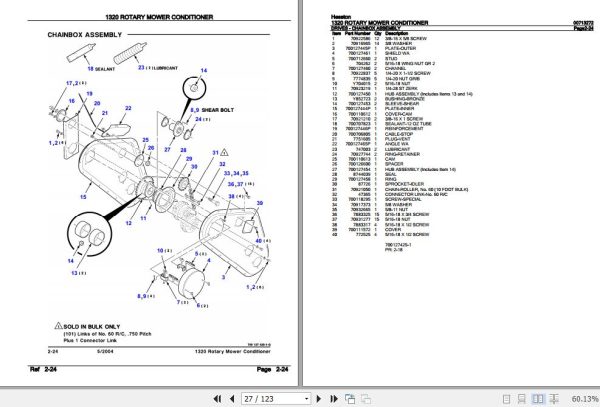

Drives – Chainbox Assembly
Drives – Jackshaft Assembly (Upper)
Drives – Jackshaft Assembly (Lower)
Drives – Lower Jackshaft U-Joint Assembly, (700711842 U-Joint Assembly)
Drives – Upper Jackshaft U-Joint Assembly, (700708650 U-Joint Assembly)
Drives – Gearbox Assembly (540 Rpm), (700712525 Gearbox Assembly)
Drives – Gearbox Assembly (1000 Rpm), (700712585 Gearbox Assembly), (S.N. 1320-00101 Thru 1320-00574)
Cuitter – Cutter Bar, Rock Guard And Skid Shoe Asm
Cuitter – Cutter Bar Assembly, (700713465 Cutter Bar Assembly)
Cuitter – Spindle Assembly (Inner), (700713260 Spindle Assembly-Inner)
Cuitter – Spindle Assembly (Outer), (700713261 Spindle Assembly-Outer)
Cuitter – Cutter Disc Assembly
Cuitter – Cutter Bar U-Joint Assembly, (700711841 U-Joint Assembly)
Cuitter – Cutter Bar U-Joint Assembly, (700713411 U-Joint Assembly)
Cuitter – Disc Assembly
Hay Conditioner – Hay Conditioner Assembly (Standard)
Hay Conditioner – Hay Conditioner Assembly (Ticor)
Hay Conditioner – Pivot Assembly (Left)
Hay Conditioner – Pivot Assembly (Right)
Hay Conditioner – Cam Assembly
Mainframe, Shields And Wheels – Hitch And Jack Assembly
Mainframe, Shields And Wheels – Mechanical Tongue Swing Assembly
Mainframe, Shields And Wheels – Tongue And Mainframe Assembly
Mainframe, Shields And Wheels – Link Assembly, (700127271 Link Assembly)
Mainframe, Shields And Wheels – Header Frame Assembly
Mainframe, Shields And Wheels – Flotation Assembly (Upper)
Mainframe, Shields And Wheels – Header Flotation Assembly
Mainframe, Shields And Wheels – Hub, Axle And Strut Assembly (Left)
Mainframe, Shields And Wheels – Hub, Axle And Strut Assembly (Right)
Mainframe, Shields And Wheels – Wheel Assembly
Mainframe, Shields And Wheels – Curtain Assembly
Mainframe, Shields And Wheels – Shield Assembly (Left)
Mainframe, Shields And Wheels – Shield Assembly (Right)
Mainframe, Shields And Wheels – Shields Assembly (Cutterbar)
Mainframe, Shields And Wheels – Forming Shields Assembly
Hydraulics – Hydraulic Tongue Swing Assembly
Hydraulics – Hydraulic Cylinder Assembly (Tongue), (700708562 Hydraulic Cylinder Assembly)

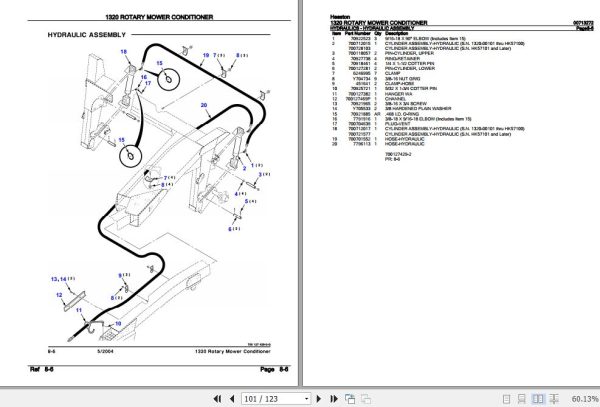

Hydraulics – Hydraulic Assembly
Hydraulics – Hydraulic Cylinder Assembly (Left), (700712015 Hydraulic Cylinder Assembly), (S.N. 1320-00101 Thru Hk57100)
Hydraulics – Hydraulic Cylinder Assembly-Left, (700728103 Hydraulic Cylinder Assembly), (S.N. Hk57101 And Later)
Hydraulics – Hydraulic Cylinder Assembly (Right), (700712017 Hydraulic Cylinder Assembly), (S.N. 1320-00101 Thru Hk57100)
Hydraulics – Hydraulic Cylinder Assembly-Right, (700721577 Hydraulic Cylinder Assembly), (S.N. Hk57101 And Later)
Decals And Kits – Decals And Location Diagram, (S.N. 1320-00101 Thru 1320-00424)
Decals And Kits – Decals And Location Diagram, (S.N. 1320-00425 And Later)
Decals And Kits – Performance Package (9 Foot), (700160999 Performance Package)
Decals And Kits – High Skid Shoe Kit, (K10615 High Skid Shoe Wholegoods Kit)
Decals And Kits – French Decal Kit, (K10829 French Decal Wholegoods Kit)
Decals And Kits – Recommended Dealer Stock
