Hesston Round Baler 530 Parts Catalog 00708084

Size: 5.13 MB

Format: PDF

Language: English

Brand: Hesston

Type of Machine: Round Baler

Type of Manual: Parts Catalog

Model: Hesston 530 Round Baler

Part Number: 00708084

Number of Pages: 124 Pages

10 USD

Tag: Hesston Parts Manual

Description

Description

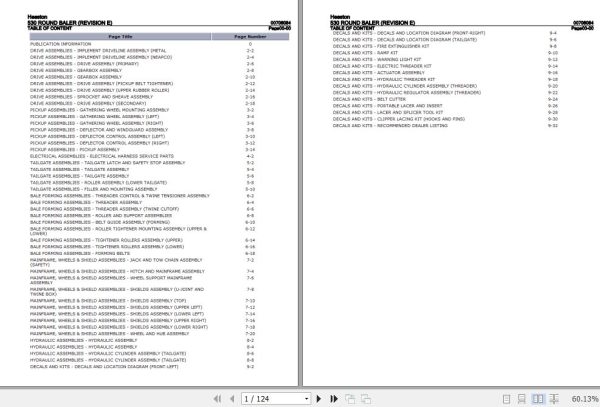

Contents:
Publication Information
Drive Assemblies – Implement Driveline Assembly (Neapco)
Drive Assemblies – Drive Assembly (Primary)
Drive Assemblies – Gearbox Assembly
Drive Assemblies – Drive Assembly (Pickup Belt Tightener)
Drive Assemblies – Drive Assembly (Upper Rubber Roller)
Drive Assemblies – Sprocket And Sheave Assembly
Drive Assemblies – Drive Assembly (Secondary)
Pickup Assemblies – Gathering Wheel Mounting Assembly
Pickup Assemblies – Gathering Wheel Assembly (Left)
Pickup Assemblies – Gathering Wheel Assembly (Right)
Pickup Assemblies – Deflector And Windguard Assembly
Pickup Assemblies – Deflector Control Assembly (Left)
Pickup Assemblies – Deflector Control Assembly (Right)
Pickup Assemblies – Pickup Assembly
Electrical Assemblies – Electrical Harness Service Parts
Tailgate Assemblies – Tailgate Latch And Safety Stop Assembly
Tailgate Assemblies – Tailgate Assembly
Tailgate Assemblies – Roller Assembly (Lower Tailgate)
Tailgate Assemblies – Filler And Mounting Assembly
Bale Forming Assemblies – Threader Control & Twine Tensioner Assembly
Bale Forming Assemblies – Threader Assembly

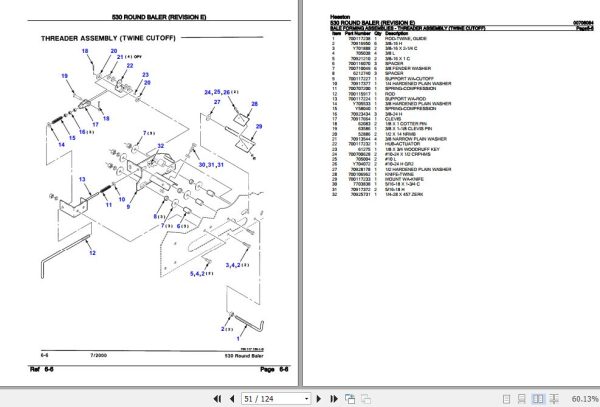

Bale Forming Assemblies – Threader Assembly (Twine Cutoff)
Bale Forming Assemblies – Roller And Support Assemblies
Bale Forming Assemblies – Belt Guide Assembly (Forming)
Bale Forming Assemblies – Roller Tightener Mounting Assembly (Upper & Lower)
Bale Forming Assemblies – Tightener Rollers Assembly (Upper)
Bale Forming Assemblies – Tightener Rollers Assembly (Lower)
Bale Forming Assemblies – Forming Belts
Mainframe, Wheels & Shield Assemblies – Jack And Tow Chain Assembly (Safety)
Mainframe, Wheels & Shield Assemblies – Hitch And Mainframe Assembly
Mainframe, Wheels & Shield Assemblies – Wheel Support Mainframe Assembly
Mainframe, Wheels & Shield Assemblies – Shields Assembly (U-Joint And Twine Box)
Mainframe, Wheels & Shield Assemblies – Shields Assembly (Top)
Mainframe, Wheels & Shield Assemblies – Shields Assembly (Upper Left)
Mainframe, Wheels & Shield Assemblies – Shields Assembly (Lower Left)
Mainframe, Wheels & Shield Assemblies – Shields Assembly (Upper Right)
Mainframe, Wheels & Shield Assemblies – Shields Assembly (Lower Right)
Mainframe, Wheels & Shield Assemblies – Wheel And Hub Assembly
Hydraulic Assemblies – Hydraulic Assembly
Hydraulic Assemblies – Hydraulic Cylinder Assembly (Tailgate)
Decals And Kits – Decals And Location Diagram (Front-Left)
Decals And Kits – Decals And Location Diagram (Front-Right)
Decals And Kits – Decals And Location Diagram (Tailgate)
Decals And Kits – Fire Extinguisher Kit
Decals And Kits – Ramp Kit
Decals And Kits – Warning Light Kit

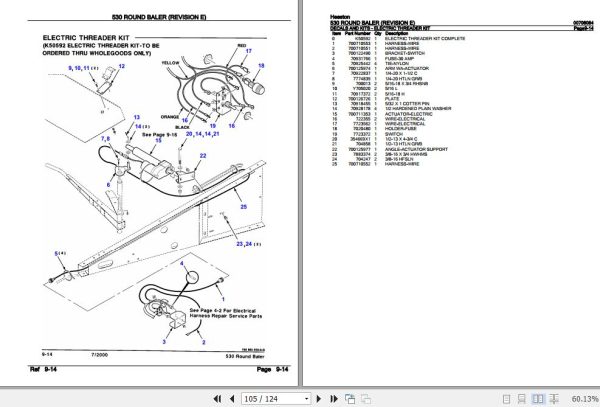

Decals And Kits – Electric Threader Kit
Decals And Kits – Actuator Assembly
Decals And Kits – Hydraulic Threader Kit
Decals And Kits – Hydraulic Cylinder Assembly (Threader)
Decals And Kits – Hydraulic Regulator Assembly (Threader)
Decals And Kits – Belt Cutter
Decals And Kits – Portable Lacer And Insert
Decals And Kits – Lacer And Splicer Tool Kit
Decals And Kits – Clipper Lacing Kit (Hooks And Pins)
Decals And Kits – Recommended Dealer Listing
