Name: Hesston SP Rotary Header 8070 Parts Catalog 00718779
SKU: 455493
Availability: InStock

Hesston SP Rotary Header 8070 Parts Catalog 00718779 1

Hesston SP Rotary Header 8070 Parts Catalog 00718779 2

Hesston SP Rotary Header 8070 Parts Catalog 00718779 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Hesston SP Rotary Header 8070 Parts Catalog 00718779

Size: 5.71 MB

Format: PDF

Language: English

Brand: Hesston

Type of Machine: SP Rotary Header

Type of Manual: Parts Catalog

Model: Hesston 8070 SP Rotary Header

Part Number: 00718779

Number of Pages: 140 Pages

10 USD

Tag: Hesston Parts Manual

Description

Description

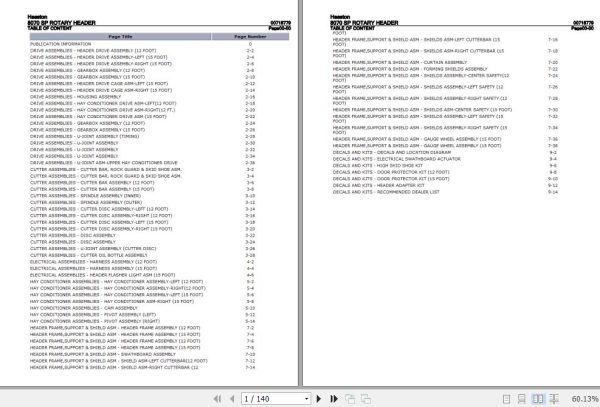

Contents:
Publication Information
Drive Assemblies – Header Drive Assembly (12 Foot)
Drive Assemblies – Header Drive Assembly-Left (15 Foot)
Drive Assemblies – Header Drive Assembly-Right (15 Foot)
Drive Assemblies – Gearbox Assembly (12 Foot)
Drive Assemblies – Gearbox Assembly (15 Foot)
Drive Assemblies – Header Drive Cage Asm-Left (15 Foot)
Drive Assemblies – Header Drive Cage Asm-Right (15 Foot)
Drive Assemblies – Housing Assembly
Drive Assemblies – Hay Conditioner Drive Asm-Left(12 Foot)
Drive Assemblies – Hay Conditioner Drive Asm-Right(12 Ft.)
Drive Assemblies – Hay Conditioner Drive Asm (15 Foot)
Drive Assemblies – U-Joint Assembly (Timing)
Drive Assemblies – U-Joint Assembly
Drive Assemblies – U-Joint Asm-Upper Hay Conditioner Drive
Cutter Assemblies – Cutter Bar, Rock Guard & Skid Shoe Asm.
Cutter Assemblies – Cutter Bar Assembly (12 Foot)
Cutter Assemblies – Cutter Bar Assembly (15 Foot)
Cutter Assemblies – Spindle Assembly (Inner)
Cutter Assemblies – Spindle Assembly (Outer)
Cutter Assemblies – Cutter Disc Assembly-Left (12 Foot)
Cutter Assemblies – Cutter Disc Assembly-Right (12 Foot)
Cutter Assemblies – Cutter Disc Assembly-Left (15 Foot)
Cutter Assemblies – Cutter Disc Assembly-Right (15 Foot)
Cutter Assemblies – Disc Assembly
Cutter Assemblies – U-Joint Assembly (Cutter Disc)
Cutter Assemblies – Cutter Oil Bottle Assembly
Electrical Assemblies – Harness Assembly (12 Foot)
Electrical Assemblies – Harness Assembly (15 Foot)
Electrical Assemblies – Header Flasher Light Asm (15 Foot)
Hay Conditioner Assemblies – Hay Conditioner Assembly-Left (12 Foot)
Hay Conditioner Assemblies – Hay Conditioner Assembly-Right(12 Foot)
Hay Conditioner Assemblies – Hay Conditioner Assembly-Left (15 Foot)

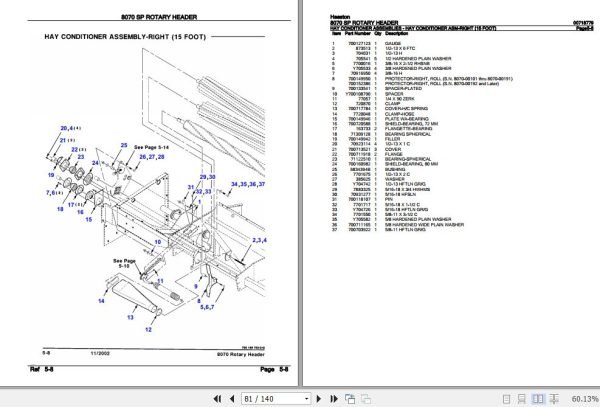

Hay Conditioner Assemblies – Hay Conditioner Asm-Right (15 Foot)
Hay Conditioner Assemblies – Cam Assembly
Hay Conditioner Assemblies – Pivot Assembly (Left)
Hay Conditioner Assemblies – Pivot Assembly (Right)
Header Frame,Support & Shield Asm – Header Frame Assembly (12 Foot)
Header Frame,Support & Shield Asm – Header Frame Assembly (15 Foot)
Header Frame,Support & Shield Asm – Swathboard Assembly
Header Frame,Support & Shield Asm – Shield Asm-Left Cutterbar(12 Foot)
Header Frame,Support & Shield Asm – Shield Asm-Right Cutterbar (12 Foot)
Header Frame,Support & Shield Asm – Shields Asm-Left Cutterbar (15 Foot)
Header Frame,Support & Shield Asm – Shields Asm-Right Cutterbar (15 Foot)
Header Frame,Support & Shield Asm – Curtain Assembly
Header Frame,Support & Shield Asm – Forming Shields Assembly
Header Frame,Support & Shield Asm – Shields Assembly-Center Safety(12 Foot)
Header Frame,Support & Shield Asm – Shields Assembly-Left Safety (12 Foot)
Header Frame,Support & Shield Asm – Shields Assembly-Right Safety (12 Foot)
Header Frame,Support & Shield Asm – Shields Asm-Center Safety (15 Foot)

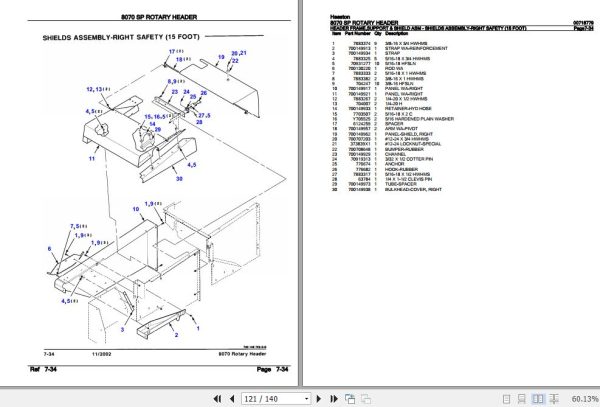

Header Frame,Support & Shield Asm – Shields Assembly-Left Safety (15 Foot)
Header Frame,Support & Shield Asm – Shields Assembly-Right Safety (15 Foot)
Header Frame,Support & Shield Asm – Gauge Wheel Assembly (15 Foot)
Decals And Kits – Decals And Location Diagram
Decals And Kits – Electrical Swathboard Actuator
Decals And Kits – High Skid Shoe Kit
Decals And Kits – Door Protector Kit (12 Foot)
Decals And Kits – Door Protector Kit (15 Foot)
Decals And Kits – Header Adapter Kit
Decals And Kits – Recommended Dealer List
