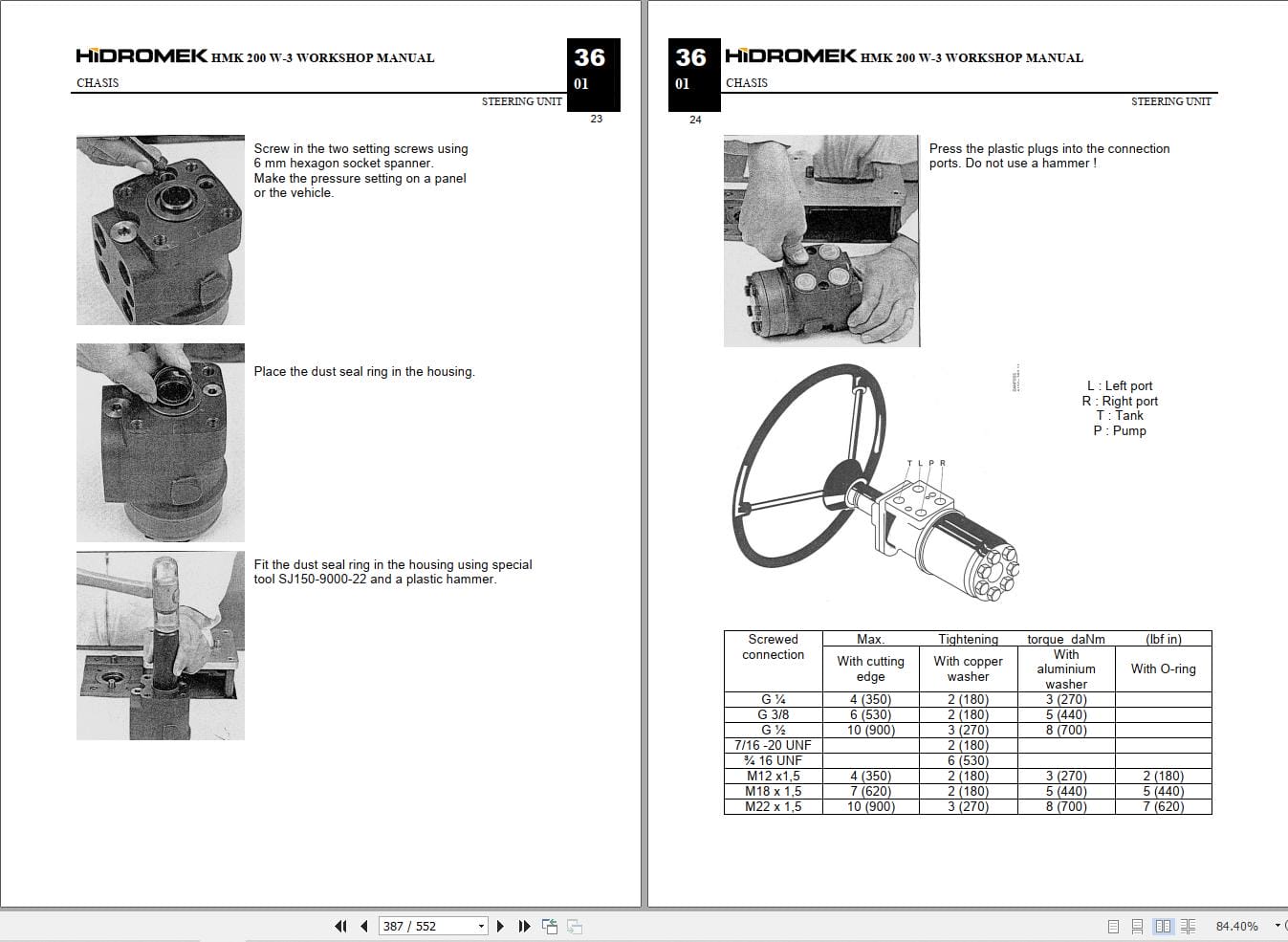

Hidromek Excavator HMK 200W 3 Workshop Manual H237315100 (1)

Hidromek Excavator HMK 200W 3 Workshop Manual H237315100 (2)

Hidromek Excavator HMK 200W 3 Workshop Manual H237315100 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Hidromek Excavator HMK 200W-3 Workshop Manual H237315100

Size: 86.79 MB

Format: PDF

Language: English

Brand: Hidromek

Type of Machine: Excavator

Type of Manual: Workshop Manual, Electric and Hydraulic Diagram

Model: Hidromek HMK 200W-3 Excavator

Part Number: H237315100

Number of Pages: 552 Pages

100 USD

Tags: Hidromek Excavator Manual, Hidromek Workshop Manual, HMK 200W-3

Description

Description

Contents:
HMK 200W-3 Stage3A WORKSHOP MANUAL
_table of contents_
00-00 General
00-01 Revision History
00-02 Foreword
00-03 Safety
00-04 Standards
01-00 Specifications
01-01 General
01-02 Working Performance
01-03 Lubrication Chart
01-04 Standard Performance
01-05 Periodic Maintenance
20-00 Electric System
20-01 Electric System general
20-02 Electric System service
21-01 Air conditioner
29-00 List of Circuit Diagrams And Harness
29-01 Circuit Diagrams And Harness
1.1
1.2
2.1
2.2
3.1
3.2
4.1
4A.1
5.1
6.1
7.1
8.1
9.1
10.1
11.1
11.2
12.1
12.2
13.1
14.1
15.1
16.1
17.1
18.1
30-00 Hydraulic System
31-01 Main Pump
31-02 Pump Regulator
32-03 Travel motor A6VM
33-01 Pilot control valve _joystick_
34-01 Control valve specifications
34-02 Control valve service
35-01 Swing motor
35-02 Swivel joint
36-01 steering pump 200W
37-01 Hydraulic Accumulator
39-00 List of Hydraulic Drawings
39-01 Hydraulic Drawings
1.1
2.1
3.1
4.1
5.1
6.1
50-00 Lower Chassis
50-01 Front Axle
50-02 Rear Axle
51-01 Transmission ZF 2HL270 general
51-02 Transmission ZF 2HL270 service
60-00 Tyre
60-01 Tyre General & Specifications
70-00 Attachment
70-01 Front Attachment specifications
70-02 Front Attachment service
