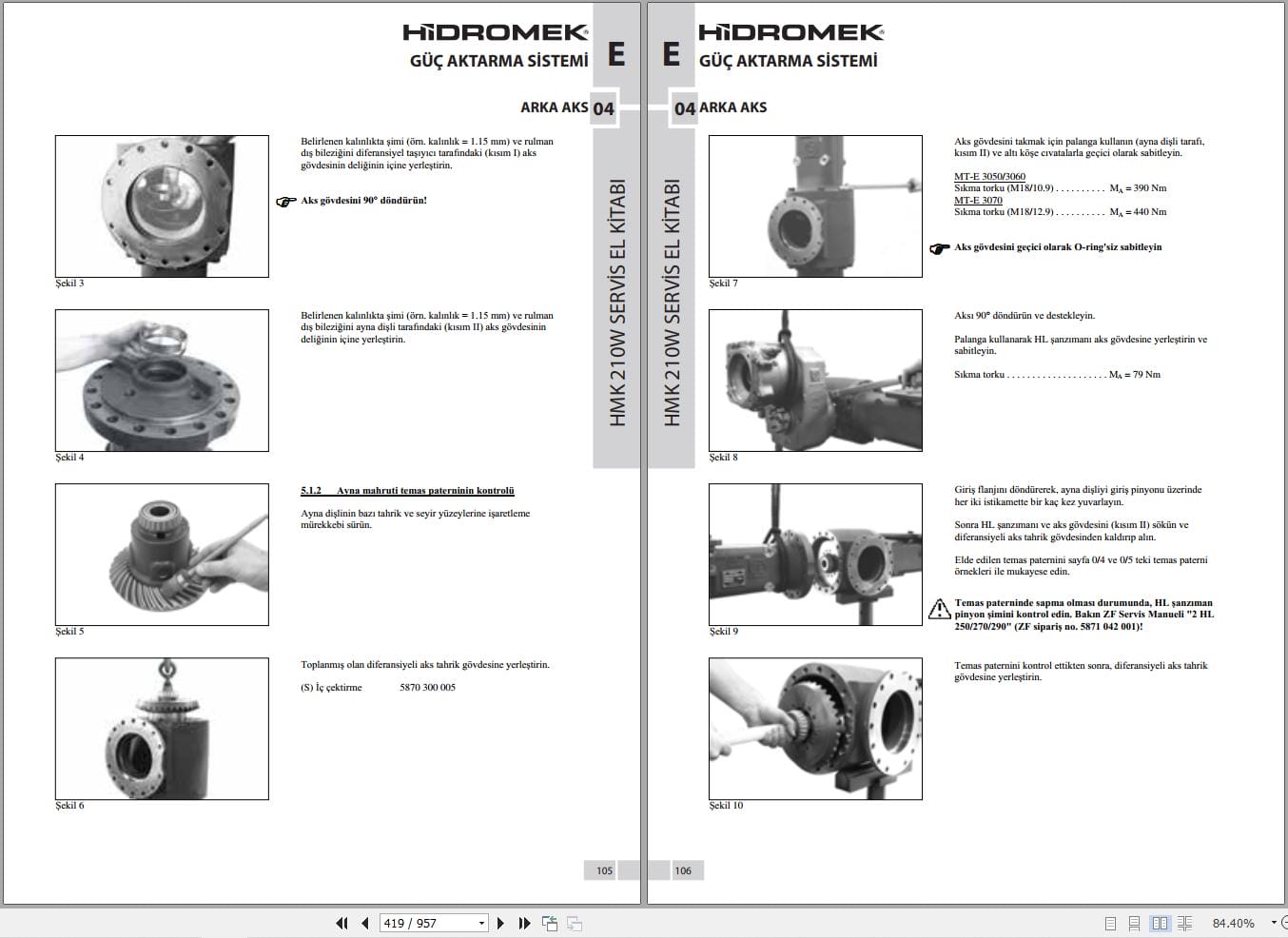

Hidromek Excavator HMK 210W-3 Workshop Manual TR
Size: 57.20 MB
Format: PDF
Language: Turkish
Brand: Hidromek
Type of Machine: Excavator
Type of Manual: Workshop Manual, ELectric and Hydraulic Diagram
Model: Hidromek HMK 210W-3 Excavator
Number of Pages: 957 Pages
100 USD
- Description
Description
Contents:
HMK 210W-3 Stage3B SERVÄ°S EL KÄ°TABI
00 Önsöz
01 Servis El Kitabının Yapısı
02 Bu Kitap Nasıl Okunur
03 Ölçü Birim Dönüşümleri
01 Genel
01 Güvenlik Önlemleri
02 Makine Özellikleri
02 Test ve Ayarlar
Performans Standart Tablosu
Test Yöntemleri
A Motor Sistemi
Motor Montajı
Hava EmiÅŸ Sistemi
Egzoz Sistemi
SoÄŸutma Sistemi
Yakıt Sistemi
Yakıt Transfer Pompası
Klima ve Kalorifer
C Operatör Kabini
01 Kabin ile İlgili Parçalar
D AtaÅŸmanlar
01 AtaÅŸmanlar
02 Çabuk Sök-Tak Komplesi
03 Hidrolik Kırıcı
E Güç Aktarma Sistemi
Güç Aktarma Montajı
Teker ve Lastik Grubu
Ön Aks
Arka Aks
Şanzıman
F Hidrolik Sistem
Hidrolik Sistem
Hidrolik Åžema
G Hidrolik Komponentler
Hidrolik Pompalar
Ana Kumanda Valfi
Kule Dönüş Ünitesi, Motor
Kule Dönüş Ünitesi, Dişli Kutusu
Yürüyüş Motoru
Döner Dağıtıcı
Joystikler
Direksiyon Ãœnitesi
Pilot ve Şanzıman Valfi
Hidrolik Silindirler
Hidrolik Akümülatörler
J Fren Sistemi
Servis Freni
Park Freni
K Elektrik Sistemi
01 Ana Elektrik Sistemi

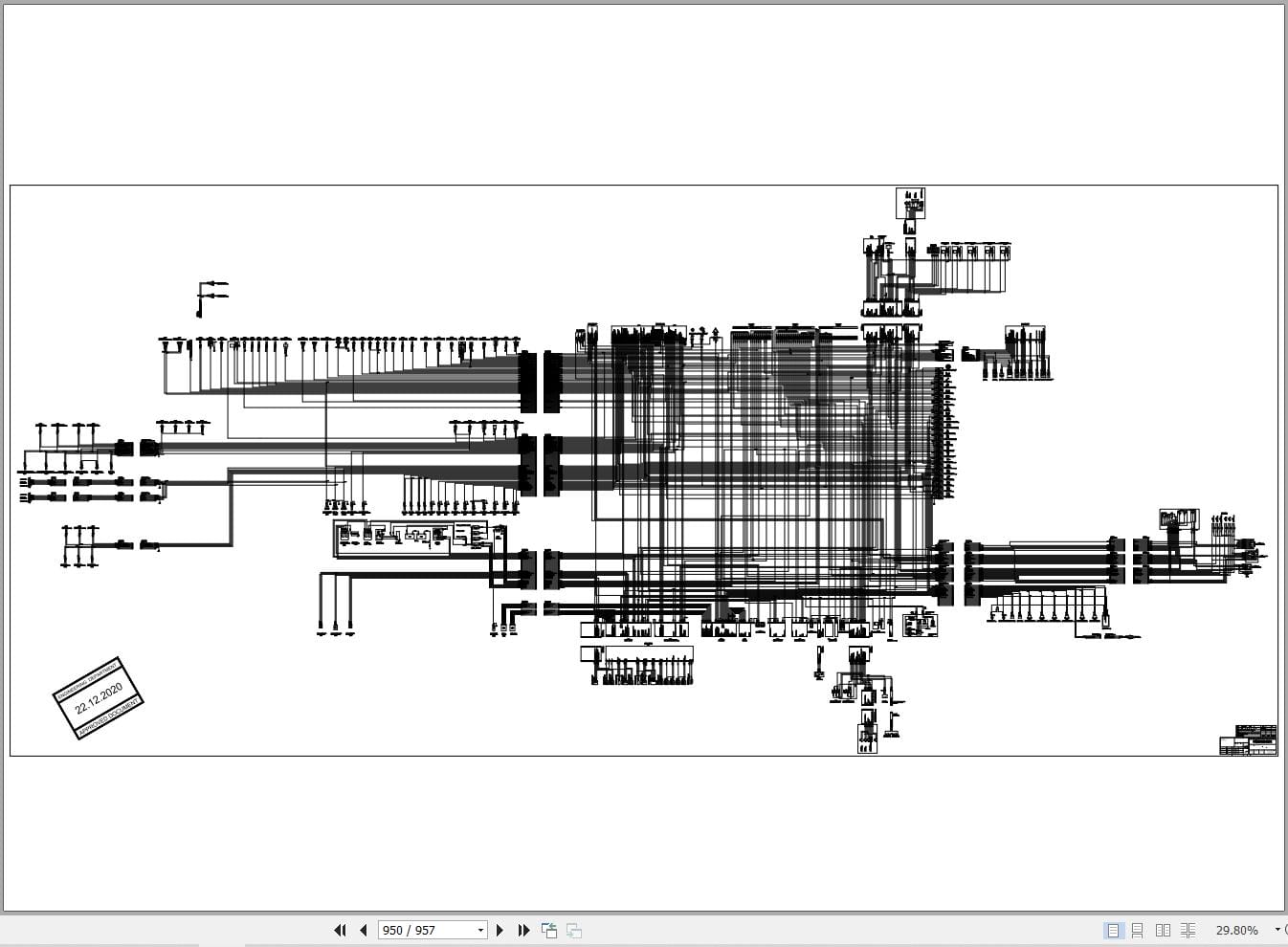

02 Elektrik Şemaları
