Hidromek Excavator HMK 220LC-3 Workshop Manual TR
Size: 58.27 MB
Format: PDF
Language: Turkish
Brand: Hidromek
Type of Machine: Excavator
Type of Manual: Workshop Manual, Electric And Hydraulic Diagram
Model: Hidromek HMK 220LC-3 Excavator
Number of Pages: 684 Pages
100 USD
- Description
Description
Contents:
HMK 220LC3 Stage3B Servis El Kitabı
00 ÖNSÖZ
01 Servis El Kitabının Yapısı
02 Bu Kitap Nasıl Okunur
03 Ölçü Birim Dönüşümleri
01 GENEL
01 Güvenlik Önlemleri
02 Makine Özellikleri
02 TEST VE AYARLAR
01 Performans Standart Tablosu
02 Test Yöntemleri
A MOTOR SÄ°STEMÄ°
01 Motor Montajı
02 Hava EmiÅŸ Sistemi
03 Egzoz Sistemi
04 SoÄŸutma Sistemi
05 Yakıt Sistemi
06 Yakıt Transfer Pompası
07 Klima ve Kalorifer
B ÅžASÄ° VE KAPORTA
01 Üst Şasi ve İlgili Parçalar
02 Alt Şasi ve İlgili Parçalar
C KABÄ°N
01 Kabin ve İlgili Parçalar
D ATAÅžMAN
01 Ataşman Montajı
02 Çabuk Sök-Tak Komplesi
03 Hidrolik Kırıcı
F HÄ°DROLÄ°K SÄ°STEM
01 Hidrolik Sistem
Hidrolik Devre Şemaları
G HÄ°DROLÄ°K KOMPONENTLER

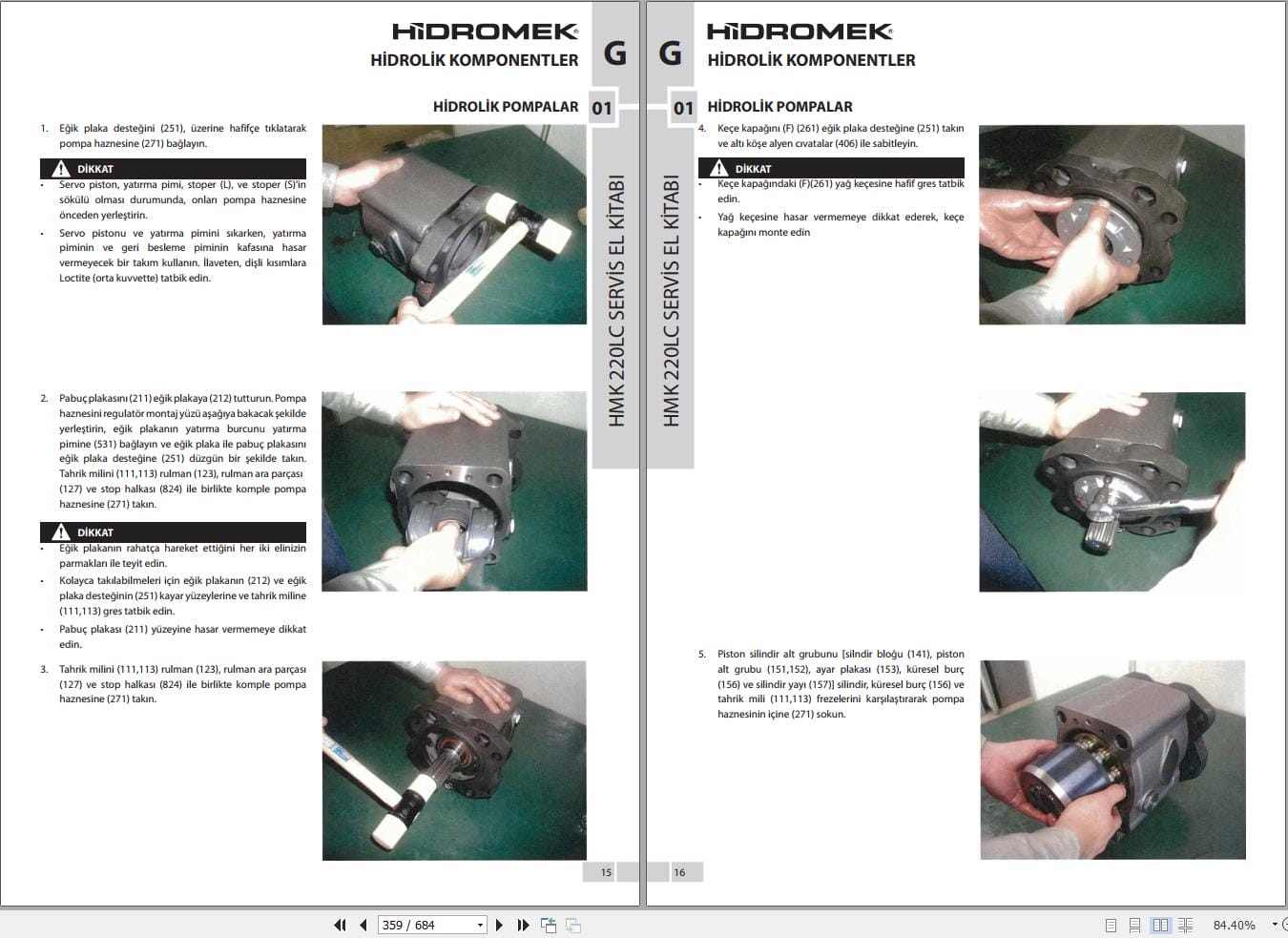

01 Hidrolik Pompalar
02 Ana Kumanda Valfi
03 Kule Dönüş Ünitesi, Motor
04 Kule Dönüş Ünitesi, Dişli Kutusu
05 Yürüyüş Motoru
06 Döner Dağıtıcı
07 Joystikler
08 Hidrolik Silindirler
09 Hidrolik Akümülatörler
K ELEKTRÄ°K SÄ°STEMÄ°
01 Ana Elektrik Sistemi
02 Opera Kontrol Sistemi
03 Lambalar
04 Smartlink
05 Kamera Montajı

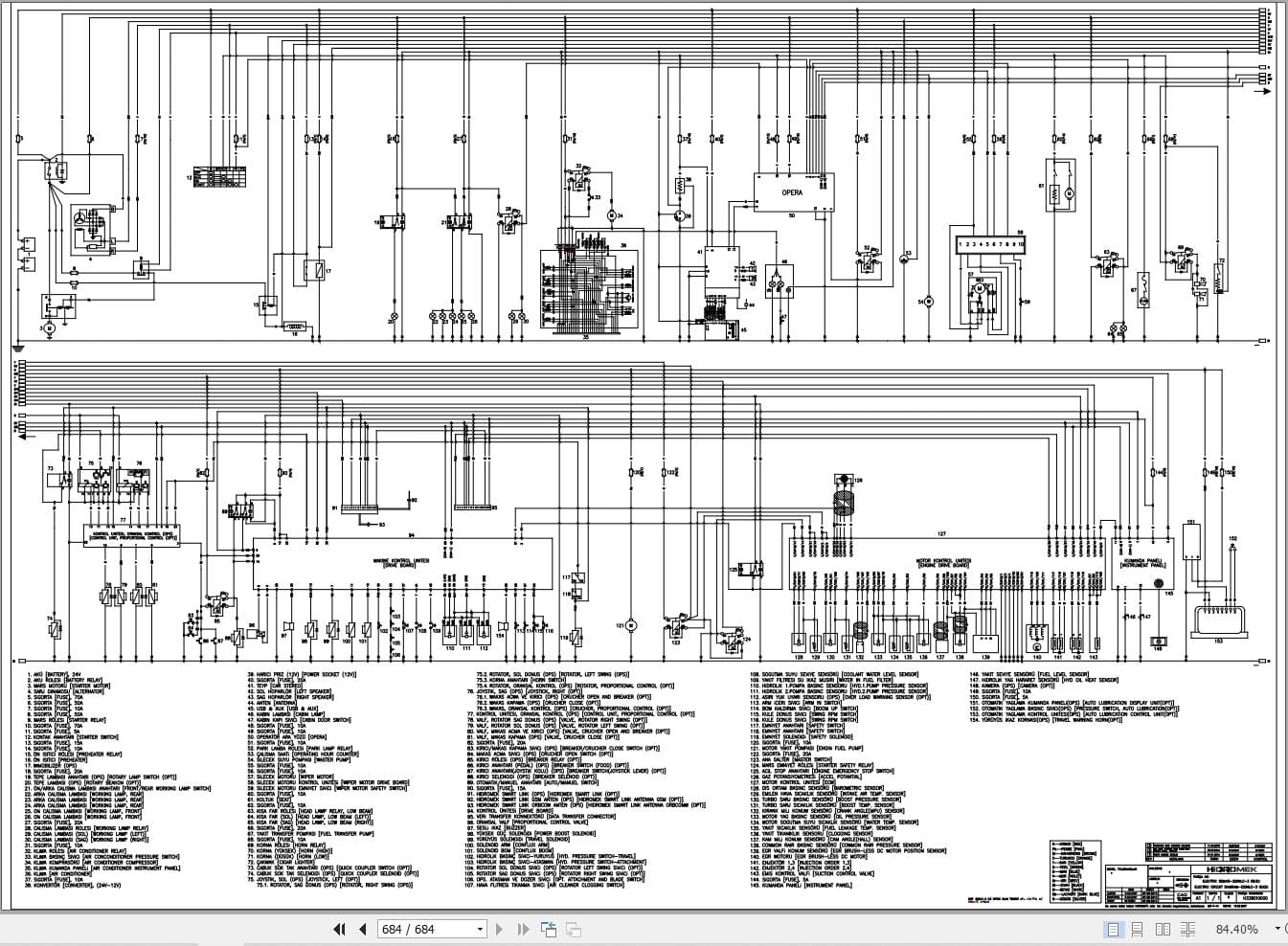

Elektrik Devre Şemaları
