Hidromek Excavator HMK 370LC-3 Workshop Manual TR
Size: 62.98 MB
Format: PDF
Language: Turkish
Brand: Hidromek
Type of Machine: Excavator
Type of Manual: Workshop Manual, Electric and Hydraulic Diagram
Model: Hidromek HMK 370LC-3 Excavator
Number of Pages: 727 Pages
100 USD
- Description
Description
Contents:
HMK 370LC3 Stage3A SERVÄ°S EL KÄ°TABI
İçindekiler
00 Önsöz
01 Servis El Kitabının Yapısı
02 Bu kitap Nasıl Okunur
03 Ölçü Birim Dönüşümleri
01 Genel
01 Güvenlik Önlemleri
02 Makine Özellikleri
02 Test ve Ayarlar
01 Performans Standart Tablosu
02 Test Yöntemleri
A Motor Sistemi
01 Motor Montajı
02 Hava EmiÅŸ Sistemi
03 Egzoz Sistemi
04 SoÄŸutma Sistemi
05 Yakıt Sistemi
06 Yakıt Transfer Pompası
07 Klima ve Kalorifer
B Åžasi ve Kaporta
01 Üst Şasi ve İlgili Parçalar
02 Alt Şasi ve İlgili Parçalar
C Operatör Kabini
01 Kabin ve İlgili Parçalar
D AtaÅŸman
01 Ataşman Montajı
02 Çabuk Sök-Tak Komplesi
03 Hidrolik Kırıcı
F Hidrolik Sistem
01 Hidrolik Sistem
HMK 370LC3 Hidrolik Devre Şeması
G Hidrolik Komponentler
01 Hidrolik Pompalar
02 Ana Kumanda Valfi
03 Kule Dönüş Ünitesi, Motor
04 Kule Dönüş Ünitesi, Dişli Kutusu
05 Yürüyüş Motoru
06 Yürüyüş Ünitesi, Dişli Kutusu
07 Döner Dağıtıcı
08 Joystikler
09 Yürüyüş Pedal Valfi
10 Solenoid Valf
11 Hidrolik Silindirler
K Elektrik Sistemi
01 Ana Elektrik Sistemi
02 Opera Kontrol Sistemi
03 Lambalar
04 Smartlink
05 Kamera Montajı

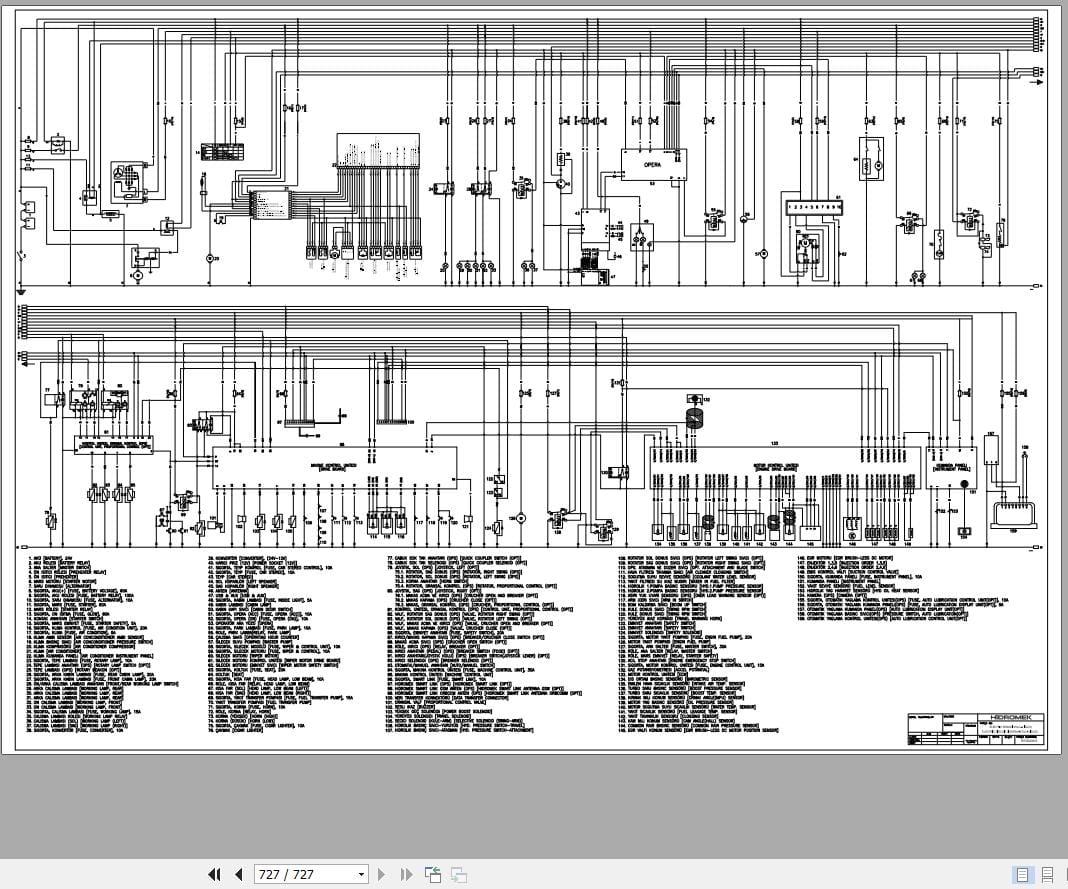

HMK 370LC3 Elektrik Tesisat Şeması
