Name: Hidromek Excavator HMK 500LC-3 Workshop Manual R01
SKU: 557856
Price: 100.00 USD
Availability: InStock

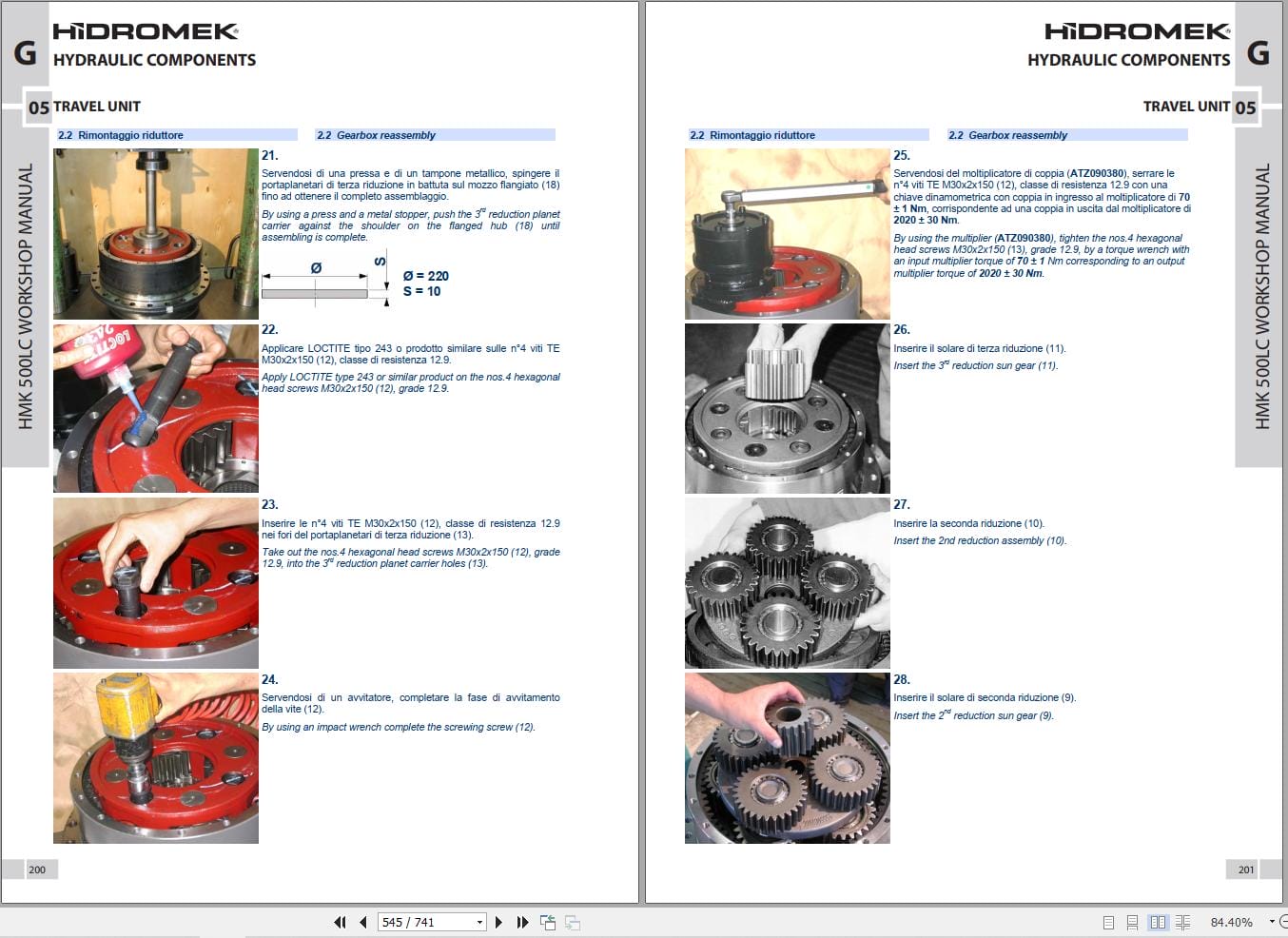

Hidromek Excavator HMK 500LC 3 Workshop Manual R01 (1)

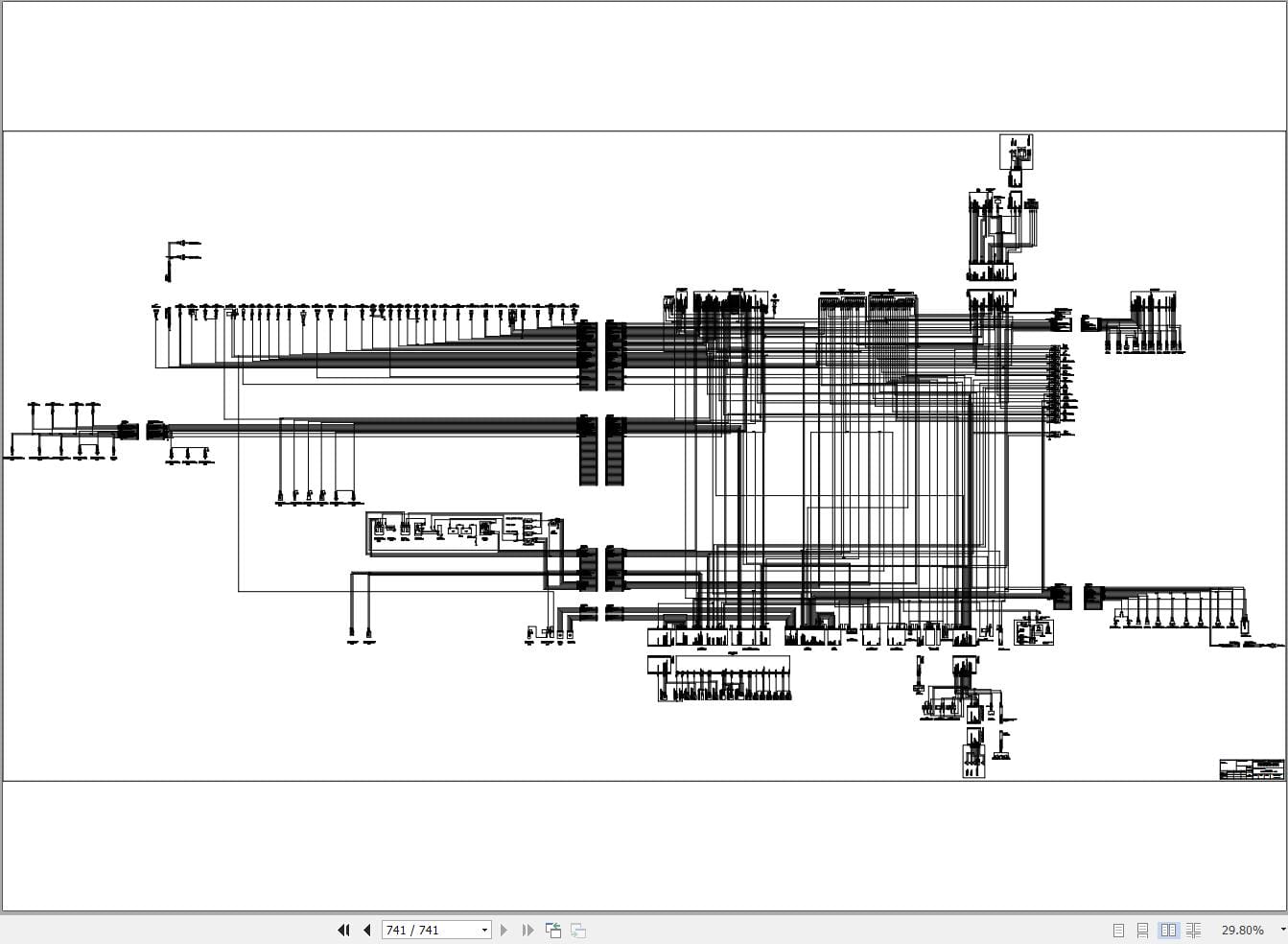

Hidromek Excavator HMK 500LC 3 Workshop Manual R01 (2)

Hidromek Excavator HMK 500LC 3 Workshop Manual R01 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Hidromek Excavator HMK 500LC-3 Workshop Manual R01

Size: 77.55 MB

Format: PDF

Language: English

Brand: Hidromek

Type of Machine: Excavator

Type of Manual: Workshop Manual, Electric and Hydraulic Diagrm

Model: Hidromek HMK 500LC-3 Excavator

Number of Pages: 741 Pages

100 USD

Tags: Hidromek Excavator Manual, Hidromek Workshop Manual, HMK 500LC-3

Description

Description

Contents:
00 FOREWORD
01 Structure of Workshop Manual
02 How to Read This Manual
03 Conversion Tables
01 GENERAL
01 Safety Precautions
02 Specifications
02 TESTING & ADJUSTING
01 Performance Standard Table
02 Test Procedures
A ENGINE MOUNTING
01 Engine Mounting
02 Air Intake System
03 Exhaust System
04 Cooling System
05 Fuel System
06 Fuel Feed Pump Assembly
07 Air Condition and Heater
B FRAME & COWLING
01 Upper Frame and Related Parts
02 Lower Frame and Related Parts
C OPERATOR CAB
01 Cabin and Related Parts
D ATTACHMENT
01 Attachment Mounting
02 Quick Coupling
03 Hydraulic Breaker
F HYDRAULIC SYSTEM
01 Hydraulic System
02 Hydraulic Diagram
G HYDRAULIC COMPONENTS
01 Hydraulic Pumps
02 Main Control Valve
03 Swing Unit, Motor
04 Swing Unit, Reduction Gear
05 Travel Unit
06 Turning Joint
07 Joysticks
08 Hydraulic Cylinders
09 Hydraulic Accumulators
10 Travel Pedal Valve
K ELECTRICAL SYSTEM
01 Main Electrical System
02 Electrical Diagram
