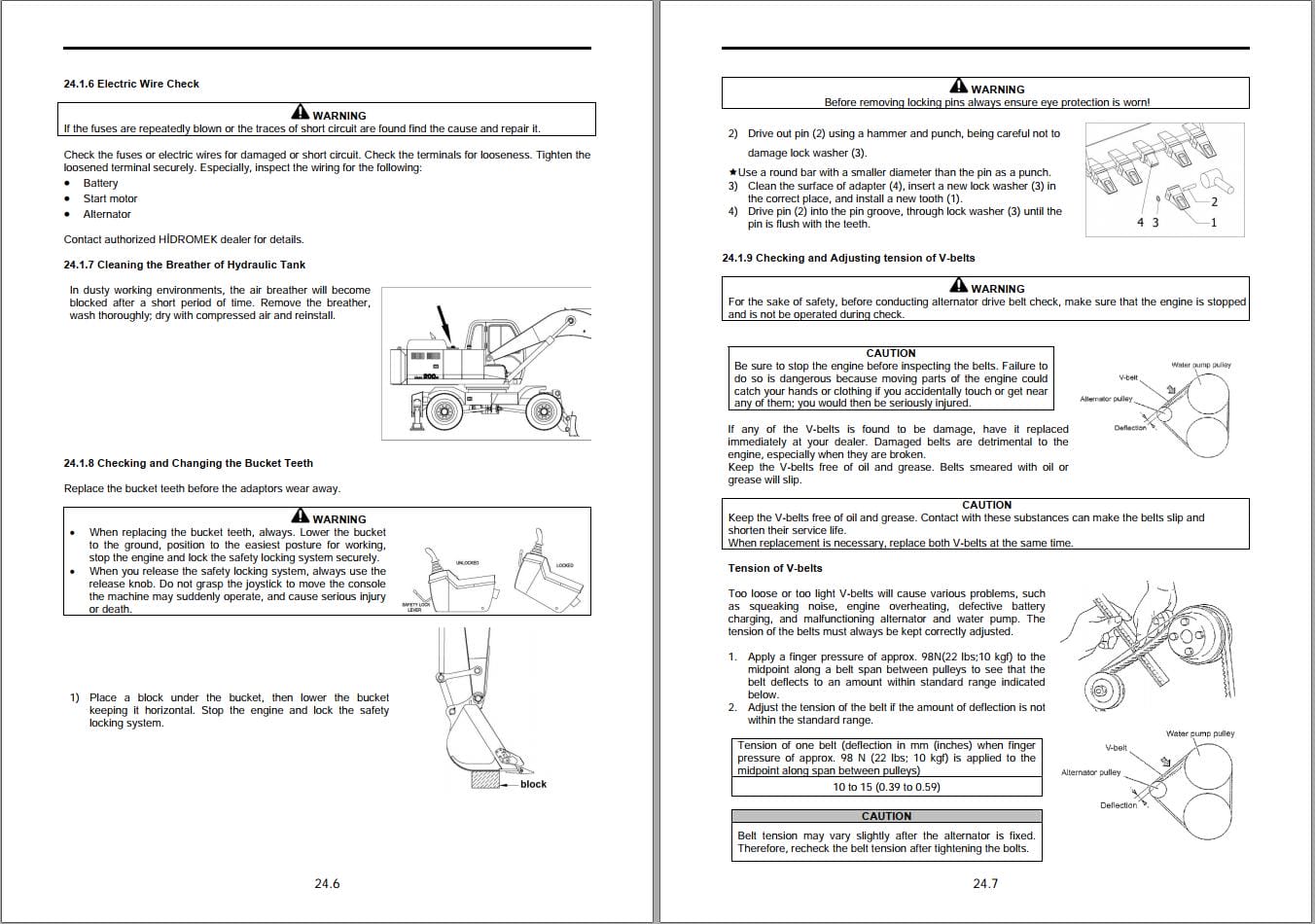

Hidromek Excavator HMK140W Operation Maintenance Manual H207312000 EN

Description

Contents:
[GENERAL]
1. Forewood
2. Safety information
3. General information
3.1 Specified working
3.2 Ce marking and declaration of conformity
3.3 Characteristics of the machine
3.4 Breaking-in operation
4. Driving license
5. Decal
5.1 Machine name plate position
5.2 Engine name plate
5.3 Main components plate’s
[SAFETY]
6. General cautions
7. Cautions on operating
7.1 Before starting the engine
7.2 After starting engine
7.3 Hand signals
7.4 Transporting
7.5 Battery
7.6 Towing
7.7 Lifting objects
8. Caution on maintenance
8.1 Before maintenance
8.2 Under maintenance
9. Attached positions safety label
9.1 Attached positions
9.2 Contents of safety decal
10. Name of each part
10.1 Location of main parts
10.2 Detail of operator’s cab
11. Description of each device
11.1 Instrument panel
11.2 Menu items
11.3 Switches
11.4 Lighter
11.5 Start switch
11.6 Throttle control dial
11.7 Steering
11.8 Levers
11.9 Swing lock pin
11.10 Accelarator and brake pedals
11.11 Safety locking device
11.12 Beacon switch (optional)
11.13 Control switch
11.14 Heater and air condition
11.15 Fuse box
11.16 External power socket
11.17 Battery relay
11.18 Fuel supply pump
11.19 Front windshield
11.20 Door lock system and fire extinguisher
11.21 Handling of accumulator
11.22 Hour meter
12. Operating the machine
12.1 Check before starting the engine
12.2 Starting the engine
12.3 Starting the machine
12.4 Travel direction control
12.5 Swinging the machine
12.6 Operating attachments
12.7 Operating dozer blade and outriggers
12.8 Cruise function
12.9 Prohibitions during operation
12.10 Cautions during operation
12.11 Cautions when traveling on a slope
12.12 Additional works using hydraulic excavators
12.13 Lifting
12.14 Replacing bucket
12.15 Checks after finishing work
12.16 Stopping the engine
12.17 Checks after stopping the engine
12.18 Locking system
13. Transportation
13.1 Loading and unloading
13.2 Cautions on loading
13.3 Cautions on transportation
13.4 Lifting machine
13.5 Sea transport
14. Handling the tires
14.1 Tire changing procedure
14.2 Tire rotation
15. Preparation for weather conditions
15.1 Preparation for cold weather
15.2 Cautions after finishing work
15.3 Hot weather
16. Long term storage
16.1 Before storage
16.2 While in storage
16.3 After storage
17. Troubleshooting
17.1 Suspected trouble phenomena
17.2 Towing method
17.3 Usage to towing hole for light objects
17.4 Cautions under special circumstances
17.5 Electric discharge
17.6 Poor battery charging
17.7 Overheating
17.8 Abnormal (low) oil pressure
17.9 Bleeding the fuel system
17.10 Engine
17.11 Hydraulic system
17.12 Electric system
17.13 Other troubles
[INSPECTION AND MAINTENANCE]
18. Cautions in maintenance
19. General maintenance
19.1 Oil, fuel and coolant
19.2 Electronic parts
19.3 Hydraulic units
20. Consumable parts
21. Fuel and lubrication usage according to temperature
21.1 Fuel, coolant and lubrication
21.2 Recommended lubrication oil
21.3 Recommended fuel
21.4 Coolant
22. Periodic replacement of main parts
23. Inspection and maintenance list
23.1 Maintenance lists according to replacing time
24. Periodic inspection and maintenance
24.1 Every 10 hours (before starting)
24.2 Every 50 hours (weekly service)
24.3 First 250 hours
24.4 Every 250 hours (monthly service)
24.5 Every 500 hours (3 months service)
24.6 Every 1000 hours (6 months service)
24.7 Every 2000 hours (annually service)
24.8 When required
[SPECIFICATIONS]
25. Specifications
25.1 Dimensions
25.2 Specifications and performance
25.3 Working range
25.4 Sound and vibration levels
25.5 Lifting capacity
[WORKING EQUIPMENT AND OPTIONAL ATTACHMENTS]
26. General precautions
26.1 Safety
26.2 Caution when fitting the working equipment
26.3 Attachment selection
26.4 Protection against falling or flying objects
27. Hydraulic breaker
27.1 Mainly available works
27.2 Incorrect methods
27.3 Flow adjustment for breaker
27.4 Maintenance for breaker
28. Quick coupling attachment (option)
29. Optional attachment 2
30. Name index
