Hitachi Hydraulic Excavator ZX120-7 ZX135US-7 Engine Parts Catalog PDA350-EG1-2 JP EN

Size: 3.93 MB

Format: PDF

Language: Japanese, English

Brand: Hitachi

Type of Machine: Hydraulic Excavator

Type of Manual: Engine Parts Catalog

Model: Hitachi ZX120-7, ZX135US-7 Hydraulic Excavator

Serial Number: 090001～, 150001～

Applicable Model:

ZX120-7, ZX130-7, ZX130-7 (DRM), ZX130K-7, ZX130LCN-7,

ZX130LCN-7 (DRM), ZX135US-7, ZX135US-7, ZX135US-7 (DRM),

ZX135USK-7, ZX120-7(CN), ZX130-7(CN), ZX130-7(D-CN),

ZX130LCN-7(CN), ZX130LCN-7(D-CN), ZX135US-7(CN),

ZX135US-7(CN), ZX135US-7(D-CN)

Part Number: PDA350-EG1-2

Number of Pages: 136 Pages

20 USD

Tags: Hitachi Engine Parts Catalog, Hitachi Hydraulic Excavator Manual, ZX120-7, ZX135US-7

Description

Description

Contents:
COVER
MEMORANDUM
FOREWORD
CONTENTS
ENGINE ASSY (1/4)
ENGINE ASSY (2/4)
ENGINE ASSY (3/4)
ENGINE ASSY (4/4)
CYLINDER HEAD (1/3)
CYLINDER HEAD (2/3)
CYLINDER HEAD (3/3)
CYLINDER BLOCK (1/4)
CYLINDER BLOCK (2/4)
CYLINDER BLOCK (3/4)
CYLINDER BLOCK (4/4)
TIMING GEAR COVER AND ENDPLATE (1/4)
TIMING GEAR COVER AND ENDPLATE (2/4)
TIMING GEAR COVER AND ENDPLATE (3/4)
TIMING GEAR COVER AND ENDPLATE (4/4)
MOUNTING
VENTILATION HOSE

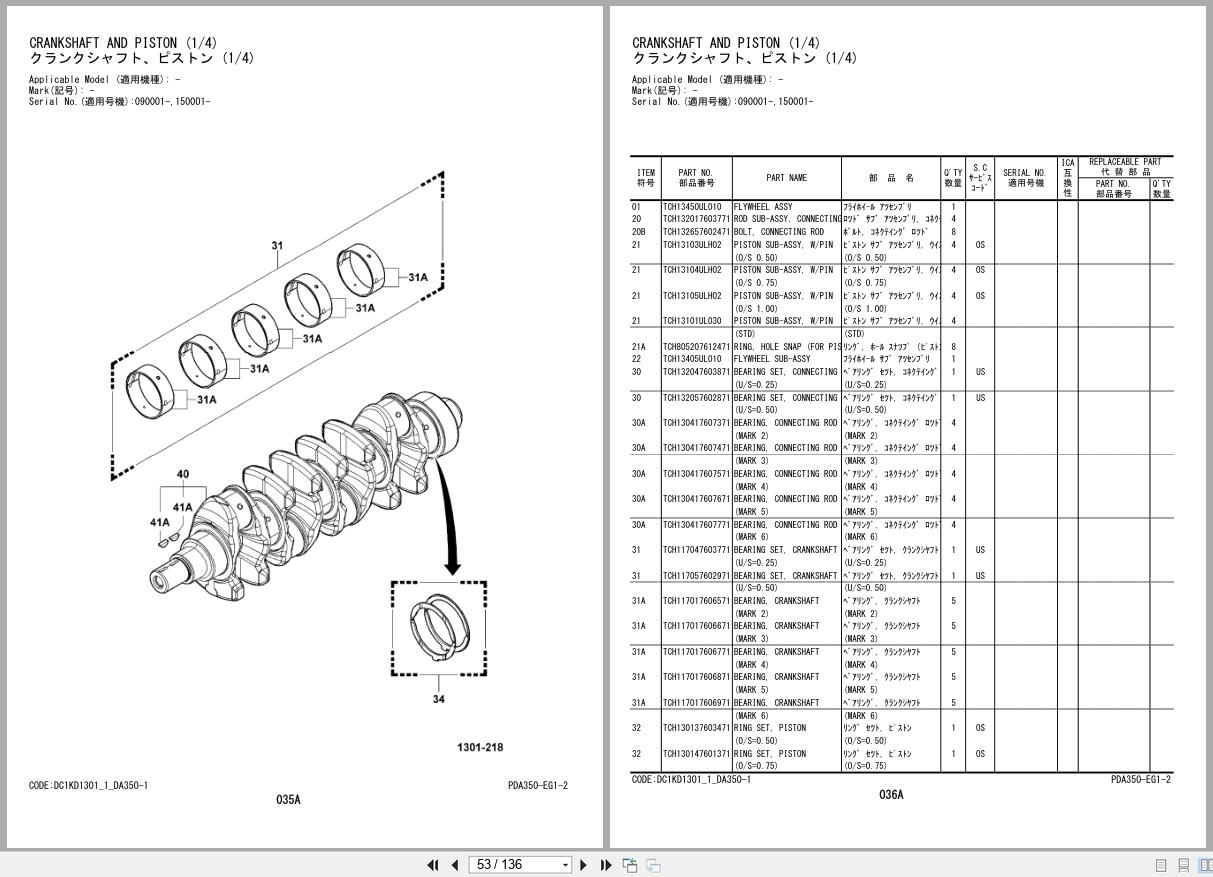

CRANKSHAFT AND PISTON (1/4)
CRANKSHAFT AND PISTON (2/4)
CRANKSHAFT AND PISTON (3/4)
CRANKSHAFT AND PISTON (4/4)
CAMSHAFT AND VALVE
TIMING CHAIN (1/3)
TIMING CHAIN (2/3)
TIMING CHAIN (3/3)
OIL PUMP
OIL FILTER (1/2)
OIL FILTER (2/2)
OIL COOLER
WATER PUMP
RADIATOR AND WATER OUTLET(1/4)
RADIATOR AND WATER OUTLET(2/4)
RADIATOR AND WATER OUTLET(3/4)
RADIATOR AND WATER OUTLET(4/4)
MANIFOLD (1/4)
MANIFOLD (2/4)
MANIFOLD (3/4)
MANIFOLD (4/4)
IGNITION COIL AND SPARK PLUG
ALTERNATOR
STARTER
CONTROLLER
AIR GOVERNOR
INJECTION NOZZLE
INJECTION PUMP ASSY (1/2)
INJECTION PUMP ASSY (2/2)
VENTURI
WIRING AND CLAMP
METER AND SWITCH (1/2)
METER AND SWITCH (2/2)
AIR CONDITIONOR
PARTS INDEX
