Name: Hitachi Wheel Loader LX120-2 Parts Catalog EP41F-1-1 EN JP
SKU: 402057
Availability: InStock

Hitachi Wheel Loader LX120 2 Parts Catalog EP41F 1 1 EN JP

✓

Expert Support

✓

Full Speed

✓

100% Working

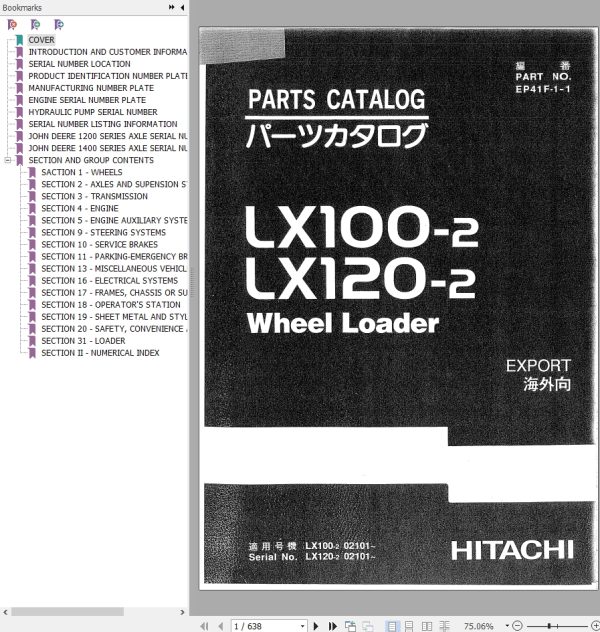

Hitachi Wheel Loader LX120-2 Parts Catalog EP41F-1-1 EN JP

Size: 21.0 MB

Format: PDF

Language: English, Japanese

Brand: Hitachi

Type of Machine: Wheel Loader

Type of Manual: Parts Catalog

Model: Hitachi LX120-2 Wheel Loader

Serial Number: 02101 and up

Part Number: EP41F-1-1

Number of Pages: 638 Pages

30 USD

Tag: hitachi

Description

Description

Contents:
Saction 1 – Wheels
Section 2 – Axles And Supension Systems
Section 3 – Transmission
Section 4 – Engine
Section 5 – Engine Auxiliary Systems
Section 9 – Steering Systems
Section 10 – Service Brakes
Section 11 – Parking-Emergency Brakes
Section 13 – Miscellaneous Vehicle
Section 16 – Electrical Systems
Section 17 – Frames, Chassis Or Supporting Structure

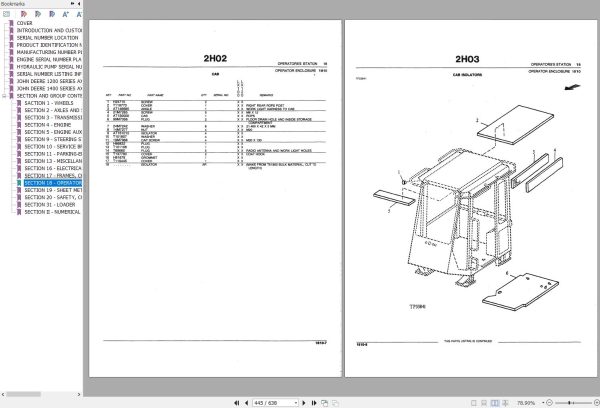

Section 18 – Operators Station
Section 19 – Sheet Metal And Styling
Section 20 – Safety, Convenience And Miscellaneous
Section 31 – Loader
