Hyster Forklift E222 RS46-29CH to R46XLS CH Americas Parts Catalog 4262654 04-2024

Description

Contents:
Frame
FLOORPLATES AND STEPS WITH RH STAIRS
FLOORPLATES AND STEPS WITHOUT RH STAIRS
RAIL AND PLATFORM ASSEMBLY
COVERS
HANDRAILS WITH POWER SLIDING CAB
HANDRAILS WITHOUT POWER SLIDING CAB
STORAGE COMPARTMENT AND RUNNING BOARDS
FENDERS
MIRRORS FRONT FENDER – WITHOUT FULL STROKE POWER SLIDING CAB
MIRRORS FRONT FENDER – WITH FULL STROKE POWER SLIDING CAB
COUNTERWEIGHT
SEAT ASSEMBLY, MECHANICAL SUSPENSION SEAT
SEAT ASSEMBLY, MECHANICAL SUSPENSION
SEAT ASSEMBLY, AIR SUSPENSION DELUXE COVER W/ 3 POINT BELTS
SEAT ASSEMBLY, AIR SUSPENSION DELUXE COVER W/ HIGH VIS BELTS
SEAT ASSEMBLY, AIR SUSPENSION ASSEMBLY, PAGE 1 OF 2
SEAT ASSEMBLY, AIR SUSPENSION ASSEMBLY, PAGE 2 OF 2
SUSPENSION KIT ASSEMBLY
SEAT BACKREST EXTENSION
CAB MOUNTING NON-POWERED SLIDING CAB
CAB MOUNTING POWERED SLIDING CAB
MANIFOLD ASSEMBLY POWERED SLIDING CAB
CAB ATTACHING PARTS PAGE 1 OF 4
CAB ATTACHING PARTS PAGE 2 OF 4
CAB ATTACHING PARTS PAGE 3 OF 4
CAB ATTACHING PARTS PAGE 4 OF 4
CAB DOOR LH
CAB DOOR RH
CAB MAIN DOOR WINDOW RH AND LH
CAB MAIN DOOR WINDOW RIGHT AND LEFT HAND – ALTERNATE CONFIGURATION
CAB WINDOWS INSTALLATION
WINDOW WIPER SYSTEM WASHER BOTTLE KIT – CLOSED CAB ONLY
WINDOW WIPER SYSTEM REAR AND ROOF WIPER KITS – AND FRONT WIPER OPTIONS
CAB FLOORMATS
DASH ASSEMBLY
DASH ASSEMBLY WITH TELEMETRY
ARMREST ASSEMBLY
PIVOT ARM ASSEMBLY
POWER SLIDING CAB OPERATOR ACCESSORIES CAB WITH HEATER
POWER SLIDING CAB OPERATOR ACCESSORIES CAB WITH AIR CONDITIONER
AIR HORN AND COMPRESSOR
COMPRESSOR BOX
BUZZER AND COVER
HEATER HOSES TIER 3 ENGINE
HEATER HOSES TIER 4(F) ENGINE
AIR CONDITIONER AND CONTROL PANEL ASSEMBLY MANUAL 24V
AIR CONDITIONER ASSEMBLY MANUAL 24V
HEATER AND AIR DUCT
AIR DUCT ASSEMBLY HEATER
HEATER AND CONTROL PANEL ASSEMBLY
HEATER ASSEMBLY 24V
AIR DUCT ASSEMBLY AIR CONDITIONING – CAB WITH AIRCO
AIR CONDITIONER SYSTEM WITH BACK MOUNTED CONDENSER
CONDENSER ASSEMBLY 24V
AIR CONDITIONING HOSES AND COMPRESSOR TIER 3 AND 4(F) ENGINES
LABELS SWITCHES
LABELS TRUCK
ENGINE ASSEMBLY – TIER 3 ENGINE
EXHAUST SYSTEM
COOLING SYSTEM PAGE 1 OF 2
COOLING SYSTEM PAGE 2 OF 2
COOLER ASSEMBLY
ENGINE MOUNTING
ACCESSORY DRIVE PULLEY
AIR CLEANER PLUMBING
BREATHER PLUMBING
CAM FOLLOWER LEVERS
CAMSHAFT
COMPRESSOR MOUNTING
COOLANT HEATER STARTING AID
CORROSION RESISTOR
CRANKSHAFT
CRANKSHAFT MAIN BEARINGS
CYLINDER BLOCK
CYLINDER BLOCK PLUMBING
CYLINDER HEAD
ENGINE OIL FILL
EXHAUST MANIFOLD
EXHAUST OUTLET CONNECTION
FAN DRIVE AND SPACER
FLYWHEEL HOUSING
FLYWHEEL
FRONT DRIVE TRAIN
FRONT ENGINE SUPPORT
FRONT GEAR COVER
GEAR HOUSING
IDLER GEAR
INTAKE CONNECTOR AIR COMPRESSOR
LIFTING BRACKET
OIL COOLER WATER PLUMBING
OIL LEVEL GAUGE
OIL FILLER
OIL FILTER
OIL COOLER AND FILTER HEAD ADAPTER
OIL PAN
OIL PUMP AND ATTACHING PARTS
PISTON AND CONNECTING ROD
RADIATOR PLUMBING
ROCKER LEVER HOUSING
THERMOSTAT
THERMOSTAT HOUSING
TURBOCHARGER
TURBOCHARGER PLUMBING
VALVE COVER
VIBRATION DAMPER
WATER PUMP
ENGINE ASSEMBLY – TIER 4(F) ENGINE
EXHAUST SYSTEM
EXHAUST PIPE DRT
COOLING SYSTEM PAGE 1 OF 2
COOLING SYSTEM PAGE 2 OF 2
COOLER ASSEMBLY
ENGINE MOUNTING
ACCESSORY DRIVE PULLEY
AIR TRANSFER CONNECTION
BELT TENSIONER
BREATHER PLUMBING
CABIN HEATER PLUMBING
CAMSHAFT AND TIMING GEAR
CONNECTING RODS AND PISTONS
CRANKSHAFT AND BEARINGS
CYLINDER BLOCK
CYLINDER BLOCK COVER
CYLINDER HEAD
CYLINDER HEAD PLUMBING
ENGINE COOLANT PLUMBING
ENGINE SUPPORT
EXHAUST MANIFOLD
EXHAUST RECIRCULATION
EXHAUST RECIRCULATION WATER PLUMBING
EXHAUST RECIRCULATION AIR PLUMBING
FAN DRIVE AND MOUNTING
FLYWHEEL HOUSING
FLYWHEEL
FRONT GEAR COVER
FRONT GEAR TRAIN ACCESSORY MOUNTING
GEAR HOUSING
HEAT SHIELD
INTAKE MANIFOLD
LIFTING BRACKETS
OIL COOLER
OIL LEVEL GAUGE
OIL FILTER
OIL PAN
OIL PUMP
PLUG, COOLANT HEATER STARTING AID
PLUG, CYLINDER BLOCK COOLANT PLUMBING
PLUG, TORQUE CONVERTER OIL COOLER
REMOTE OIL FILTER ATTACHING PARTS
ROCKER LEVERS
THERMOSTAT
TURBOCHARGER
TURBOCHARGER WATER PLUMBING
VALVE COVER
VALVE TAPPET
VIBRATION DAMPER
WATER PUMP AND OUTLET
MUFFLER/CATALYTIC CONVERTER ASSEMBLY DOC
MUFFLER/CATALYTIC CONVERTER ASSEMBLY SCR
FUEL SYSTEM – TIER 3 ENGINE
FUEL TANK
FUEL HOSES
AIR INTAKE SYSTEM
AIR FILTER ASSEMBLY
PEDAL LINKAGE FORWARD/REVERSE LEVER
THROTTLE AND INCHING SENSORS
AIR INTAKE HOSE
AIR INTAKE CONNECTION
AIR TRANSFER CONNECTION
AIR INTAKE MANIFOLD
FUEL PUMP ASSEMBLY
FUEL PUMP COUPLING
FUEL PUMP DRIVE
FUEL PUMP INTAKE FITTING
FUEL PUMP PLUMBING
FUEL FILTER
FUEL FILTER PLUMBING
FUEL INJECTOR
FUEL FILTER WIF
FUEL SYSTEM – TIER 4(F) ENGINE
FUEL TANK
FUEL HOSES
DEF SYSTEM
DEF SYSTEM
DEF TANK ASSEMBLY
DEF TANK ASSEMBLY
DEF SUPPLY MODULE
DEF HOSES
AIR INTAKE SYSTEM
PEDAL LINKAGE FORWARD/REVERSE LEVER
THROTTLE AND INCHING SENSORS
AIR INTAKE CONNECTION
AIR INTAKE HOSE
FUEL INJECTOR PLUMBING
FUEL INJECTORS
FUEL PUMP
FUEL PUMP INTAKE FITTING
FUEL PUMP MOUNTING
FUEL DRAIN PLUMBING
FUEL FILTERS
FUEL FILTER PLUMBING
FUEL TRANSFER PUMP
FUEL SUPPLY PLUMBING
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM TIER 3 ENGINE – PAGE 1 OF 2
ELECTRICAL SYSTEM TIER 3 ENGINE – PAGE 2 OF 2
ELECTRICAL SYSTEM TIER 4(F) ENGINE – PAGE 1 OF 2
ELECTRICAL SYSTEM TIER 4(F) ENGINE – PAGE 2 OF 2
CAB HYDRAULIC CONTROLLER
TRANSMISSION CONTROLLER MOUNTING
CAB SIDE CONSOLE
COLOR DISPLAY
CONTROL PANEL ASSEMBLY HEATER
CONTROL PANEL ASSEMBLY HEATER AND AIR CONDITIONER
CONTROL PANEL ASSEMBLY CLIMATE CONTROL
WIRE HARNESS ARMREST
WIRE HARNESS BOOM LIGHTS
WIRE HARNESS BOOM LIGHTS, INNER AND OUTER
WIRE HARNESS BOOM VALVES
WIRE HARNESS CAB UNDERFLOOR
WIRE HARNESS CAB SIDE CONSOLE – PAGE 1 OF 5
WIRE HARNESS CAB SIDE CONSOLE – PAGE 2 OF 5
WIRE HARNESS CAB SIDE CONSOLE – PAGE 3 OF 5
WIRE HARNESS CAB SIDE CONSOLE – PAGE 4 OF 5
WIRE HARNESS CAB SIDE CONSOLE – PAGE 5 OF 5
WIRE HARNESS CAN DISPLAY
WIRE HARNESS CHASSIS – PAGE 1 OF 2
WIRE HARNESS CHASSIS – PAGE 2 OF 2
WIRE HARNESS CLOSED CAB
WIRE HARNESS CONTAINER HANDLER BOOM EXTENSION
WIRE HARNESS COOLANT LEVEL SWITCH – TIER 3 ENGINE
WIRE HARNESS COOLANT LEVEL SWITCH – TIER 4(F) ENGINE
WIRE HARNESS EAS/ECM – TIER 4(F) ENGINE
WIRE HARNESS ECM ADAPTER – TIER 3 ENGINE
WIRE HARNESS ECO/ELO-HIP
WIRE HARNESS ENGINE
WIRE HARNESS ENGINE COMPARTMENT LIGHT
WIRE HARNESS FRONT LIGHTS
WIRE HARNESS GRID HEATER
WIRE HARNESS HYDRAULICS
WIRE HARNESS PARK BRAKE BUZZER
WIRE HARNESS PDM
WIRE HARNESS POWER SLIDING CAB
WIRE HARNESS PRESSURE SWITCH BASE
WIRE HARNESS PUMP BASE TRUCK
WIRE HARNESS REAR
WIRE HARNESS REAR CAB
WIRE HARNESS REAR VIEW CAMERA
WIRE HARNESS REAR WIPER EXTENSION
WIRE HARNESS SHIELDED CAN BUS
WIRE HARNESS STABILIZER
WIRE HARNESS STABILIZER VALVE
WIRE HARNESS STAIR EXTENSION
WIRE HARNESS STAIR LIGHTS
WIRE HARNESS STEER COLUMN
WIRE HARNESS STOP BUTTON, FRONT
WIRE HARNESS STOP BUTTON, REAR
WIRE HARNESS TELEMETRY – FM1A
WIRE HARNESS TELEMETRY – FM1B
WIRE HARNESS TELEMETRY – FM2A
WIRE HARNESS TRANSMISSION
WIRE HARNESS WIF SENSOR – TIER 3 ENGINE
BUZZER ASSEMBLY TELEMETRY
PROXIMITY SWITCH ASSEMBLY CAB MOUNTING
PROXIMITY SWITCH ASSEMBLY REAR HARNESS
LIGHTS ENGINE COMPARTMENT – HALOGEN
LIGHTS ENGINE COMPARTMENT – LED
LIGHTS FRONT FENDER LIGHT GROUP
LIGHTS TAIL AND BACKUP ALARM
BACK-UP ALARM
LIGHTS WORK – BOOM AND REAR
ALTERNATOR TIER 3 AND TIER 4(F) ENGINE
ALTERNATOR MOUNTING TIER 3 ENGINE
ALTERNATOR MOUNTING TIER 4(F) ENGINE
ALTERNATOR DRIVE PULLEY TIER 3 ENGINE
ENGINE CONTROL MODULE TIER 4(F) ENGINE
ETR CONTROL MODULE WIRING TIER 3 ENGINE
ETR CONTROL MODULE WIRING TIER 4(F) ENGINE
STARTER MOTOR TIER 4(F) ENGINE
STARTER MOTOR AND MOUNTING TIER 3 ENGINE
ENGINE CONTROL SYSTEM TIER 3 ENGINE
INDICATOR DISPLAY AND CONTROLS
WIRE HARNESS SECOND SOCKET
STROBE LIGHT ASSEMBLY
TRANSMISSION
TRANSMISSION MOUNTING
TRANSMISSION ATTACHING PARTS
TRANSMISSION ATTACHING PARTS ALTERNATE CONFIGURATION
DRIVE SHAFT
TRANSMISSION TORQUE CONVERTER HOUSING
TRANSMISSION CASE AND REAR COVER
TRANSMISSION TURBINE SHAFT, STATOR SUPPORT, OIL BAFFLE
TRANSMISSION INPUT DRIVE GEARS
TRANSMISSION PUMP DRIVE
TRANSMISSION TORQUE CONVERTER AND DRIVE PLATE

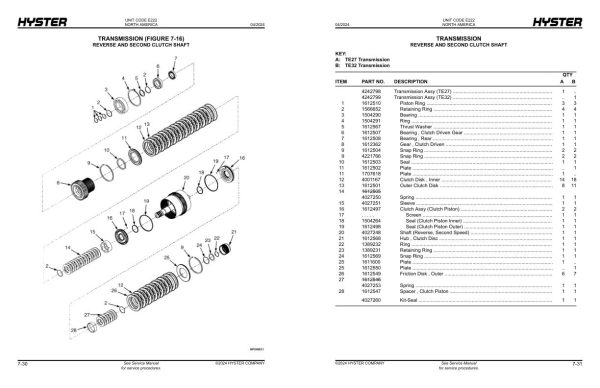

TRANSMISSION FORWARD, REVERSE AND SECOND, – AND THIRD OR FOURTH CLUTCH SHAFTS
TRANSMISSION FIRST SPEED GEARS
TRANSMISSION FORWARD CLUTCH SHAFT
TRANSMISSION THIRD SPEED CLUTCH SHAFT
TRANSMISSION THIRD SPEED GEARS
TRANSMISSION REVERSE AND SECOND CLUTCH SHAFT
TRANSMISSION FIRST SPEED CLUTCH SHAFT
TRANSMISSION FOURTH SPEED CLUTCH SHAFT
TRANSMISSION FIRST SPEED SHAFT AND IDLER GEAR
TRANSMISSION OUTPUT SHAFT
TRANSMISSION REGULATOR VALVE AND HYDRAULIC PUMP
TRANSMISSION REMOTE FILTER AND ADAPTER
TRANSMISSION CONTROL VALVE
TRANSMISSION CONTROL VALVE ATTACHING PARTS
TRANSMISSION REGULATOR VALVE ASSEMBLY
Drive Axle
DRIVE AXLE MOUNTING
DIFFERENTIAL AND CARRIER ASSEMBLY
HUB ASSEMBLY
SERVICE BRAKE ASSEMBLY
PARK BRAKE RETAINER
PARK BRAKE ASSEMBLY
DRIVE WHEELS AND TIRES 18.00 X 25
DRIVE WHEELS AND TIRES 18.00 X 25 – ALTERNATE CONFIGURATION
DRIVE WHEELS AND TIRES 18.00 X 33
STEERING SYSTEM
STEER AXLE AND ATTACHING PARTS
STEER AXLE ASSEMBLY PAGE 1 OF 2
STEER AXLE ASSEMBLY PAGE 2 OF 2
STEER CYLINDER
STEER HOSES
STEER COLUMN ASSEMBLY
STEERING COLUMN
STEERING CONTROL UNIT
STEERING CONTROL VALVE
STEER TIRES AND WHEELS 18.00 X 25
STEER TIRES AND WHEELS 18.00 X 25 – ALTERNATE CONFIGURATION
STEER TIRES AND WHEELS 18.00 X 33
BRAKE SYSTEM
BRAKE MANIFOLD AND ATTACHING BRAKE HOSES
BRAKE ACCUMULATOR AND COMBINATION MANIFOLD
HYDRAULIC TANK AND ATTACHING BRAKE HOSES
COOLER AND ATTACHING BRAKE HOSES
HIGH PRESSURE HYDRAULIC FILTER AND ATTACHING BRAKE HOSES
BRAKE VALVE AND ATTACHING BRAKE HOSES
COMBINATION MANIFOLD AND ATTACHING BRAKE HOSES
BRAKE PEDAL ASSEMBLY
BRAKE PEDAL LINKAGE
HYDRAULIC SYSTEM
HYDRAULIC SYSTEM PAGE 1 OF 3
HYDRAULIC SYSTEM PAGE 2 OF 3
HYDRAULIC SYSTEM PAGE 3 OF 3
HYDRAULIC TANK
HYDRAULIC PUMPS AND ATTACHING PARTS
HYDRAULIC CONTROL VALVES MOUNTING
MAIN CONTROL VALVE ASSEMBLY
COMBINATION MANIFOLD ASSEMBLY PAGE 1 OF 2
COMBINATION MANIFOLD ASSEMBLY PAGE 2 OF 2
STABILZER HYDRAULICS
STABILIZER CYLINDER
STABILIZER VALVE
AUTOMATIC GREASING SYSTEM INNER BOOM WITH SPREADER
AUTOMATIC GREASING SYSTEM BASE TRUCK – PAGE 1 OF 2
AUTOMATIC GREASING SYSTEM BASE TRUCK – PAGE 2 OF 2
AUTOMATIC GREASING PUMP
BLOCK ASSY AND HOSES, TWIN 4-PORT WITH METERING UNIT NUMBER 3 – BOOM REAR
BLOCK ASSY AND HOSES, TWIN 4-PORT WITH METERING UNIT NUMBERS 9 AND 10 – BOOM REAR
HYDRAULIC CONTROLS JOYSTICK – CONTAINER HANDLER
JOYSTICK ASSEMBLY CONTAINER HANDLER
HYDRAULIC MOTOR POWERED SLIDING CAB
Boom
BOOM MOUNTING
BOOM PAGE 1 OF 4
BOOM PAGE 2 OF 4
BOOM PAGE 3 OF 4
BOOM PAGE 4 OF 4
EXTENSION CYLINDER BOOM
LOWERING CONTROL VALVE LOAD HOLDING VALVE – DERRICKING
LOWERING CONTROL VALVE LOAD HOLDING VALVE – TELESCOPING
BOOM DERRICKING CYLINDER MOUNTING
BOOM DERRICKING CYLINDER ASSEMBLY
Attachments
BUMPERS INSET
ELME ATTACHMENT – MODEL 817 – CONTAINER HANDLER
MECHANICAL PARTS MAIN FRAME
MECHANICAL PARTS ROTATOR ASSEMBLY
MECHANICAL PARTS WEAR PADS
MECHANICAL PARTS PENDULAR TWISTLOCK ASSEMBLY
HYDRAULIC PARTS EXTENSION CYLINDER ASSEMBLY
HYDRAULIC PARTS SIDESHIFT CYLINDER ASSEMBLY
HYDRAULIC PARTS POWER DAMPING CYLINDER ASSEMBLY
HYDRAULIC PARTS SWIVEL ASSEMBLY
HYDRAULIC PARTS VALVE ASSEMBLY – ROTATION/BRAKE
HYDRAULIC PARTS VALVE ASSEMBLY – EXTENSION
HYDRAULIC PARTS VALVE ASSEMBLY – SIDESHIFT
HYDRAULIC PARTS VALVE ASSEMBLY – DAMPING
HYDRAULIC PARTS VALVE ASSEMBLY – SWIVEL
HYDRAULIC PARTS HYDRAULIC SYSTEM
HYDRAULIC PARTS MISCELLANEOUS FITTINGS
ELECTRICAL PARTS ELECTRICAL SYSTEM
ADDITIONAL PARTS HOSE CLAMPS – SINGLE, STANDARD
ADDITIONAL PARTS HOSE CLAMPS – SINGLE, RUBBER
ADDITIONAL PARTS HOSE CLAMPS – TWIN
ADDITIONAL PARTS PIN FOR SIDESHIFT, SLEW/REACH, AND DAMPING CYLINDERS
ADDITIONAL PARTS COVER PLATE
ADDITIONAL PARTS PIN FOR DAMPING CYLINDER ON ROTATOR
ADDITIONAL PARTS BRACKET LIGHT ASSEMBLY HARDWARE
ADDITIONAL PARTS BRACKET FOR DEUTSCH CONNECTORS
ADDITIONAL PARTS GREASING HOSES IN ROTATOR TOP
ADDITIONAL PARTS BRACKET FOR HOSES AND CABLES – ON MAIN FRAME
ADDITIONAL PARTS BRACKET FOR HOSES AND CABLES – ON MPS ROTATOR
ELME ATTACHMENT – MODEL 817 – POWER PILE SLOPE
MECHANICAL PARTS MAIN FRAME
MECHANICAL PARTS ROTATOR ASSEMBLY WITH TILT
MECHANICAL PARTS WEAR PADS
MECHANICAL PARTS PENDULAR TWISTLOCK ASSEMBLY
HYDRAULIC PARTS EXTENSION CYLINDER ASSEMBLY
HYDRAULIC PARTS SIDESHIFT CYLINDER ASSEMBLY
HYDRAULIC PARTS POWER DAMPING CYLINDER ASSEMBLY
HYDRAULIC PARTS SWIVEL ASSEMBLY
HYDRAULIC PARTS VALVE ASSEMBLY – ROTATION/BRAKE
HYDRAULIC PARTS VALVE ASSEMBLY – EXTENSION
HYDRAULIC PARTS VALVE ASSEMBLY – SIDESHIFT
HYDRAULIC PARTS VALVE ASSEMBLY – DAMPING
HYDRAULIC PARTS VALVE ASSEMBLY – PPS/TILT
HYDRAULIC PARTS VALVE ASSEMBLY – SWIVEL
HYDRAULIC PARTS HYDRAULIC SYSTEM
HYDRAULIC PARTS MISCELLANEOUS FITTINGS
ELECTRICAL PARTS ELECTRICAL SYSTEM
ADDITIONAL PARTS HOSE CLAMPS – SINGLE, STANDARD
ADDITIONAL PARTS HOSE CLAMPS – SINGLE, RUBBER
ADDITIONAL PARTS HOSE CLAMPS – TWIN
ADDITIONAL PARTS PIN FOR SIDESHIFT, SLEW/REACH, AND DAMPING CYLINDERS
ADDITIONAL PARTS COVER PLATE
ADDITIONAL PARTS PIN FOR DAMPING CYLINDER ON ROTATOR
ADDITIONAL PARTS BRACKET LIGHT ASSEMBLY HARDWARE
ADDITIONAL PARTS BRACKET FOR DEUTSCH CONNECTORS
ADDITIONAL PARTS GREASING HOSES IN ROTATOR TOP
ADDITIONAL PARTS BRACKET FOR HOSES AND CABLES – ON MAIN FRAME
ADDITIONAL PARTS BRACKET FOR HOSES AND CABLES – ON PPS ROTATOR
OPTIONS
AIR DUCT
CAMERA DISPLAY FRONT
CAMERA DISPLAY REAR
CAB RECIRCULATING FAN
CAB SOUND AND THERMAL INSULATION
CAB SUNSHADE REAR
CAB SUNSHADE TOP
CONTROLLER SEAT BELT SEQUENCER
DC-DC CONVERTER AND ATTACHING PARTS
ENGINE BLOCK HEATER 110V
ENGINE BLOCK HEATER 240V
HEATED TOP WINDOW
HYDRAULIC STOP KIT
INSULATION MATS AND AIR DUCT
MAP READING LIGHT
OPTIONAL MOUNTING EQUIPMENT (HANDLE)
RADIO CONSOLE AND ATTACHING PARTS
REAR CAMERA
REAR LOCKING CONSOLE
SECOND 12V SOCKET OPTION
SOUND REDUCTION TIER 3 ENGINE
SOUND REDUCTION TIER 4(F) ENGINE
STAIR LIGHTS LOW MOUNT
TELEMETRY MONITORING AND INTERLOCK
TELEMETRY CARD READER
TELEMETRY HYSTER CHECKLIST
TRAINING SEAT
FIELD SERVICE KITS
ADD-ON OPTION KITS
NUMERICAL INDEX
