Hyster Forklift E470 N35ZR2 N40ZR2 N30ZDR2 Parts Catalog 4075011 04-2024

Description

Contents:
Frame
FLOOR PLATE ADJUSTABLE – SIDE STANCE
FLOOR PLATE ADJUSTABLE – FORWARD STANCE
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, SIDE STANCE – 36V (→ 6/2015)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, SIDE STANCE – 36V (6/2015 ↔ 2/2016)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, SIDE STANCE – 36V (2/2016 →)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, SIDE STANCE – “COMFORT” (→ 6/2015)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, SIDE STANCE – “COMFORT” (6/2015 →)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, FORWARD STANCE – “COMFORT” (→ 6/2015)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, FORWARD STANCE – “COMFORT” (6/2015 →)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, FORWARD STANCE – 36V (→ 6/2015)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, FORWARD STANCE – 36V (6/2015 ↔ 2/2016)
FLOOR PLATE AND HEATER CONTROL (ADJUSTABLE) SUB-ZERO, FORWARD STANCE – 36V (2/2016 →)
COVERS AND PADS SIDE STANCE
COVERS AND PADS FORWARD STANCE
COVERS AND PADS FORWARD STANCE – WITH AFT CONTROL
ARMREST AND BACKREST INSTALLATION
ARMREST AND BACKREST
OPERATOR AND OVERHEAD GUARD
BATTERY RETAINERS AND ROLLERS
DECALS PAGE 1 OF 2
DECALS PAGE 2 OF 2 – SIDE STANCE
DECALS PAGE 2 OF 2 – FORWARD STANCE
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM PAGE 1 OF 2
ELECTRICAL SYSTEM PAGE 2 OF 2
WIRE HARNESS MAIN – 14.5 TO 16.5 INCH BATTERY BOX – PAGE 1 OF 2
WIRE HARNESS MAIN – 14.5 TO 16.5 INCH BATTERY BOX – PAGE 2 OF 2
WIRE HARNESS MAIN – 18.5 TO 21.5 INCH BATTERY BOX – PAGE 1 OF 2
WIRE HARNESS MAIN – 18.5 TO 21.5 INCH BATTERY BOX – PAGE 2 OF 2
WIRE HARNESS FLOORPLATE HEATER
WIRE HARNESS HEATER FREEZER AND ARCTIC (→ 6/2015)
WIRE HARNESS HEATER FREEZER AND ARCTIC (6/2015 →)
WIRE HARNESS APS2 STEERED CASTER
WIRE HARNESS DASH – FORWARD STANCE
WIRE HARNESS SIDE STANCE
WIRE HARNESS LIGHTS OPTIONS
WIRE HARNESS HEADLIGHTS
JUMPER HARNESS DISPLAY – SIDE STANCE
HANDLE GRIP ASSEMBLY

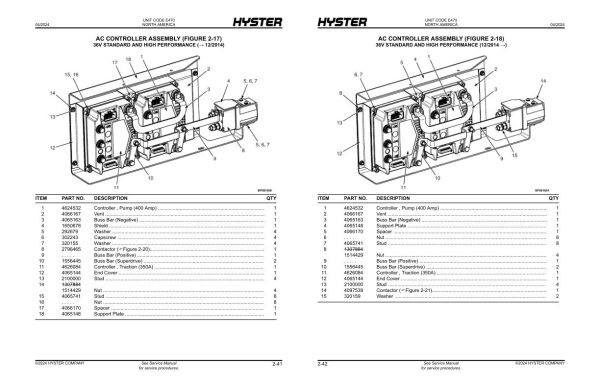

AC CONTROLLER ASSEMBLY 36V STANDARD AND HIGH PERFORMANCE (→ 12/2014)
AC CONTROLLER ASSEMBLY 36V STANDARD AND HIGH PERFORMANCE (12/2014 →)
AC CONTROLLER ASSEMBLY 36V “EE”
CONTACTOR
CONTACTOR
DASH DISPLAY FORWARD STANCE
DASH DISPLAY SIDE STANCE
MDU COMPARTMENT DOOR AND FAN
CONTROLLER CAN I/O AND EPS
FUSE BOARD 36V WITH 12V AND 24V REGULATORS
POWER CABLES TRACTION AND LIFT
POWER CABLES TRACTION AND LIFT – ALTERNATE CONFIGURATION
DIODE ASSEMBLY 36V IFB PROTECTION
BATTERY CONNECTOR
MULTI-FUNCTION CONTROL HANDLE ASSEMBLY
MULTI-FUNCTION CONTROL HANDLE MULTI-AXIS CONTROLLER
MULTI-FUNCTION CONTROL HANDLE CAGE
MULTI-FUNCTION CONTROL HANDLE HANDLE
MULTI-FUNCTION CONTROL HANDLE HORN
MULTI-FUNCTION CONTROL HANDLE LEVER
MULTI-FUNCTION CONTROL HANDLE MINI-JOYSTICK
MULTI-FUNCTION CONTROL HANDLE SPRING PLATE ASSEMBLY
MULTI-FUNCTION CONTROL HANDLE CONTROLLER KIT
MULTI-FUNCTION CONTROL HANDLE PALM GRIP KIT
WIRE HARNESS TELEMETRY OPTIONS – DISPLAY, UPPER (→ 5/2020)
WIRE HARNESS TELEMETRY – UPPER DISPLAY (5/2020 →)
WIRE HARNESS TELEMETRY OPTIONS – DISPLAY, LOWER (→ 5/2020)
WIRE HARNESS TELEMETRY – LOWER DISPLAY (5/2020 →)
WIRE HARNESS TELEMETRY OPTIONS – POWER (→ 5/2020)
WIRE HARNESS TELEMETRY OPTIONS – POWER (5/2020 →)
WIRE HARNESS TELEMETRY OPTIONS – INTERLOCK (→ 5/2020)
WIRE HARNESS TELEMETRY – INTERLOCK (5/2020 →)
WIRE HARNESS SINGLE REACH
CONTROL HANDLE
BUZZER ASSEMBLY
DRIVE UNIT
TRACTION MOTOR ASSEMBLY
TRACTION MOTOR INSTALLATION
TRACTION MOTOR ASSEMBLY PAGE 1 OF 6 (11/2014 →)
TRACTION MOTOR ASSEMBLY PAGE 2 OF 6 (11/2014 →)
TRACTION MOTOR ASSEMBLY PAGE 3 OF 6 (11/2014 →)
TRACTION MOTOR ASSEMBLY PAGE 4 OF 6 (11/2014 →)
TRACTION MOTOR ASSEMBLY PAGE 5 OF 6 (11/2014 →)
TRACTION MOTOR ASSEMBLY PAGE 6 OF 6 (11/2014 →)
DRIVE WHEEL AND TIRE
MASTER DRIVE UNIT ASSEMBLY AND ATTACHING PARTS
MASTER DRIVE UNIT STEERING PARTS (→ S/N E470N01511L)
MASTER DRIVE UNIT HOUSING (→ S/N E470N01511L)
MASTER DRIVE UNIT DRIVE (→ S/N E470N01511L)
MASTER DRIVE UNIT OUTPUT (→ S/N E470N01511L)
MASTER DRIVE UNIT TURNTABLE BEARING (→ S/N E470N01511L)
MASTER DRIVE UNIT ASSEMBLY AND ATTACHING PARTS
MASTER DRIVE UNIT STEERING PARTS (S/N E470N01512L →)
MASTER DRIVE UNIT HOUSING (S/N E470N01512L →)
MASTER DRIVE UNIT DRIVE (S/N E470N01512L →)
MASTER DRIVE UNIT OUTPUT (S/N E470N01512L →)
MASTER DRIVE UNIT TURNTABLE BEARING (S/N E470N01512L →)
STEERING SYSTEM
CASTER WHEEL ASSEMBLY STEERED – 14.5″ AND 16.5″ BATTERY COMPARTMENT
CASTER WHEEL ASSEMBLY NON-STEERED – 14.5″ AND 16.5″ BATTERY COMPARTMENT
CASTER WHEEL SUSPENSION NON-STEERED
CASTER WHEEL SUSPENSION STEERED (→ 2/2016)
CASTER WHEEL SUSPENSION STEERED (2/2016 →)
STEER MOTOR ASSEMBLY
STEER MOTOR INSTALLATION AND PROXIMITY SENSOR
STEERING ASSEMBLY SIDE STANCE
STEERING ASSEMBLY FORWARD STANCE
STEERING ASSEMBLY SIDE STANCE – FIXED
STEERING ASSEMBLY ATTACHING PARTS SIDE STANCE
STEERING ASSEMBLY ATTACHING PARTS FORWARD STANCE
STEER CONTROLLER AND POWER CABLES
BRAKE/ACCELERATOR SYSTEM
BRAKE ASSEMBLY
Load Wheel
LOAD WHEEL ASSEMBLY
HYDRAULIC SYSTEM
HYDRAULIC ARRANGEMENT PAGE 1 OF 2
HYDRAULIC ARRANGEMENT PAGE 2 OF 2
HYDRAULIC TANK ASSEMBLY
LIFT PUMP AND MOTOR MOUNTING WITH STANDARD AND HIGH PERFORMANCE LIFT MOTORS
LIFT PUMP AND MOTOR MOUNTING WITH 24V/36V LIFT MOTOR
LIFT PUMP AND MOTOR MOUNTING WITH “EE” LIFT MOTOR
LIFT PUMP ASSEMBLY
LIFT MOTOR ASSEMBLY STANDARD AND HIGH PERFORMANCE
LIFT MOTOR ASSEMBLY 24V/36V
LIFT MOTOR ASSEMBLY “EE”
AUXILIARY PUMP AND MOTOR ASSEMBLY
ATTACHMENT SELECTOR VALVE SINGLE REACH
ATTACHMENT SELECTOR VALVE DOUBLE REACH
HYDRAULIC HOSES SINGLE REACH
HYDRAULIC HOSES DOUBLE REACH
MAST-THREE STAGE
MAST INSTALLATION
MAST CONNECTION
OUTER, INTERMEDIATE, AND INNER MAST
MAIN LIFT
MAIN LIFT CYLINDER ASSEMBLY
FREE-LIFT
FREE-LIFT CYLINDER ASSEMBLY
FREE-LIFT CYLINDER ASSEMBLY
FREE-LIFT CYLINDER ASSEMBLY ALTERNATE PART
ATTACHMENT HOSES
ATTACHMENT CABLE
ATTACHMENT CABLE ALTERNATE CONFIGURATION
SHEAVES
DRIP SHIELD
Carriage
LOAD BACKREST
FORKS
ATTACHMENTS SINGLE REACH
WIRE HARNESS AND HYDRAULIC HOSES SINGLE REACH
CHAIN GUARD SINGLE REACH
SCISSOR SINGLE REACH
ATTACHMENTS DOUBLE REACH
WIRE HARNESS AND HYDRAULIC HOSES DOUBLE REACH
CHAIN GUARD DOUBLE REACH
SCISSOR DOUBLE REACH
SENSOR ASSEMBLY REDUCED TRAVEL SPEED – FOR EXTENDED CARRIAGE
REACH CYLINDER
REAR FRAME
FRONT FRAME SIDE-SHIFT AND TILT CARRIAGES
COUNTERBALANCE VALVE WITHOUT SIDESHIFT
COUNTERBALANCE VALVE WITH SIDESHIFT
ATTACHMENT VALVE AND HOSES
OPTIONS
HEIGHT SENSOR MOUNTING
HEIGHT SENSOR ASSEMBLY
RF TERMINAL BRACKET
RF HOLSTER AND 12V RECEPTACLE
OPERATOR COMPARTMENT LIGHT
BATTERY STAND AND PULLER
AUDIBLE ALARM
CASTER WHEEL BUMPERS
TILT SENSOR
HEADLIGHTS
STROBE LIGHT/ WORKLIGHT
FAN ASSEMBLY AND ATTACHING PARTS
LASER ASSEMBLY
FORK CAMERA OPTION MODULE ASSEMBLY
FORK CAMERA ASSEMBLY SHEET 1 OF 2
FORK CAMERA ASSEMBLY SHEET 2 OF 2
IMPACT SENSOR
RF TERMINAL CONNECTION ASSEMBLY
LEXAN GUARD
WIRE MESH ROOF PROTECTION INSTALLATION
TELEMETRY OPTIONS SIDE-STANCE
TELEMETRY OPTIONS FORE-AFT
TELEMETRY OPTIONS BUZZER ASSEMBLY
TELEMETRY OPTIONS VAM – CDMA AND GSM/WIFI
TELEMETRY OPTIONS INTERLOCK
TELEMETRY OPTIONS HYSTER DISPLAY
TELEMETRY DISPLAY ASSEMBLY
TELEMETRY OPTIONS CARD READER
FIELD SERVICE KITS
TELEMETRY KITS
FAN ADAPTER MODIFICATION KIT
NUMERICAL INDEX
