Hyundai Forklift 7 Series 50D-7A 60D-7A 70D-7A Spare Parts Catalog

Description

Contents:
ENGINE MOUNTING
AIR INTAKE SYSTEM
EXHAUST SYSTEM
COOLING SYSTEM
RADIATOR TOTAL ASSY
FUEL SYSTEM
AIRCON & HEATER(OPT)
AIRCON HVAC UNIT
ELECTRIC (1_2)
ELECTRIC (2_2)
CONSOLE ELECTRIC (1_2)

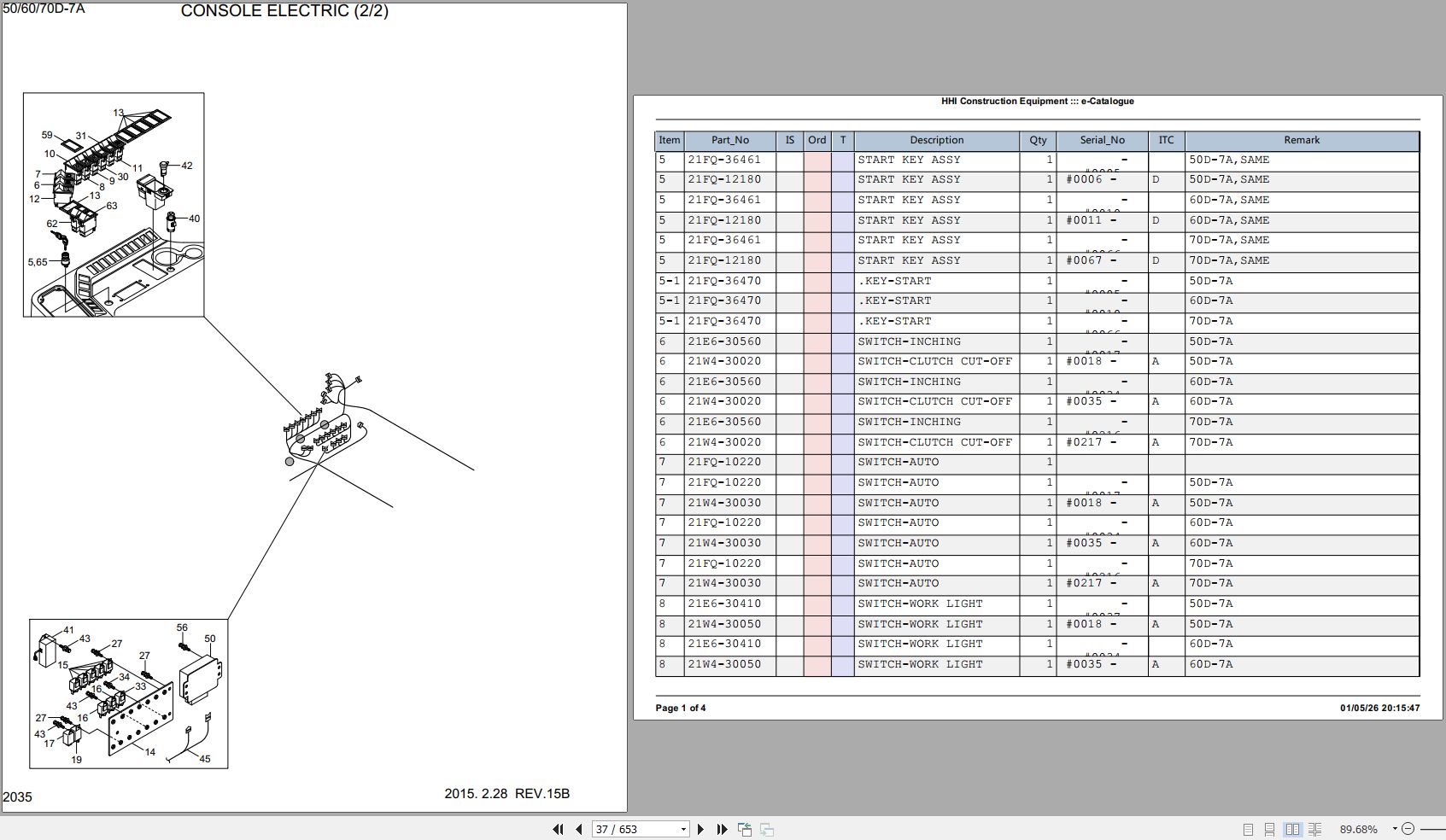

CONSOLE ELECTRIC (2_2)
CONSOLE HARNESS
FRAME HARNESS
TRANSMISSION HARNESS
CABIN ELECTRIC

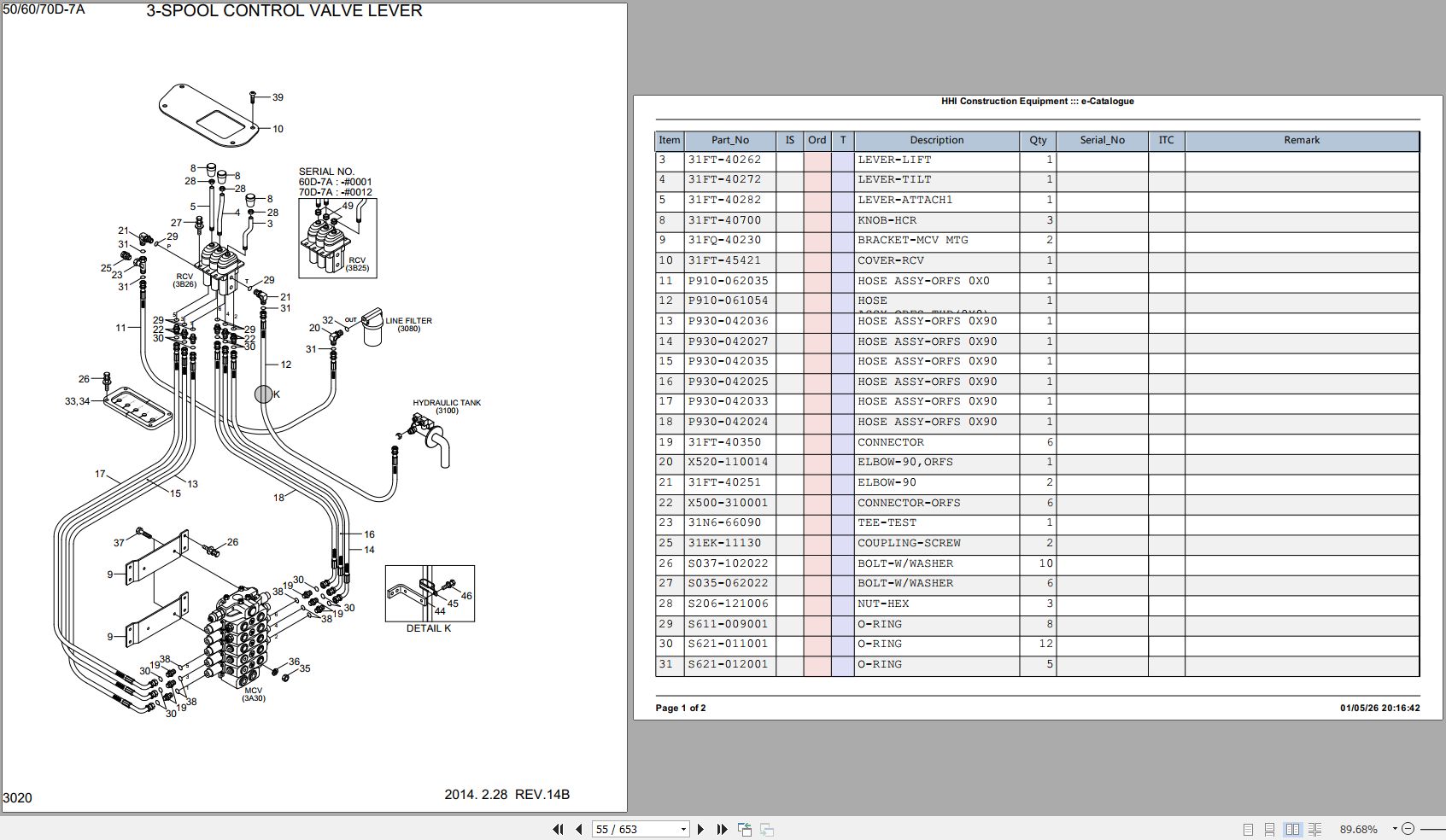

2-SPOOL CONTROL VALVE LEVER
3-SPOOL CONTROL VALVE LEVER
4-SPOOL CONTROL VALVE LEVER
5-SPOOL CONTROL VALVE LEVER
MAIN HYDRAULIC PIPING
TILT HYDRAULIC PIPING
STEERING HYDRAULIC PIPING
STEERING SUB HYDRAULIC PIPING
BRAKE HYDRAULIC PIPING
BRAKE SUB HYDRAULIC PIPING
T_M COOLING SYSTEM
AXLE COOLING SYSTEM
HYDRAULIC TANK SUB
CAB TILT HYDRAULIC PIPING
CAB TILT HYDRAULIC PIPING_1
HYDRAULIC PUMP
HYDRAULIC PUMP_1
MCV(2-SPOOL)
MCV(2-SPOOL)_1
MCV(3-SPOOL)
MCV(3-SPOOL)_1
MCV(4-SPOOL)
MCV(4-SPOOL)_1
MCV(5-SPOOL)
MCV(5-SPOOL)_1
LIFT BLOCK ASSY
TILT BLOCK ASSY
AUX BLOCK ASSY
PRIORITY VALVE
CUT OFF VALVE
BRAKE VALVE
STEERING UNIT
REMOTE CONTROL VALVE(2-SPOOL,OLD)
REMOTE CONTROL VALVE(2-SPOOL.NEW)
REMOTE CONTROL VALVE(3-SPOOL.OLD)
REMOTE CONTROL VALVE(3-SPOOL,NEW)
REMOTE CONTROL VALVE(4-SPOOL,OLD)
REMOTE CONTROL VALVE(4-SPOOL,NEW)
REMOTE CONTROL VALVE(5-SPOOL,OLD)
REMOTE CONTROL VALVE(5-SPOOL,NEW)
STEERING CYLINDER
TILT CYLINDER
DOWN CONTROL VALVE
LIFT BLOCK ASSY_1
TILT BLOCK ASSY_1
AUX BLOCK ASSY_1
ENGINE CONNECTOR
CONVERTER
INPUT(KR, REVERSE)
GEARBOX HOUSING 1
GEARBOX HOUSING 2
COUPLING 1(KC, 1 SPEED)
COUPLING 2(KE, 3 SPEED)
COUPLING 3(KD, 2 SPEED)
COUPLING 4(KV, FORWARD)
OUTPUT 1
OUTPUT 2
CONTROL UNIT
PRESSURE OIL PUMP
IND TRANSMITTER
TEMP SENSOR
FILTER
LOOSE PARTS
TRANSMISSION MOUNTING
DRIVE AXLE 1
DRIVE AXLE 2
DRIVE AXLE 3
STEERING AXLE
FRONT & REAR WHEEL
STEERING COLUMN GROUP
STEERING COLUMN ASSY
BRAKE AND INCHING LINKAGE
PARKING BRAKE
FRAME
OUTER PANEL 1
OUTER PANEL 2
SEAT
SEAT(1_2, GRAMMER, STD)
SEAT(2_2, GRAMMER, STD)
HEAD GUARD TOTAL SUB ASSY
HEAD GUARD SUB ASSY
CONSOLE BOX 1
CONSOLE BOX 2
COUNTERWEIGHT
CABIN MOUNTING(CARRIER)
CABIN GROUP (OPT)
CABIN TOTAL SUB ASSY
CABIN SUB 1
CABIN SUB 2
CABIN SUB 3
CABIN SUB 4
CABIN SUB 5
CONSOLE BOX
OUTER MAST(V-MAST)
INNER MAST(V-MAST)
MAST HYDRAULIC PIPING(V-MAST)
CARRIAGE & B_REST (V-MAST, HOOK, 5TON)
CARRIAGE & B_REST (V-MAST,HOOK, 6~7TON)
CARRIAGE & B_REST (V-MAST,SHAFT, 5TON)
CARRIAGE & B_REST (V-MAST,SHAFT, 6~7TON)
CARR & B_REST (V-MAST, SHAFT, 6_7TON, OPT)
INTEGRAL FORK POSITIONER(V-MAST,5TON)
INTEGRAL FORK POSITIONER(V-MAST,6~7TON)
INTEGRAL S_S WITH CARR(V-MAST, 6~7TON)
CARRIAGE & BACKREST(V-MAST, SHAFT, 6~7TON)
INTEGRAL F_POSITIONER(V-MAST, 5TON)
INTEGRAL F_POSITIONER(V-MAST, 6~7TON)
LIFT CYLINDER(V-MAST)
3-SPOOL HYD PIPING(V-MAST)
4-SPOOL HYD PIPING(V-MAST)
5-SPOOL HYDRAULIC PIPING(V-MAST)
OUTER MAST(TF-MAST)
MIDDLE MAST(TF-MAST)
INNER MAST(TF-MAST)
MAST HYD PIPING(TF-MAST)
CARRIAGE & B_REST (TF-MAST,HOOK, 5TON)
CARRIAGE & B_REST (TF-MAST,HOOK, 6~7TON)
CARRIAGE & B_REST (TF-MAST,SHAFT,5TON)
CARRIAGE & B_REST (TF-MAST,SHAFT,6~7TON)
CARR & BACKREST(TF-MAST,SHAFT)
INTEGRAL FORK POSITIONER(TF, 5TON)
INTEGRAL FORK POSITIONER(TF-MAST, 6~7TON)
INTEGRAL FORK POSI-LOW(TF-MAST, 6~7TON)
INTEGRAL F_POSITIONER (TF-MAST, SHAFT)
CARR & BACKREST (TF-MAST, SHAFT, OPTION, 6~7TON)
INT S_SHIFT & CARRIAGE(TF-MAST,6_7TON)
INT S_SHIFT & F_POSITION(TF-MAST, 5TON)
INT S_SHIFT & F_POSITION(TF-MAST, 6_7TON)
LIFT CYLINDER(TF_TS-MAST)
FREE LIFT CYLINDER(TF-MAST)
3-SPOOL HYDRAULIC PIPING(TF-MAST)
4-SPOOL HYD PIPING(TF, H_REEL)
4-SPOOL HYD PIPING(TF, INTERNAL)
5-SPOOL HYD PIPING(TF-MAST)
OUTER MAST(TS-MAST)
MIDDLE MAST(TS-MAST)
INNER MAST(TS-MAST)
MAST HYD PIPING(TS-MAST)
CARR & BACKREST(TS-MAST, SHAFT, 5TON)
CARR & BACKREST(TS-MAST, 6~7TON)
CARRIAGE & B_REST (TS-MAST, HOOK, 5TON)
CARRIAGE & B_REST (TS-MAST,HOOK, 6~7TON)
INTEGRAL FORK POSI-LOW(TS-MAST,6~7TON)
INTEGRAL FORK POSITIONER(TS-MAST,5TON)
INTEGRAL FORK POSITIONER(TS-MAST,6~7TON)
INTEGRAL SIDE SHIFT(TS-MAST,5TON)
INTEGRAL SIDE SHIFT(TS-MAST,6~7TON)
S_SHIFT WITH F_POSITION(TS-MAST, 5TON)
S_SHIFT WITH F_POSITION(TS-MAST, 6~7TON)
DUAL FREE LIFT CYLINDER(TS-MAST)
3-SPOOL HYD PIPING(TS-MAST)
4-SPOOL HYD PIPING(TS-MAST)
5-SPOOL HYD PIPING(TS-MAST)
MAST & TILT PIN MOUNTING
FORKS
FORKS(INTEGRAL FORK POSITIONER)
SIDE SHIFT(CASCADE)
SIDE SHIFT ASSY (JK, 5.0TON)
SIDE SHIFT ASSY (JK, 6.0_7.0TON)
3-SPOOL ATTACH PIPING(V,TF-MAST)
3-SPOOL ATTACH PIPING(TS-MAST)
4-SPOOL ATTACH PIPING(V,TF-MAST)
4-SPOOL ATTACH PIPING(TF, H_REEL)
4-SPOOL ATTACH PIPING(TS-MAST)
5-SPOOL ATTACH PIPING(V-MAST)
5-SPOOL ATTACH PIPING(TF-MAST)
5-SPOOL ATTACH PIPING(TS-MAST)
SIDE SHIFT PIPING(3,4-SPOOL, V-MAST)
SIDE SHIFT PIPING(3,4SPOOL,TF-MAST)
SIDE SHIFT PIPING(4,5-SPOOL, TF-MAST)
SIDE SHIFT PIPING(3,4-SPOOL, TS-MAST)
INT S_SHIFT & CARRIAGE(V, 5TON)
S_SHIFT & F_POSITION(V, 5TON, SYN)
S_SHIFT & CARIAGE(V, 5TON, IND)
INT S_SHIFT & CARRIAGE(V, 6~7TON)
S_SHIFT & F_POSITION (V, 6~7TON, SYN)
S_SHIFT & F_POSITION(V, 6~7TON, IND)
INT S_SHIFT & CARRIAGE(TF, 5TON)
S_SHIFT & F_POSITION(TF, 5TON, SYN)
S_SHIFT & F_POSITION(TF, 5TON, IND)
INT S_SHIFT & CARRIAGE(TF, 6~7TON)
S_SHIFT & F_POSITION(TF, 6~7TON, SYN)
S_SHIFT & F_POSITION(TF, 6~7TON, IND)
INTEGRAL SIDE SHIFT(TS-MAST,5TON)_1
S_SHIFT WITH F_POSITION(TS-MAST, 5TON)_1
S_SHIFT WITH F_POSITION(TS-MAST, 5TON)_2
INT S_SHIFT & CARRIAGE(TS, 6~7TON)
S_SHIFT WITH F_POSITION(TS-MAST, 6~7TON)_1
S_SHIFT WITH F_POSITION(TS-MAST, 6~7TON)_2
INTEGRAL FORK POSITIONER(V-MAST, IND, 5TON)
INTEGRAL FORK POSITIONER(V-MAST, IND, 6~7TON)
INTEGRAL FORK POSITIONER(TF-MAST, IND, 5TON)
INTEGRAL FORK POSITIONER(TF-MAST, IND, 6~7TON)
DECAL (ENGLISH)
TOOLS
MANUALS
HCE-DT KIT
CRANKCASE
OIL PAN
DIPSTICK AND GUIDE
CYLINDER HEAD
INLET VALVE AND EXHAUST VALVE
ROCKER ARM SHAFT
HEAD COVER
GEAR CASE
PISTON AND CRANKSHAFT
CAMSHAFT AND IDLE GEAR SHAFT
BEARING CASE COVER
FLYWHEEL
SUPPLY PUMP
FUEL FILTER
INJECTION PIPE
COMMON RAIL
ALTERNATOR AND PULLEY
ALTERNATOR ASSY
STARTER & MTG
STARTER ASSY
SWITCH AND SENSOR
INJECTOR HARNESS
WIRE HARNESS
WIRE HARNESS BRACKET
WATER FLANGE AND THERMOSTAT
WATER PUMP
FAN AND PULLEY
INLET MANIFOLD
AIR CLEALER FLANGE AND THROTTLE VALVE
EXHAUST MANIFOLD
EGR VALVE
EGR COOLER
TURBOCHARGER
DPF MUFFLER & MTG
DPF MUFFLER ASSY
MUFFLER SENSOR
PRESSURE PIPE
BREATHER PIPE & SEPARATOR PIPE
OIL SEPARATOR
OIL PIPE (TURBOCHARGER)
OIL COOLER
OIL FILTER
HYDRAULIC PUMP BASE
RELAY
ACCESSORIES AND SERVICE PARTS
PISTON KIT (OPTION)
DIAGMASTER (OPTION)
