International Truck HV HX LT MV RH 2021 Enhanced Remote Power Module Integration Guide

Description

Contents:
1. Revision Summary Table
2. Forward:
3. Enhanced Remote Power Modules:
3.1. Enhanced Remote Power Module Composite View and Connectors
3.2. J1 and J2 Enhanced Remote Power Module CAN, 12 Volt and Ground Pass-through Connector
3.3. J3 Enhanced Remote Power Module Power Connections
3.4. J4 Enhanced Remote Power Module 16-Way Analog In and High Side Driver Output Connector
3.5. J5 Enhanced Remote Power Module 16-Way Input/Output Connector
4. ERPM I/O Body Builder Harnesses – Includes connectors for J4 and J5
4.1. 60ABT: BDY INTG, RPM I/O HARNESS Includes One Harness with 12 Input Blunt Cut Wires and 17
Output Blunt Cut Wires, for use with One ERPM
4.2. 60ABU: BDY INTG, RPM I/O HARNESS Includes Two Harnesses with 12 Input Blunt Cut Wires and
17 Output Blunt Cut Wires, for use with Two ERPMs.
5. Parts Associated with ERPM Features
6. Engine Speed Control with ERPM
6.1. 60AJH: BCM PROG, EXT ENGINE SPD CONT’L for Emergency Power Output ERPM and Utility
Application, for use with External Engine Speed Control
6.2. 60AJA: BDY INTG, THROTTLE CONTROL Accommodation for Single Customer Mounted External
Engine Speed Control Switch, Programmable Mode for Various Switch Actions and Engine
Speed Control Option; Useable Only While Vehicle is Stopped, and the Park Brake is Applied
(requires one Enhanced Remote Power Module (ERPM) input).
6.3. 60AJE: BDY INTG, THROTTLE CONTROL Accommodation for On Demand Engine Speed for
Single Customer-Mounted Pressure Switch, Programmable Mode for Various Switch Actions,
Useable Only While Vehicle is Stopped, and the Park Brake is Applied (requires 1 Enhanced
Remote Power Module input).
6.4. 60AJG: BDY INTG, THROTTLE CONTROL Accommodation for Single Customer Mounted External
Engine Control Switch, for Utility Applications, Programmable Mode for Various Switch Actions
and Engine Speed Control Option, Only with Vehicle Stopped and Park Brake is Applied
(requires one Enhanced Remote Power Module ERPM input)
6.5. 60AJJ: BDY INTG, THROTTLE CONTROL Accommodation for Single Customer Mounted
Momentary Switch, for Refuse Applications, Programmable Mode Various Switch Actions,
Useable Only While Vehicle is Stopped, and the Park Brake is Applied (requires one Enhanced
Remote Power Module ERPM input)
7. Indicator Lights and Alarms with Enhanced Remote Power Modules
7.1. 60AJC: BDY INTG, INDICATOR LIGHTS (2) One for Gate Open and One for Alarm in Cab with the
ERPM. Includes Audible Alarm, Programmable Mode for Various Switch Action (requires 2
Enhanced Remote Power Module (ERPM) inputs).

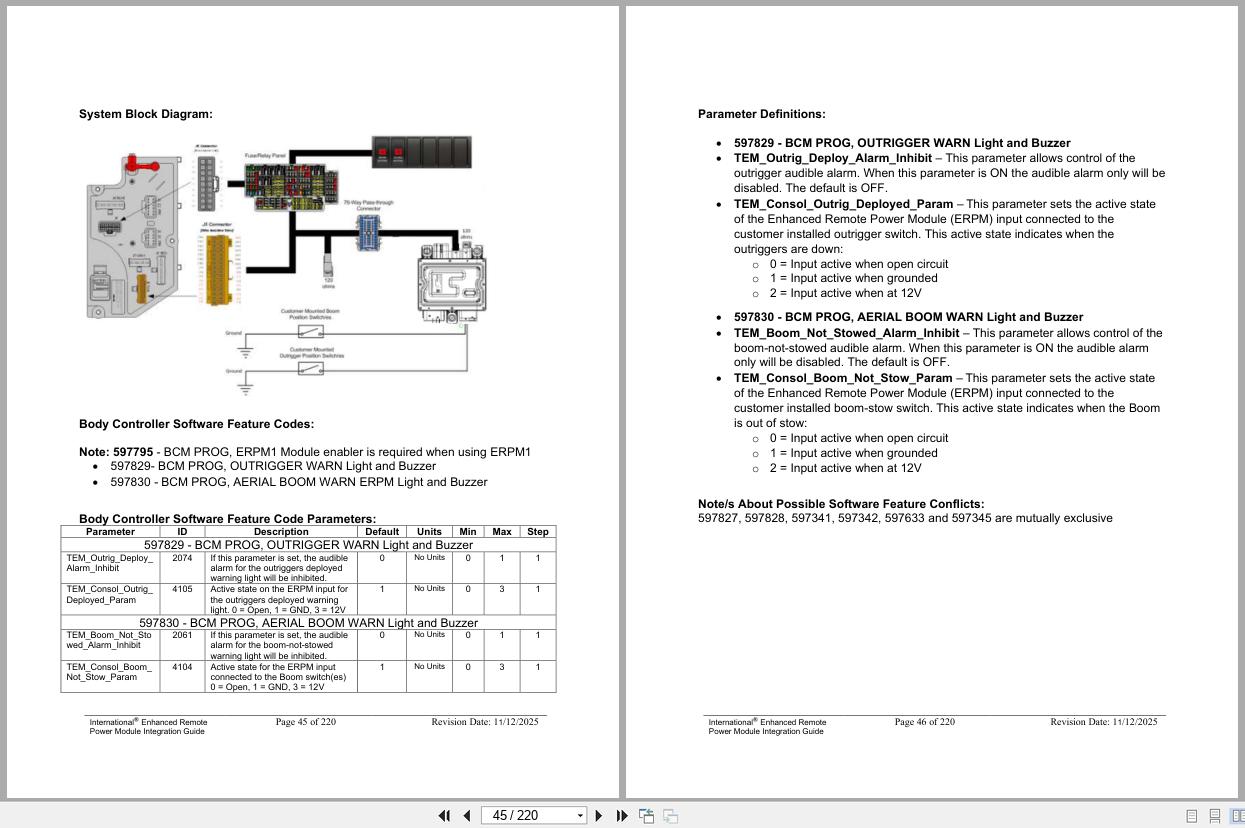

7.2. 60AJD: BDY INTG, INDICATOR LIGHTS (2) One for Boom Out of Stow, One for Outriggers
Deployed, Includes Audible Alarm and Interlock to Parking Brake, Programmable Mode for
Various Switch Actions (requires 2 ERPM inputs).
7.3. 60AJK: INDICATOR LIGHTS (2), One for Body Up, One for Gate Open, Includes Audible Alarm,
Programmable Mode for Various Switch Actions (Requires 2-RPM Inputs).
8. Power Features using Enhanced Remote Power Modules
8.1. 60ACE: BDY INTG, SWITCH DUAL OUTPUT 2-Position Latched Rocker, Backlit, with “ON” Indicator
Mounted on Dash, for 1; Auxiliary Load 40-AMP Maximum; Power Available Only in “Ignition
(IGN)” or “Accessory” Position; Controls Two Remote Power Module (ERPMs) Outputs
(requires two ERPM outputs).
8.2. 60ACG: BDY INTG, SWITCH, INTERLOCKED 2-Position Latched Rocker, Backlit, with “ON”
Indicator Mounted on Dash for 1; Auxiliary Load 20-Ampere (AMP) Maximum; Output will
disengage when Vehicle Exceeds 30-MPH, Programmable; Power Available Only in “Ignition
(IGN)” or “Accessory” Position (requires one Enhanced Remote Power Module (ERPM)
output)
8.3. 60ACH: BDY: INTG, SWITCH, INTERLOCKED (2) 2-Position Latched Rockers, Backlit, with “ON”
Indicator Mounted on Dash, for 2; Auxiliary Load each 20-AMP Maximum; Outputs willInternational® Enhanced Remote
Power Module Integration Guide
Page 3 of 220 Revision Date: 11/12/2025
Disengage when Vehicle Exceeds 30-MPH, Programmable; Power Available Only in “IGN” or
“Accessory” Position (requires two ERPM outputs).
8.4. 60ACS: BDY INTG, SWITCH MOMNTRY 3POS Rocker, Backlit, with “ON” Indicator Mounted on
Dash, Latching Software, for 1 Auxiliary Load 20-amp. Maximum: Power Available Only in
“Ignition” or “Accessory” Position, Output Also Controlled by a Customer Remote Mounted
Switch (requires 1 Enhanced Remote Power Module input and 1 output)
8.5. 60ACT: BDY INTG, SWITCH MOMNTRY 3 POS Rocker, Backlit, with “ON” Indicator Mounted on
Dash, Latching Software, for 2; Auxiliary Load 20 amp. Maximum: Power Available Only in
“Ignition” or “Accessory” Position, Output Also Controlled by a Customer Remote Mounted
Switch (requires 2 Remote Power Module inputs & 2 outputs).
8.6. 60ACU: BDY INTG, SWITCH MOMNTRY 3-POS (3) Rocker, Backlit, with “ON” Indicator Mounted on
Dash, Latching Software, for 3; Auxiliary Load 20-AMP Maximum; Power Available Only in
“IGN” or “Accessory” Position, Output Also Controlled by a Customer Remote-Mounted Switch
(requires three ERPM inputs and three outputs)
8.7. 60ADB: BDY INTG, SWITCH MOMNTRY 3POS (5) Rocker, Backlit, with “ON” Indicator Mounted on
Dash, Latching Software, for 5; Auxiliary Load 20 amp. Maximum: Power Available Only in
“Ignition” or “Accessory” Position, Output Also Controlled by a Customer Remote Mounted
Switch (requires 5 Remote Power Module inputs & 5 outputs)
9. Enhanced Remote Power Modules
9.1. 60ADL, 60ADZ, 60AEM, 60AEN and 60AER:
These feature codes are very similar. The difference is in where the modules are located.
60ADL: BDY INTG, REMOTE POWER MODULE Mounted Inside Cab Behind Driver Seat, Up to 12
Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6
Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes One Switch Pack with
Latched Switches
60AEM: BDY INTG, ENHANCED REMOTE POWER MODULE Mounted at End of Frame, Up to 12
Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6
Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes One Switch Pack with
Latched Switches
60AER: BDY INTG, ENHANCED REMOTE POWER MODULE Mounted Behind Battery Box, Up to 12
Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6
Low Current, 2 PWM, (2) 5A, & (1) 5VR), Max 100 amp Total, Includes One Switch Pack with
Latched Switches
9.2. 60ADM, 60ADV, 60AEA 60AEG and 60AES
These feature codes are very similar. The difference is in where the modules are located.
60ADM: BDY INTG, REMOTE POWER MODULE (2) Mounted Inside Cab Behind Driver Seat, Each Up
to 12 Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VR, Max 100 amp Total, Includes Two Switch
Packs with Latched Switches
60ADV: BDY INTG, REMOTE POWER MODULE (2) : One Behind Driver Seat, One Behind Passenger
Seat, Each Up to 12 Inputs (6 Analog & 6 Tri-State) & 17 Outputs (6 High Current, Max 20 amp
per Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VR), Max 100 amp Total, Includes Two
Switch Packs with Latched Switches
60AEA: BDY INTG, REMOTE POWER MODULE (2) Mounted Under Cab, Each Up to 12 Inputs (6
Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6 Low
Current, 2 PWM, (2) 5A, & (1) 5VREF, Max 100 amp Total, Includes Two Switch Packs with
Latched Switches

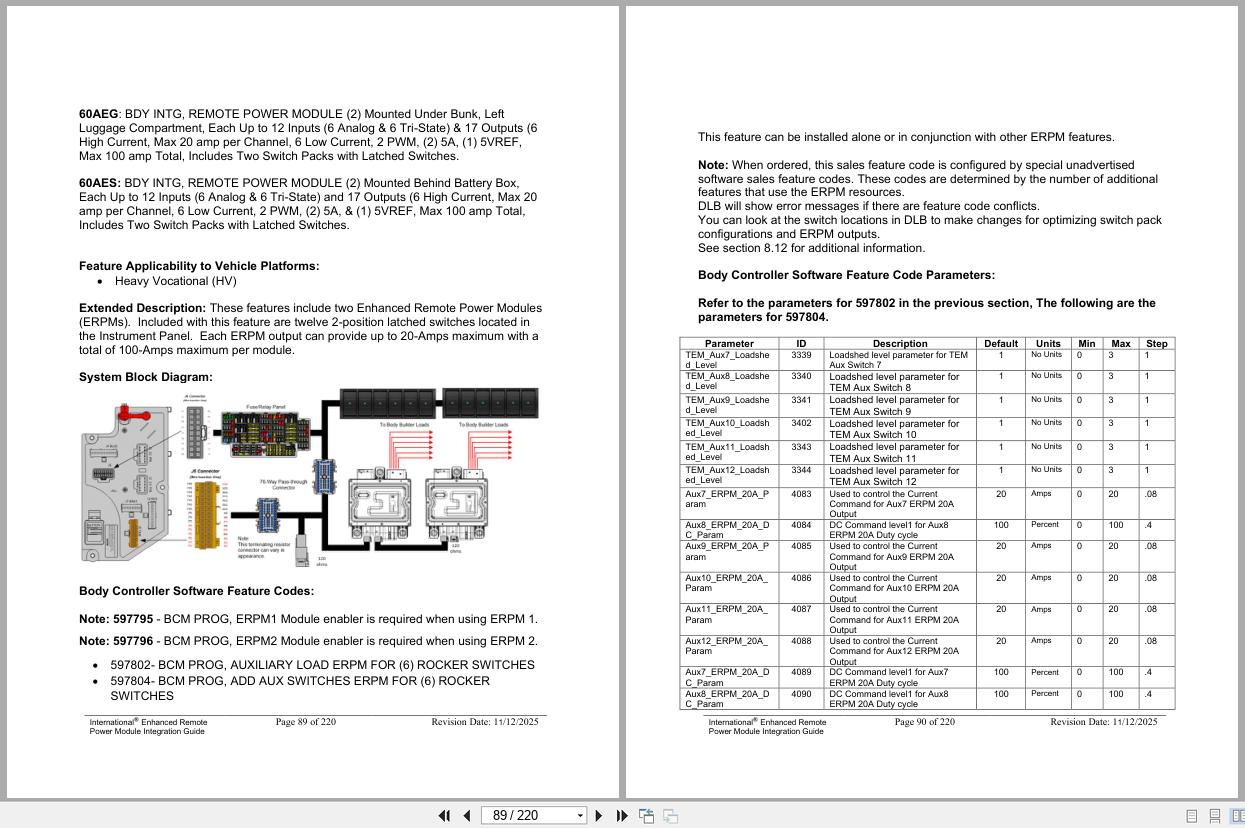

60AEG: BDY INTG, REMOTE POWER MODULE (2) Mounted Under Bunk, Left Luggage Compartment,
Each Up to 12 Inputs (6 Analog & 6 Tri-State) & 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes Two Switch
Packs with Latched Switches.
60AES: BDY INTG, REMOTE POWER MODULE (2) Mounted Behind Battery Box, Each Up to 12 Inputs
(6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6 Low
Current, 2 PWM, (2) 5A, & (1) 5VREF, Max 100 amp Total, Includes Two Switch Packs with
Latched Switches
9.3. 60ADN, 60ADX and 60AEK
These feature codes are very similar. The difference is in where the modules are located.
60ADN: BDY INTG, REMOTE POWER MODULE (3) Mounted Inside Cab Behind Driver Seat, Each Up
to 12 Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VR, Max 100 amp Total, Includes Three Switch
Packs with Latched Switches.
60ADX: BDY INTG, ENHANCED REMOTE POWER MODULE (3) : One Behind Driver Seat, Two Behind
Passenger Seat, Each Up to 12 Inputs (6 Analog & 6 Tri-State) & 17 Outputs (6 High Current,International® Enhanced Remote
Power Module Integration Guide
Page 4 of 220 Revision Date: 11/12/2025
Max 20 amp per Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total,
Includes Three Switch Packs with 18 Latched Switches
60AEK: BDY INTG, REMOTE POWER MODULE (3) Mounted Under Bunk, Left Luggage Compartment,
Each Up to 12 Inputs (6 Analog & 6 Tri-State) & 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes Three
Switch Packs with Latched Switches
9.4. 60ADP and 60AET
These feature codes are very similar. The difference is in where the modules are located.
9.5. 60ADR and 60AEJ
These feature codes are very similar. The difference is in where the modules are located.
60ADR: BDY INTG, REMOTE POWER MODULE (3) Mounted Inside Cab Behind Driver Seat, Each Up
to 12 Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes Three
Modules with Hardware Only
60AEJ: BDY INTG, REMOTE POWER MODULE (3) Mounted Under Bunk, Left Luggage Compartment,
Each Up to 12 Inputs (6 Analog & 6 Tri-State) & 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (1) 5A, (1) 5VREF, Max 100 amp Total, Includes Three
Modules with Hardware only
9.6. 60ADS and 60AEH:.
These feature codes are very similar. The difference is in where the modules are located.
60ADS:. BDY INTG, REMOTE POWER MODULE (3) Mounted Inside Cab Behind Driver Seat, Each Up
to 12 Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes Two
Modules w/Switch Packs Containing 6 Latched Switches, 1 Module Hardware Only
9.7. 60ADT, 60AED and 60AEL:
These feature codes are very similar. The difference is in where the modules are located.
60ADT: BDY INTG, REMOTE POWER MODULE Mounted Inside Cab Behind Driver Seat, Up to 12
Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6
Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes One Switch Pack with
momentary Switches
60AED: BDY INTG, REMOTE POWER MODULE Mounted Under Cab, Up to 12 Inputs (6 Analog & 6 TriState) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6 Low Current, 2 PWM,
5A, & (1) 5VREF, Max 100 amp Total, Includes One Switch Pack with Momentary Switches
60AEL: BDY INTG, REMOTE PWR MOD, REAR Mounted at End of Frame, Up to 12 Inputs (6 Analog &
6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6 Low Current, 2 PWM,
(2) 5A, (1) 5VRF, Max 100 amp Total, Includes One Switch Pack with Momentary Switches.
9.8. 60ADU, 60ADW and 60AEC
These feature codes are very similar. The difference is in where the modules are located.
60ADU: BDY INTG, REMOTE POWER MODULE (2) Mounted Inside Cab Behind Driver Seat, Each Up
to 12 Inputs (6 Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes Two Switch
Packs with Momentary Switches
60ADW: BDY INTG, ENHANCED REMOTE POWER MODULE (2) : One Behind Driver Seat, One
Behind Passenger Seat, Each Up to 12 Inputs (6 Analog & 6 Tri-State) & 17 Outputs (6 High
Current, Max 20 amp per Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp
Total, Includes Two Switch Packs with 12 Momentary switches
60AEC: BDY INTG, REMOTE POWER MODULE (2) Mounted Under Cab, Up to 12 Inputs (6 Analog & 6
Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6 Low Current, 2 PWM,
(2) 5A, & (1) 5VREF, Max 100 amp Total, Includes Two Switch Packs with Momentary
Switches.
9.9. 60ADY: BDY INTG, ENHANCED REMOTE POWER MODULE (3) : One Behind Driver Seat, Two
Behind Passenger Seat, Each Up to 12 Inputs (6 Analog & 6 Tri-State) & 17 Outputs (6 High
Current, Max 20 amp per Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp
Total, Includes Three Switch Packs with 18 Momentary Switches
9.10. 60AEB and 60AEE
These feature codes are very similar. The difference is in where the modules are located.
60AEB: BDY INTG, REMOTE POWER MODULE (2) Mounted Under Cab, Each Up to 12 Inputs (6
Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6 Low
Current, 2 PWM, (2) 5A, & (1) 5VR), Max 100 amp Total, Includes One Module with Switch
Pack Containing 6 Latched Switches, One Module with Hardware Only
60AEE: BDY INTG, REMOTE POWER MODULE (2) Mounted Under Bunk, Left Luggage Compartment,
Each Up to 12 Inputs (6 Analog & 6 Tri-State) & 17 Outputs (6 High Current, Max 20 amp per
Channel, 6 Low Current, 2 PWM, (2) 5A, (1) 5VREF, Max 100 amp Total, Includes One Module
w/ Switch Pack Containing 6 Latched Switches, One Module Hardware Only.
9.11. 60AEP: BDY INTG, POWER MODULE AUX (1) Mounted at End of Frame, Up to 12 Inputs (6
Analog & 6 Tri-State) and 17 Outputs (6 High Current, Max 20 amp per Channel, 6 LowInternational® Enhanced Remote
Power Module Integration Guide
Page 5 of 220 Revision Date: 11/12/2025
Current, 2 PWM, (2) 5A, (1) 5VR), Max 100 amp Total, Includes One Module with Hardware
Only
9.12. Codes Added in Conjunction with other ERPM Codes
10. Enhanced Remote Power Module PTO Support
10.1. 16WLM: HOUR METER, PTO for Customer Provided PTO; Indicator Light and Hour meter in
Gauge Cluster Includes Return Wire for PTO Feedback Switch
10.2. 60ABA: BDY INTG, PTO ACCOMMODATION for Monitoring Cable Shift Engaged PTO, With
Indicator Light and Audible Alarm in Gauge Cluster (requires one Enhanced Remote Power
Module (ERPM) input)
10.3. 60ABB: BDY INTG, PTO ACCOMMODATION for Muncie Lectra-Shift PTO Engagement and
Disengagement, With Switch Mounted on Dash; Includes Indicator Light and Audible Alarm in
Gauge Cluster (requires one ERPM input and one output)
10.4. 60ABE: BDY INTG, PTO ACCOMMODATION for Electric over Hydraulic PTO, With Switch
Mounted on Dash, Includes Audible Alarm and Indicator Light in Gauge Cluster (Requires one
ERPM input and one output). This feature does Not Include Solenoids.
10.5. 60ABK: BDY INTG, PTO ACCOMMODATION. Accommodation for Electric over Air, Non-Clutched
PTO Engagement and Disengagement does not Include Air Solenoid, With Switch Mounted on
Dash, Includes Audible Alarm and Indicator Light in Gauge Cluster (requires one ERPM input
and one output)
10.6. 60ABL: BDY INTG, PTO ACCOMMODATION. Accommodation for Electric over Air, Clutched PTO
Engagement and Disengagement, does not Include Air Solenoid, With Switch Mounted on
Dash, Includes Audible Alarm and Indicator Light in Gauge Cluster (requires one ERPM input
and one output)
11. Advanced Logic Used with an ERPM
11.1. Sample of Tri-State Logic
11.2 Samples of 20 Amp Output Logic
11.2.1 Standard 20 Amp Output Logic
11.2.2 Advanced 20 Amp Output Logic
11.3 Sample of 5 Amp Output Logic
11.4 Sample of Logic Using an Analog Input
11.5 Low and High Side Drivers
11.5.1 Low Side Driver Example
11.5.2 High Side Driver Example
11.6 Half Bridge
11.7 Full Bridge
11.7.1 Full Bridge Example 1
11.7.2 Full Bridge Example 2
11.8 220
