Name: International Truck HX Vocational Series Electrical Systems Integration Guide 2018
SKU: 646955
Availability: InStock

International Truck HX Vocational Series Electrical Systems Integration Guide 2018 (1)

International Truck HX Vocational Series Electrical Systems Integration Guide 2018 (2)

International Truck HX Vocational Series Electrical Systems Integration Guide 2018 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

International Truck HX Vocational Series Electrical Systems Integration Guide 2018

Size: 1.37 MB

Format: PDF

Language: English

Brand:

Type of Machine: Truck

Type of Manual: Electrical Systems Integration Guide

Model: International HX Vocational Series Truck

Publication Date: 2018

Number of Pages: 44 Pages

30 USD

Tags: HX Vocational Series, International Electrical Systems Integration Guide, International Truck Manual

Description

Description

Contents:
1. Revision Summary Table
2. Forward:
3. Vehicle Architectures:
3.1. Multiplexing Architecture:
4. Body Controller
4.1. Body Control Module Gen IV:
4.2. Body Control Module â€œReal-time Clockâ€ Internal Power Source:
4.3. Body Control Module Gen IV Connector Composite:

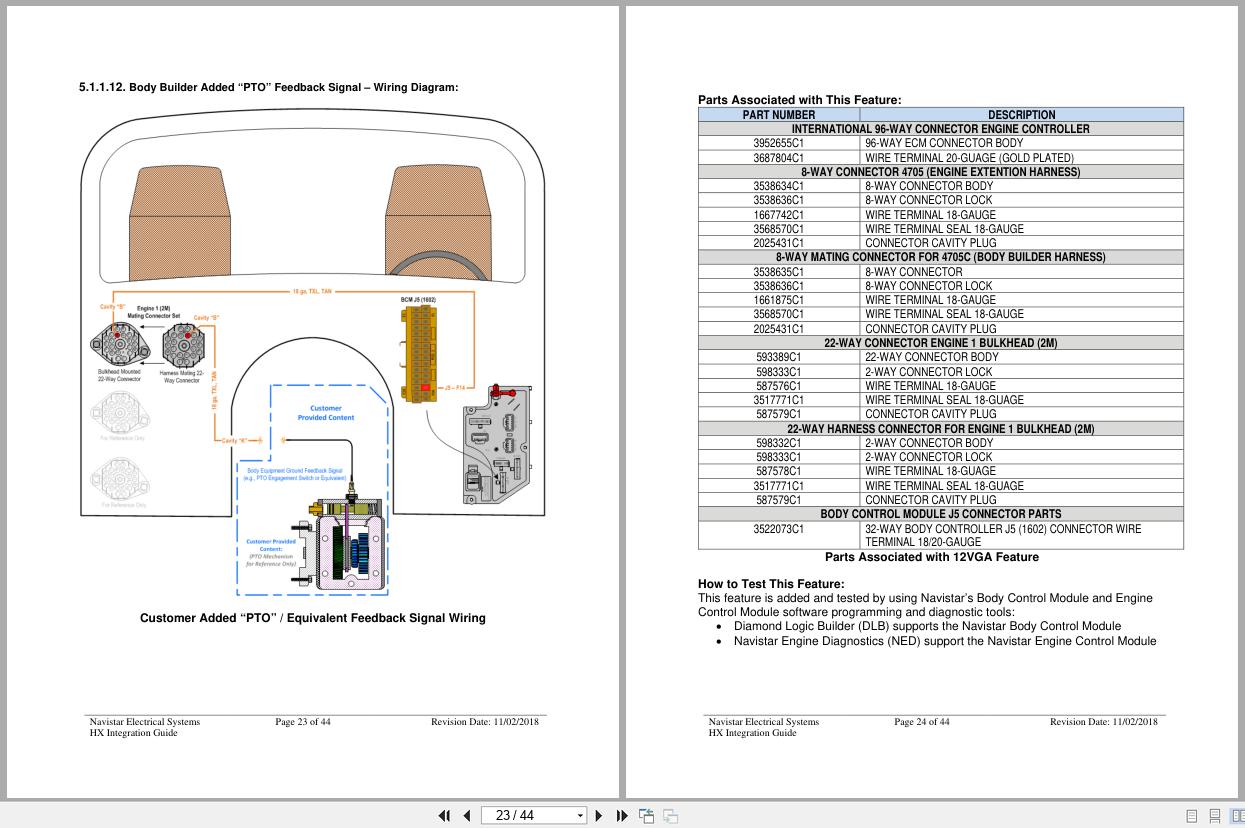

5. Engine Speed Control Feature and Accommodation Packages
5.1. 12VGA: ENGINE CONTROL, REMOTE MOUNTED Provision for, Includes Wiring for Body Builder Installation of PTO Controls, With Ignition Switch Control for InternationalÂ® N13/A26 Electronic Engines.
6. Secondary Road Speed Limit
6.1. Datalink Control for Secondary Road Speed Limit Control: J1939 DATALINK ENGINE CONTROL for Navistar A26 Engines.
7. Appendix – General Electrical Section:
7.1. Color Code System for InternationalÂ® Truck Wiring:
7.2. Recommended Circuit Protection:
7.3. Electrical Components Commonly Used by Equipment Installers:

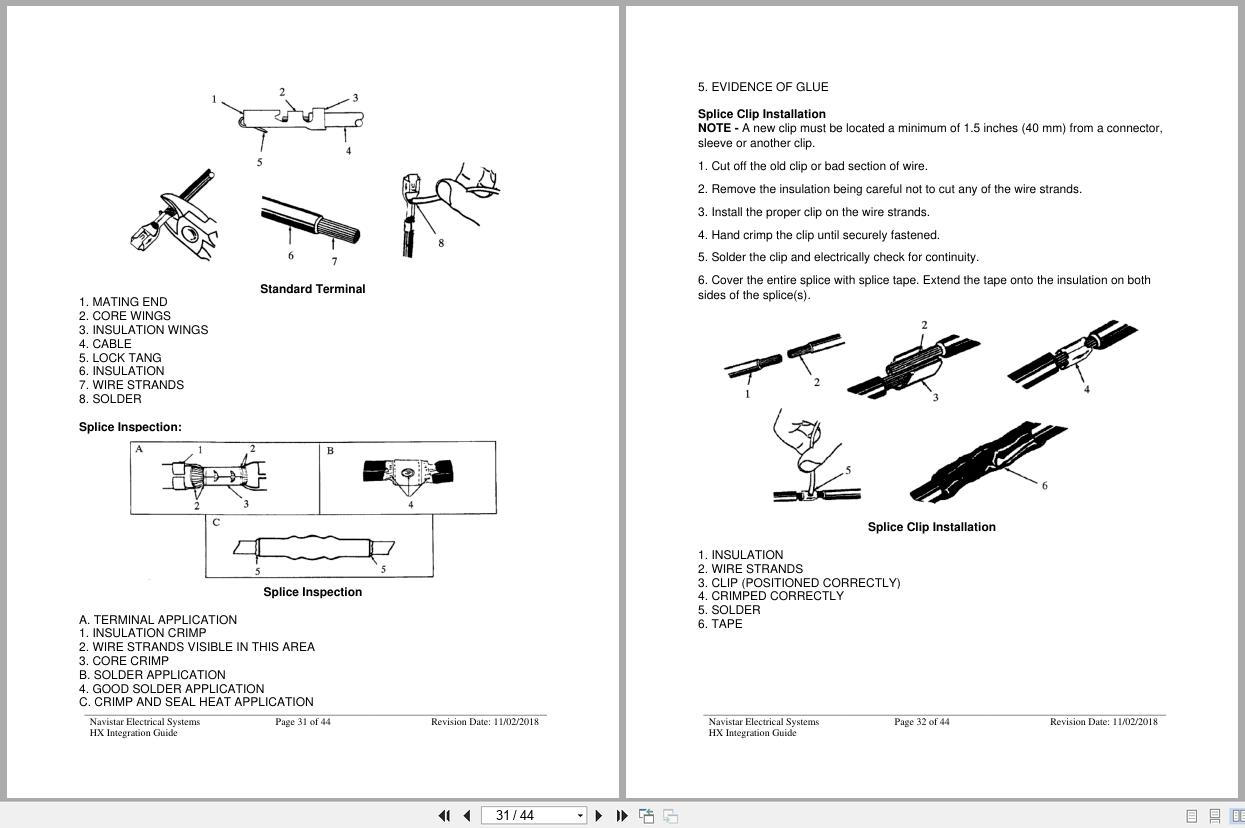

7.4. Wire Splicing and Termination – Standard Terminals and Splices:
7.5. HIGH VOLTAGE CIRCUITS (GREATER THAN 50 VOLTS) ON INTERNATIONAL TRUCKS AND BUSES:
