Name: Isuzu Truck F&amp;G Series 08 Cab model 2023 to 2025 2nd edition Wiring Diagram MFHTML-WEN-2321
SKU: 670342
Availability: InStock

Isuzu Truck F&G Series 08 Cab model 2023 to 2025 2nd edition Wiring Diagram MFHTML WEN 2321 (1)

Isuzu Truck F&G Series 08 Cab model 2023 to 2025 2nd edition Wiring Diagram MFHTML WEN 2321 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Isuzu Truck F&G Series 08 Cab model 2023 to 2025 2nd edition Wiring Diagram MFHTML-WEN-2321

Size: 10.5 MB

Format: PDF

Language: English

Brand: Isuzu

Type of Machine: Truck

Type of Manual: Wiring Diagram

Model: Isuzu Truck F&G Series 08 Cab model

2nd edition, Chile, Colombia, Morocco and Peru only Date-20241213

Date: 2023 to 2025

Parts Number: MFHTML-WEN-2321

List of file:

Air Dryer.pdf (1 Pages)

Analog Tachograph.pdf (1 Pages)

Anti-lock Brake (4HK1).pdf (1 Pages)

Anti-lock Brake (6HK1).pdf (1 Pages)

Audio.pdf (1 Pages)

Automatic Transmission.pdf (3 Pages)

Backup Light (AT).pdf (1 Pages)

Backup Light (MT Smoother).pdf (1 Pages)

Body Control (CAN Converter (FCG)).pdf (1 Pages)

Cigarette Lighter.pdf (1 Pages)

Combination Meter.pdf (7 Pages)

Controller Area Network (4HK1).pdf (3 Pages)

Controller Area Network (6HK1 ISO).pdf (3 Pages)

Controller Area Network (6HK1 J1939).pdf (3 Pages)

DLC.pdf (1 Pages)

Differential Lock.pdf (1 Pages)

Dome Light.pdf (1 Pages)

Electronic Stability Control (4HK1).pdf (3 Pages)

Electronic Stability Control (6HK1).pdf (3 Pages)

Engine Control (4HK1).pdf (7 Pages)

Engine Control (6HK1 AT).pdf (7 Pages)

Engine Control (6HK1 MT).pdf (7 Pages)

Fog Light (Front Fog Light Bumper Headlight).pdf (1 Pages)

Fog Light (Front Fog Light Cab Headlight).pdf (1 Pages)

Fog Light (Rear Fog Light).pdf (1 Pages)

Fuse Load.pdf (3 Pages)

Ground Distribution.pdf (3 Pages)

HSA Control.pdf (1 Pages)

Headlight (Bumper Headlight).pdf (1 Pages)

Headlight (Cab Headlight).pdf (1 Pages)

Horn.pdf (1 Pages)

Immobilizer.pdf (1 Pages)

Information Module.pdf (1 Pages)

Manual Air Conditioner.pdf (1 Pages)

PTO (MT).pdf (1 Pages)

PTO (Smoother).pdf (1 Pages)

Power Distribution.pdf (3 Pages)

Power Door Locks (Except Keyless Entry).pdf (1 Pages)

Power Door Locks (Keyless Entry).pdf (1 Pages)

Power Windows.pdf (1 Pages)

Pulse Adjuster (4HK1).pdf (1 Pages)

Pulse Adjuster (6HK1 AT).pdf (1 Pages)

Pulse Adjuster (6HK1 MT).pdf (1 Pages)

SRS airbag.pdf (1 Pages)

Smoother (Except Seat Belt Reminder).pdf (4 Pages)

Smoother (Seat Belt Reminder).pdf (4 Pages)

Starter and Charging (4HK1 MT).pdf (3 Pages)

Starter and Charging (4HK1 Smoother).pdf (3 Pages)

Starter and Charging (6HK1 AT).pdf (3 Pages)

Starter and Charging (6HK1 MT).pdf (3 Pages)

Stoplight.pdf (1 Pages)

Taillight.pdf (3 Pages)

Turn Signal Light (Bumper Headlight).pdf (3 Pages)

Turn Signal Light (Cab Headlight).pdf (3 Pages)

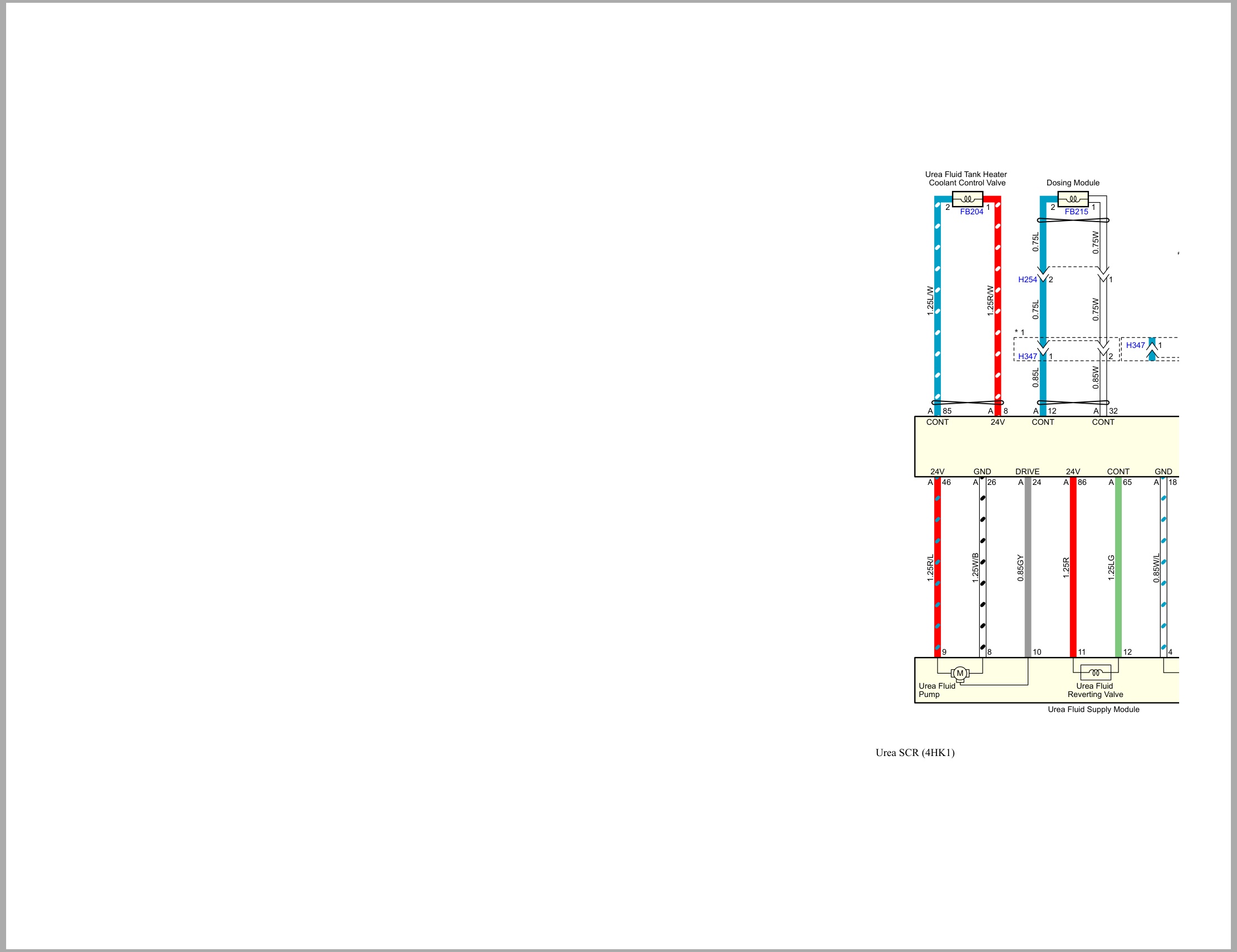

Urea SCR (4HK1).pdf (3 Pages)
