Name: Isuzu Truck FX_FY_GX Series 08 Cab model 2017 to 2024 4th edition Hong Kong Wiring Diagram FXHTML-WEN-1761HK
SKU: 670345
Availability: InStock

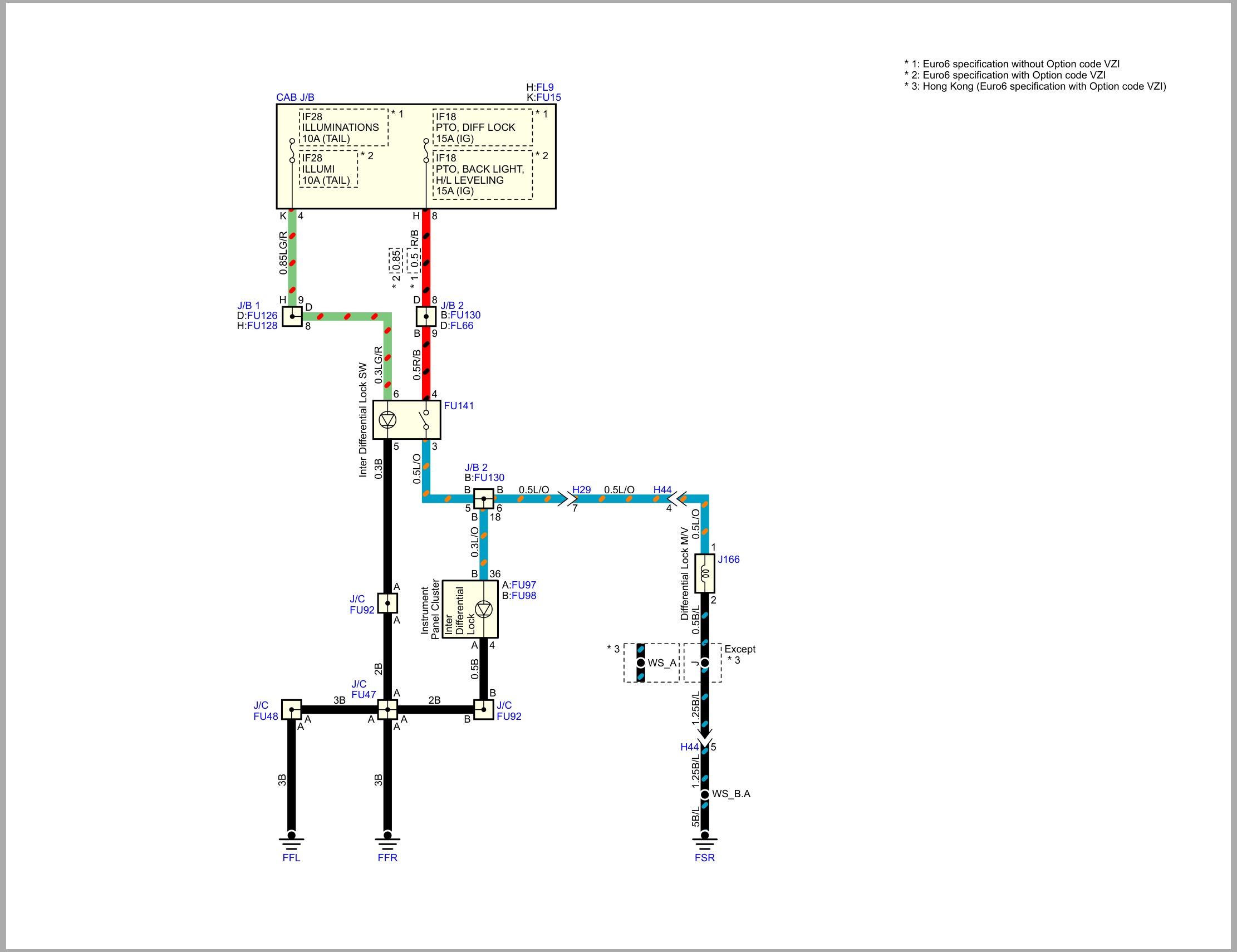

Isuzu Truck FX FY GX Series 08 Cab model 2017 to 2024 4th edition Hong Kong Wiring Diagram FXHTML WEN 1761HK (1)

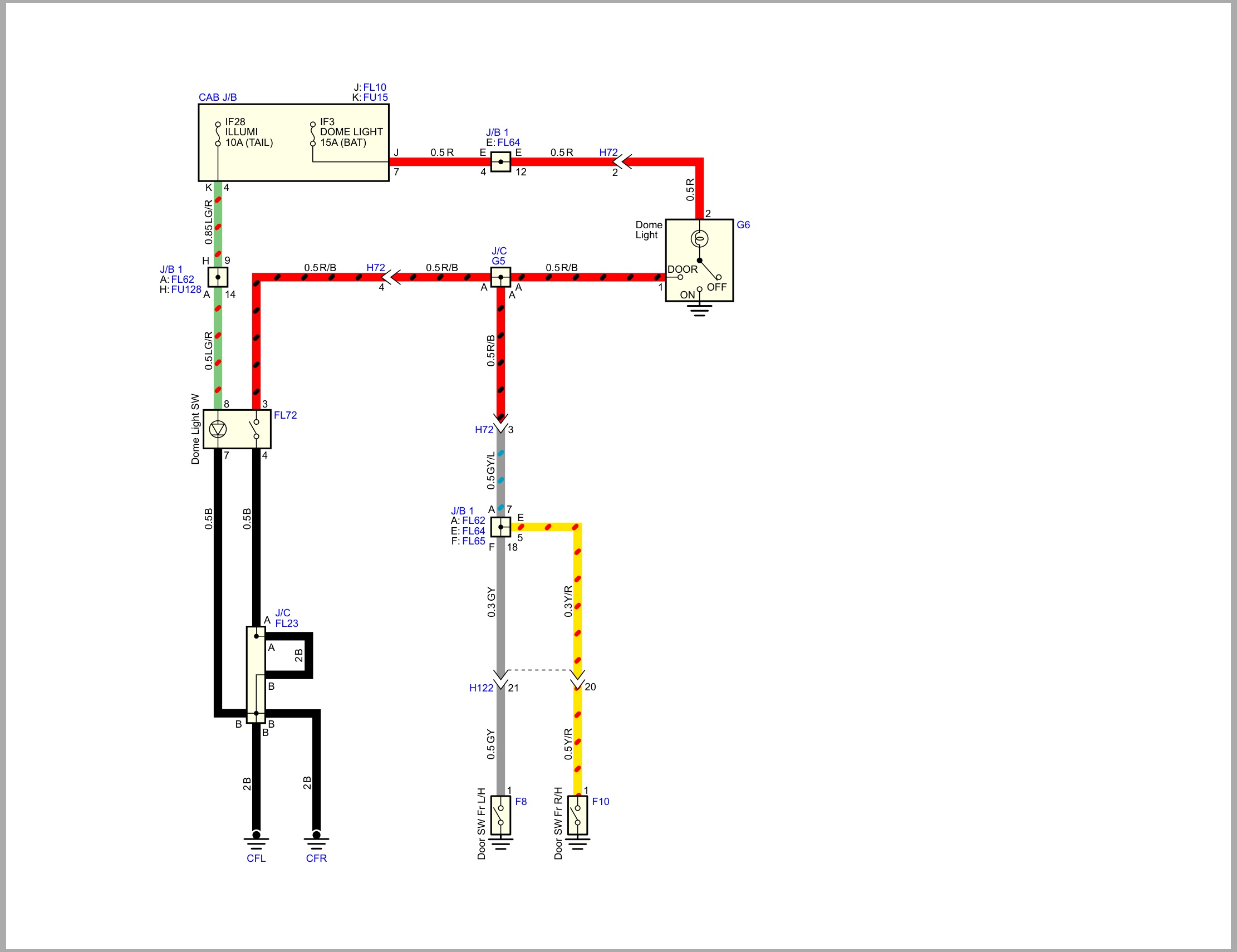

Isuzu Truck FX FY GX Series 08 Cab model 2017 to 2024 4th edition Hong Kong Wiring Diagram FXHTML WEN 1761HK (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Isuzu Truck FX_FY_GX Series 08 Cab model 2017 to 2024 4th edition Hong Kong Wiring Diagram FXHTML-WEN-1761HK

Size: 7.9 MB

Format: PDF

Language: English

Brand: Isuzu

Type of Machine: Truck

Type of Manual: Wiring Diagram

Model: Isuzu FX_FY_GX Series 08 Cab model Truck

4th edition, Hong Kong only Date-20231215

Date: 2017 to 2024

Parts Number: FXHTML-WEN-1761HK

List of file:

Air Dryer.pdf (3 Pages)

Anti-lock Brake (Euro6 specification with Option code VZI).pdf (1 Pages)

Anti-lock Brake (Euro6 specification without Option code VZI).pdf (1 Pages)

Audio.pdf (1 Pages)

Automatic Transmission.pdf (3 Pages)

Backup Light (AT).pdf (1 Pages)

Backup Light (MT).pdf (1 Pages)

Cigarette Lighter.pdf (1 Pages)

Combination Meter.pdf (5 Pages)

Controller Area Network (AT Euro6 specification with Option code VZI).pdf (3 Pages)

Controller Area Network (AT Euro6 specification without Option code VZI).pdf (3 Pages)

Controller Area Network (MT Euro6 specification with Option code VZI).pdf (3 Pages)

Controller Area Network (MT Euro6 specification without Option code VZI).pdf (3 Pages)

DLC (Euro6 specification with Option code VZI).pdf (1 Pages)

DLC (Euro6 specification without Option code VZI).pdf (1 Pages)

Differential Lock.pdf (1 Pages)

Dome Light (Except Fluorescent Light).pdf (1 Pages)

Dome Light (Fluorescent Light).pdf (1 Pages)

Electronic Stability Control.pdf (3 Pages)

Engine Control.pdf (7 Pages)

Fog Light.pdf (1 Pages)

Fuse Load (Euro6 specification with Option code VZI).pdf (3 Pages)

Fuse Load (Euro6 specification without Option code VZI).pdf (3 Pages)

Ground Distribution.pdf (3 Pages)

Headlight (Euro6 specification with Option code VZI).pdf (1 Pages)

Headlight (Euro6 specification without Option code VZI).pdf (1 Pages)

Horn.pdf (1 Pages)

Information Module.pdf (1 Pages)

Manual Air Conditioner.pdf (1 Pages)

Manual Transmission.pdf (1 Pages)

Outside Mirror (Door Mounted Mirrors).pdf (1 Pages)

Outside Mirror (Pillar Mounted Mirrors).pdf (1 Pages)

PTO.pdf (1 Pages)

Power Cab Tilt.pdf (1 Pages)

Power Distribution (Euro6 specification with Option code VZI).pdf (3 Pages)

Power Distribution (Euro6 specification without Option code VZI).pdf (3 Pages)

Power Door Locks.pdf (1 Pages)

Power Windows.pdf (1 Pages)

Pulse Adjuster (ALLISON4430).pdf (1 Pages)

Pulse Adjuster (ZF9S1310).pdf (1 Pages)

SRS airbag (Autoliv).pdf (1 Pages)

SRS airbag (DENSO).pdf (1 Pages)

Starter and Charging (AT).pdf (1 Pages)

Starter and Charging (MT).pdf (3 Pages)

Stoplight.pdf (1 Pages)

Taillight.pdf (1 Pages)

Turn Signal Light.pdf (3 Pages)

Urea SCR (FXZ).pdf (3 Pages)

Urea SCR (FYH).pdf (3 Pages)

Windshield Wiper and Washer.pdf (1 Pages)
