Jaguar F-Pace P250S X761 2024 L4-2.0L Turbo Electrical Schematic

Description

Contents:
0. Cover

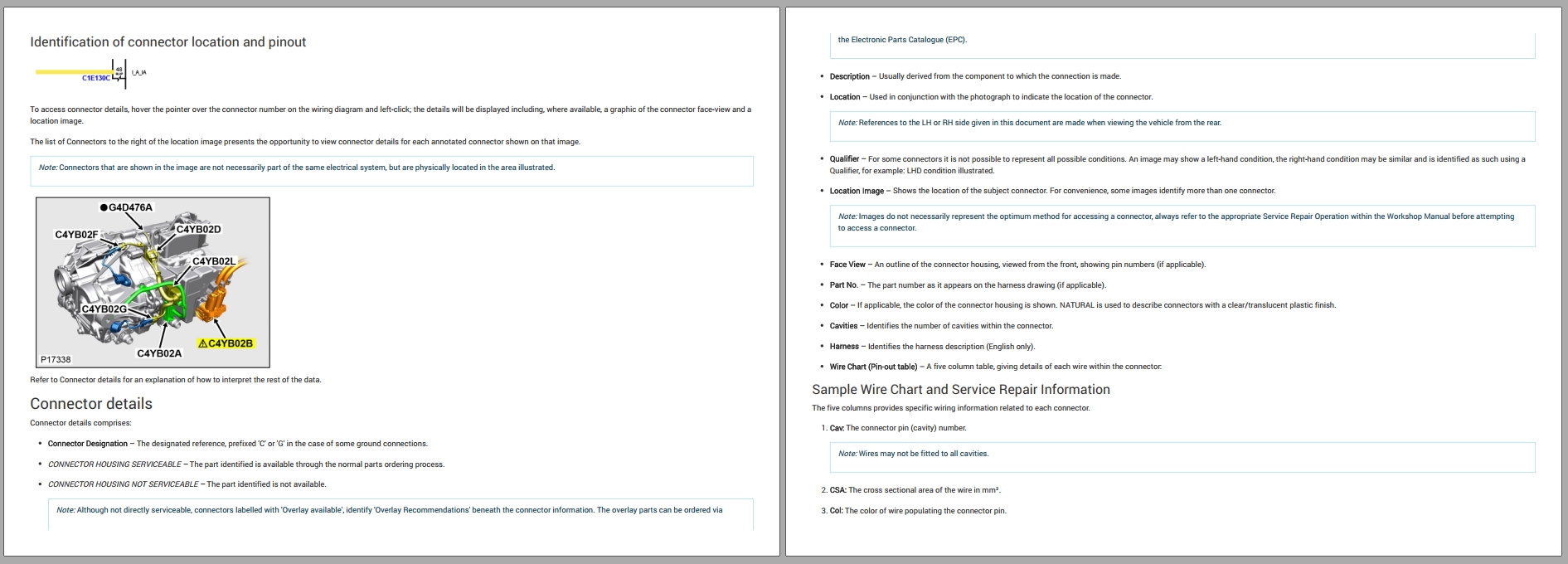

1. Introduction
2. Electrical (OE)
(Accessories and Optional Equipment) Accessory Information – Exterior – Deployable Side Steps Circuit [Deployable Side Step]
(Accessories and Optional Equipment) Telematics – Telematics Circuit
(Accessories and Optional Equipment) Towbar – Deployable Towbar System Circuit [Deployable Towbar System]
(Antilock Brakes _ Traction Control Systems) Anti-Lock Control – ABS Circuit
(Antitheft and Alarm Systems) Anti-Theft System – Anti Theft Alarm Circuit
(Automatic Transmission_Transaxle) Automatic Transmission – Transmission Auto-AJ20D6 Circuit [DI6]
(Automatic Transmission_Transaxle) Automatic Transmission – Transmission Auto-AJ20P4 Circuit [PI4]
(Automatic Transmission_Transaxle) Automatic Transmission – Transmission Auto-AJ20P6 Circuit [PI6]
(Automatic Transmission_Transaxle) Automatic Transmission – Transmission Auto-AJ21D4 Circuit [DI4]
(Automatic Transmission_Transaxle) Automatic Transmission – Transmission Auto-AJ133 Circuit [PV8]
(Charging System) Generator and Regulator – Charging AJ133 Circuit [PV8]
(Charging System) Generator and Regulator – Charging Diesel AJ20D6 Circuit [DI6]
(Charging System) Generator and Regulator – Charging Diesel AJ21D4 Circuit [DI4]
(Charging System) Generator and Regulator – Charging Petrol AJ20P4 Circuit [PI4]
(Charging System) Generator and Regulator – Charging Petrol AJ20P6 Circuit [PI6]
(Collision Avoidance and Parking Assist Systems) Driver Assistance Systems – ADAS Domain Controller Circuit [Driver Assistance Domain Controller]

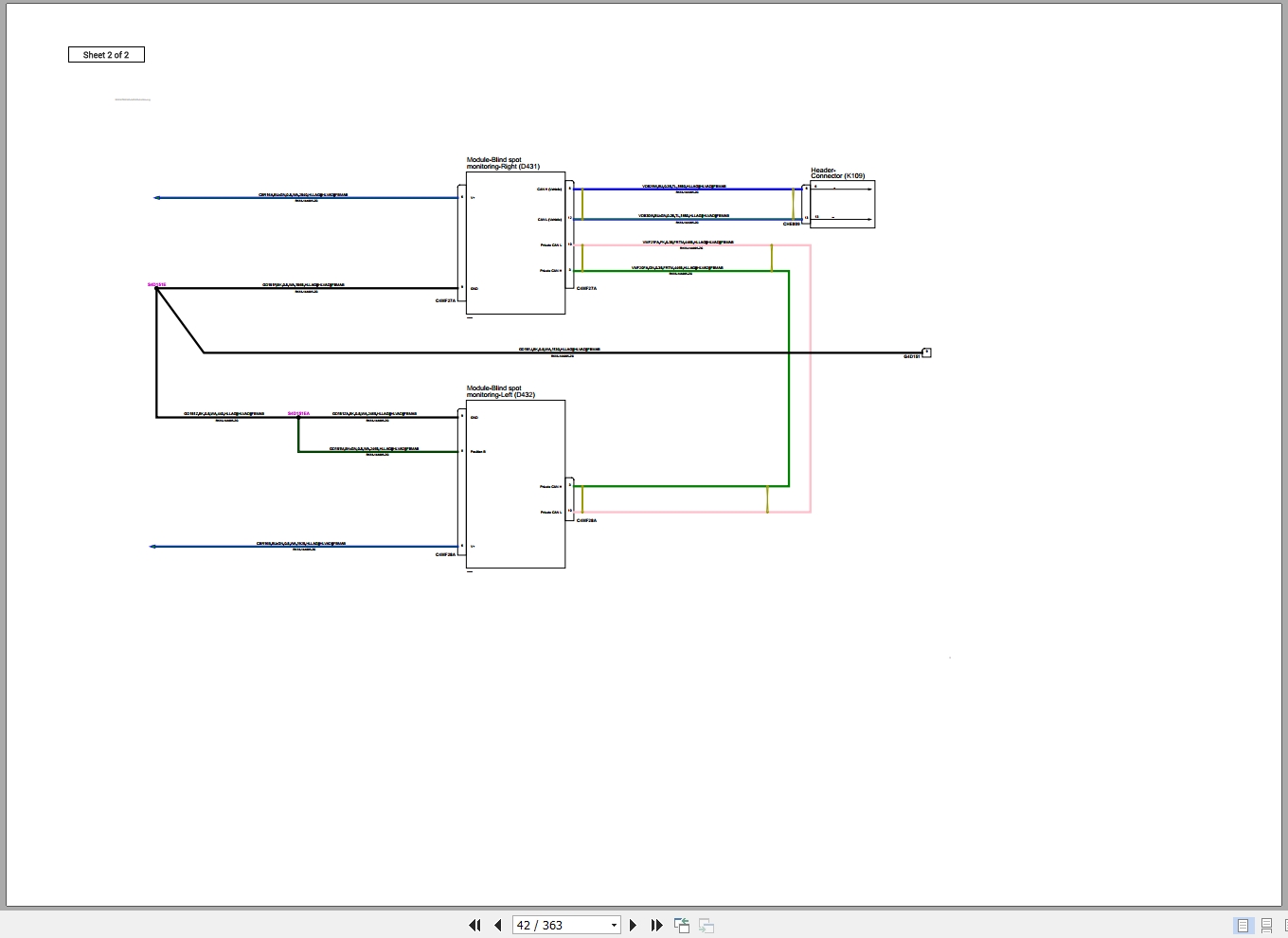

(Collision Avoidance and Parking Assist Systems) Driver Assistance Systems – Blindspot Monitoring Circuit [Blind Spot Monitoring System]
(Collision Avoidance and Parking Assist Systems) Driver Assistance Systems – Camera-Active Safety Circuit [Image Processing (IPMA)]
(Collision Avoidance and Parking Assist Systems) Parking Aid – Near Field Sensing (MID Line) Circuit
(Cooling System) Engine Cooling – Cooling Fans AJ20D6 Circuit [DI6]
(Cooling System) Engine Cooling – Cooling Fans AJ20P4 Circuit [PI4]
(Cooling System) Engine Cooling – Cooling Fans AJ20P6 Circuit [PI6]
(Cooling System) Engine Cooling – Cooling Fans AJ21D4 Circuit [DI4]
(Cooling System) Engine Cooling – Cooling Fans AJ133 Circuit [PV8]
(Cruise Control) Driver Assistance Systems – Adaptive Cruise Control Circuit [Speed Control]
(Cruise Control) Driver Assistance Systems – ADAS Domain Controller Circuit [Driver Assistance Domain Controller]
(Cruise Control) Driver Assistance Systems – Camera-Active Safety Circuit [Image Processing (IPMA)]
(Differential Assembly) Rear Drive Axle and Differential – Driveline Control Rear Differential Circuit
(Doors, Hood and Trunk) Handles, Locks, Latches and Entry Systems – Ceds – Clear Exit Detection System Circuit [Clear Exit Detection System]
(Doors, Hood and Trunk) Handles, Locks, Latches and Entry Systems – Central Door Locking Circuit [Central Door Locking System]
(Doors, Hood and Trunk) Handles, Locks, Latches and Entry Systems – Passive Entry Circuit [Passive Entry System]
(Doors, Hood and Trunk) Handles, Locks, Latches and Entry Systems – Power Tailgate Circuit [Tailgate – Powered]
(Entertainment Systems) Information and Entertainment System – Infotainment Circuit [Audio System]
(Entertainment Systems) Information and Entertainment System – Infotainment Speakers Base Circuit [6-Speaker System]
(Entertainment Systems) Information and Entertainment System – Infotainment Speakers HI-Line Circuit [11-Speaker System]
(Entertainment Systems) Information and Entertainment System – Infotainment Speakers Premium Circuit [15-Speaker System]
(Fuel Delivery and Air Induction) Fuel Tank and Fuel Lines – Fuel System Diesel AJ20D6 Circuit [DI6]
(Fuel Delivery and Air Induction) Fuel Tank and Fuel Lines – Fuel System Diesel AJ21D4 Circuit [DI4]
(Fuel Delivery and Air Induction) Fuel Tank and Fuel Lines – Fuel System Petrol AJ20P4 Circuit [PI4]
(Fuel Delivery and Air Induction) Fuel Tank and Fuel Lines – Fuel System Petrol AJ20P6 Circuit [PI6]
(Fuel Delivery and Air Induction) Fuel Tank and Fuel Lines – Fuel System Petrol AJ133SC Circuit [PV8]
(Heating and Air Conditioning) Auxiliary Climate Control – Block Heater Circuit [Engine Cooling System Heater]
(Heating and Air Conditioning) Auxiliary Climate Control – Heated Screens Circuit [Heated Windshield]
(Heating and Air Conditioning) Auxiliary Climate Control – Heater Fuel Burning Circuit [Fuel Fired Booster Heater]
(Heating and Air Conditioning) Climate Control – Hevac Circuit
(Horn) Horn – Vehicle Horn Circuit
(Information Bus) Module Communications Network – Architecture Overview Flexray Circuit [Flexray]
(Information Bus) Module Communications Network – Architecture Overview HS Can Body Circuit [CAN Bus – High Speed – Body Systems]
(Information Bus) Module Communications Network – Architecture Overview HS Can HMI Circuit [CAN Bus – High Speed – HMI Systems]
(Information Bus) Module Communications Network – Architecture Overview HS Can ISL Circuit [CAN Bus – High Speed – Isolated System]
(Information Bus) Module Communications Network – Architecture Overview HS Can Power Mode Zero Circuit [CAN Bus – High Speed – Power Mode Zero Systems]
(Information Bus) Module Communications Network – Architecture Overview Vehicle Can UN Circuit [CAN Bus – High Speed – Underbody Systems]
(Information Bus) Module Communications Network – Diagnostic Socket Circuit [Diagnostic Connector]
(Instrument Panel, Gauges and Warning Indicators) Information and Message Center – Driver Information Circuit
(Instrument Panel, Gauges and Warning Indicators) Information and Message Center – Driver Information Head up Display Circuit [Head-up Display]
(Instrument Panel, Gauges and Warning Indicators) Instrument Cluster and Panel Illumination – IP & Switch Illumination Circuit
(Instrument Panel, Gauges and Warning Indicators) Instrument Panel and Console – Accessory Socket Circuit [Accessory Socket(s)]
(Interior Moulding _ Trim) Instrument Panel and Console – Accessory Socket Circuit [Accessory Socket(s)]
(Keyless Entry) Handles, Locks, Latches and Entry Systems – Ceds – Clear Exit Detection System Circuit [Clear Exit Detection System]
(Keyless Entry) Handles, Locks, Latches and Entry Systems – Central Door Locking Circuit [Central Door Locking System]
(Keyless Entry) Handles, Locks, Latches and Entry Systems – Passive Entry Circuit [Passive Entry System]
(Keyless Entry) Handles, Locks, Latches and Entry Systems – Power Tailgate Circuit [Tailgate – Powered]
(Lighting and Horns) Exterior Lighting – Exterior Lighting Circuit
(Lighting and Horns) Exterior Lighting – Trailer Socket (ECE) Circuit [Trailer Socket – 13 Pin]
(Lighting and Horns) Exterior Lighting – Trailer Socket NAS Circuit [Trailer Socket – NAS]
(Lighting and Horns) Interior Lighting – Interior Lighting Circuit
(Locks) Handles, Locks, Latches and Entry Systems – Ceds – Clear Exit Detection System Circuit [Clear Exit Detection System]
(Locks) Handles, Locks, Latches and Entry Systems – Central Door Locking Circuit [Central Door Locking System]
(Locks) Handles, Locks, Latches and Entry Systems – Passive Entry Circuit [Passive Entry System]
(Locks) Handles, Locks, Latches and Entry Systems – Power Tailgate Circuit [Tailgate – Powered]
(Mirrors) Rear View Mirrors – Mirrors Circuit [Mirror Movement]
(Mirrors) Rear View Mirrors – Mirrors Electrochromic Circuit [Electrochromic]
(Parking Brake System) Parking Brake and Actuation – Electric Park Brake Circuit
(Power and Ground Distribution) Battery, Mounting and Cables – Earth Distribution Circuit [Ground Distribution]
(Power and Ground Distribution) Battery, Mounting and Cables – Power Distribution Battery Junction Box Circuit [Battery Junction Box]
(Power and Ground Distribution) Battery, Mounting and Cables – Power Distribution BCM Circuit [Body Control Module_Gateway Module Assembly]
(Power and Ground Distribution) Battery, Mounting and Cables – Power Distribution EJB Circuit [Engine Junction Box – Front]
(Power and Ground Distribution) Battery, Mounting and Cables – Power Distribution Engine Compartment Circuit [Engine Junction Box – Rear]
(Power and Ground Distribution) Battery, Mounting and Cables – Power Distribution Passenger Compartment Circuit [Passenger Junction Box]
(Power and Ground Distribution) Battery, Mounting and Cables – Power Distribution RJB Circuit [Rear Junction Box]
(Power and Ground Distribution) Module Communications Network – Architecture Overview Flexray Circuit [Flexray]
(Power and Ground Distribution) Module Communications Network – Architecture Overview HS Can Body Circuit [CAN Bus – High Speed – Body Systems]
(Power and Ground Distribution) Module Communications Network – Architecture Overview HS Can HMI Circuit [CAN Bus – High Speed – HMI Systems]
(Power and Ground Distribution) Module Communications Network – Architecture Overview HS Can ISL Circuit [CAN Bus – High Speed – Isolated System]
(Power and Ground Distribution) Module Communications Network – Architecture Overview HS Can Power Mode Zero Circuit [CAN Bus – High Speed – Power Mode Zero Systems]
(Power and Ground Distribution) Module Communications Network – Architecture Overview Vehicle Can UN Circuit [CAN Bus – High Speed – Underbody Systems]
(Power and Ground Distribution) Module Communications Network – Diagnostic Socket Circuit [Diagnostic Connector]
(Power Steering) Power Steering – EPAS Circuit
(Powertrain Management) Electronic Engine Controls – PI4 – Engine Management Petrol AJ20P4 Circuit [PHEV]
(Powertrain Management) Electronic Engine Controls – PI4 – Engine Management Petrol AJ20P4 Vehicle Circuit
(Restraints and Safety Systems) Supplemental Restraint System – Occupancy Classification Sensor Circuit [Occupant Sensing]
(Restraints and Safety Systems) Supplemental Restraint System – SRS Circuit
(Seats) Seating – Seat Heat Circuit [Heated]
(Seats) Seating – Seats Climatic Circuit [Climate Controlled]
(Seats) Seating – Seats Electric Memory Circuit [Memory]
(Seats) Seating – Seats Electric Non Memory Circuit [Non-Memory]
(Seats) Seating – Seats Electric-Rear Circuit [Rear]
(Seats) Seating – Sport Pack – Seats Climatic Sports Seat Circuit
(Starting System) Starting System – PI4 – Starting Petrol Non TSS Circuit
(Steering Column) Steering Column – Heated Steering Wheel Circuit [Steering Wheel – Heated]
(Steering Column) Steering Column – Rotary Coupler Circuit [Clockspring]
(Steering Column) Steering Column – Steering Column Adjust Circuit [Adjustable]
(Sunroof _ Moonroof) Roof Opening Panel – Sunroof Circuit
(Suspension Control ( Automatic – Electronic )) Ride and Handling Optimization – Terrain Optimisation Circuit [Terrain Response]
(Suspension Control ( Automatic – Electronic )) Vehicle Dynamic Suspension – Chassis Control System Circuit
(Wheels and Tires) Wheels and Tires – Tyre Pressure Monitoring Circuit [Tire Pressure Monitoring System]
(Windows and Glass) Glass, Frames and Mechanisms – Window Lift Circuit [Window Lift]
(Wiper and Washer Systems) Wipers and Washers – Washers & Wipers Circuit
