Name: John Deere 492 493 494 592 594 692 693 694 892 893 894 1092 1290 1291 1293 Corn Heads Diagnostic Manual TM2168
SKU: 615407
Availability: InStock

John Deere 492 493 494 592 594 692 693 694 892 893 894 1092 1290 1291 1293 Corn Heads Diagnostic Manual TM2168 (1)

John Deere 492 493 494 592 594 692 693 694 892 893 894 1092 1290 1291 1293 Corn Heads Diagnostic Manual TM2168 (2)

John Deere 492 493 494 592 594 692 693 694 892 893 894 1092 1290 1291 1293 Corn Heads Diagnostic Manual TM2168 (3)

John Deere 492 493 494 592 594 692 693 694 892 893 894 1092 1290 1291 1293 Corn Heads Diagnostic Manual TM2168 (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

John Deere 492 493 494 592 594 692 693 694 892 893 894 1092 1290 1291 1293 Corn Heads Diagnostic Manual TM2168

Format: PDF

Language: English

Brand: John Deere

Type Of Manual: Diagnostic Manual

Type of Machine: Corn Head

Model: John Deere 492 493 494 592 594 692 693 694 892 893 894 1092 1290 1291 1293 Corn Head

Serial Number: 705101-

Part Number: TM2168

30 USD

Tags: 1092, 1290, 1291, 1293, 492, 493, 494, 592, 594, 692, 693, 694, 892, 893, 894, John Deere Corn Heads Manual, John Deere Diagnostic Manual, TM2168

Description

Description

Contents:
Introduction
Foreword
General
Safety
Header Identification
Specifications
Diagnostic and Testing Procedures
Diagnostic Trouble Codes
E01 – Header Control Unit Diagnostic Trouble Codes
Observable Symptoms
Electrical System
Drive System
Hydraulic System
Electrical System
How To Use This Diagnostic Information
Diagnostic Trouble Codes Warning Messages and Fault Codes
Active Header Height Control Type Identification
Active Header Height Control System – Height Sensing Diagnostics – Type A
Active Header Height Control System – Height Sensing Diagnostics – Type B
CONTOUR MASTER Diagnostics
Deck Plate Diagnostics Type Identification
Deck Plate Diagnostics – Type A
Deck Plate Diagnostics – Type B
Header Identification Jumper Diagnostics

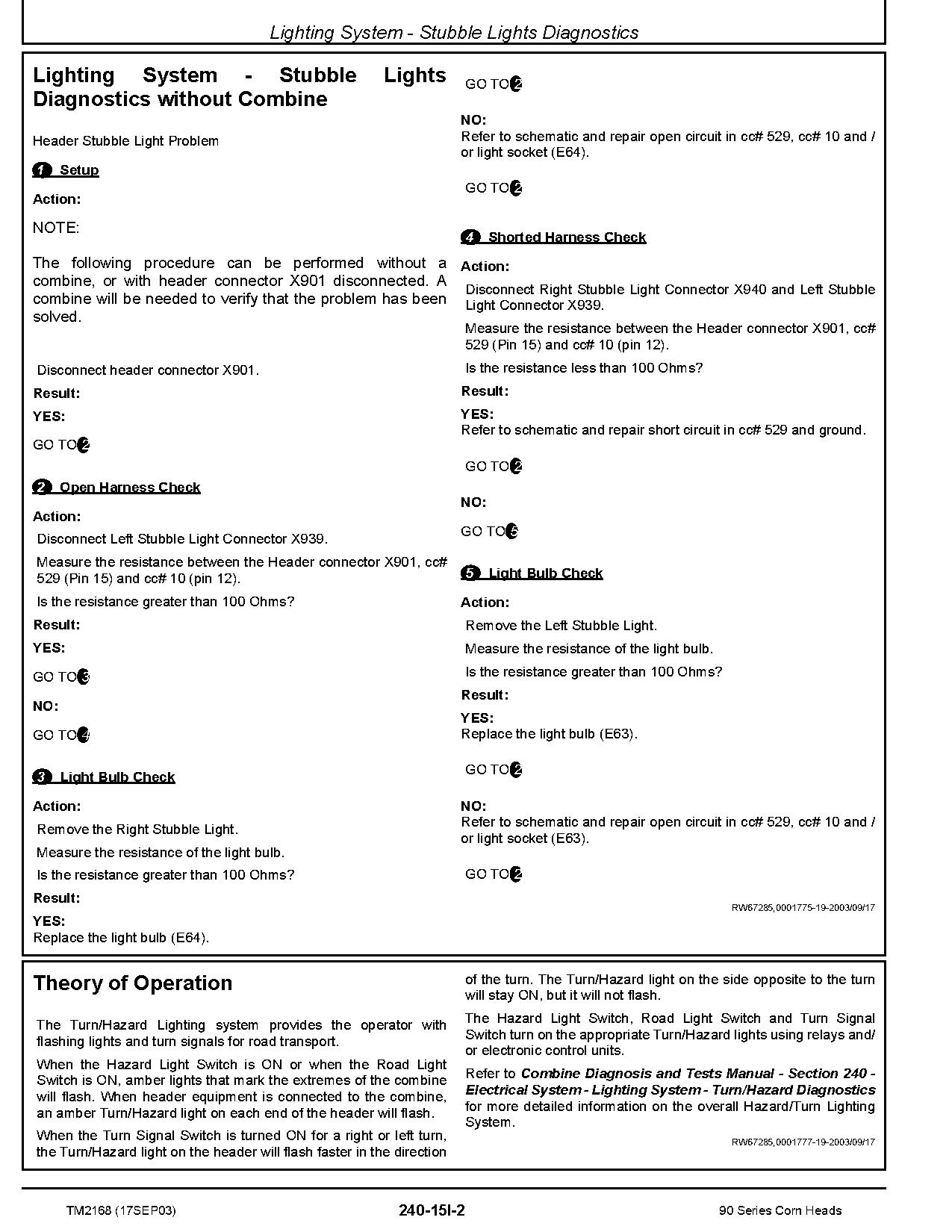

Lighting System – Stubble Lights Diagnostics
Lighting System – Turn/Hazard Lights Diagnostics
Connector Information
Circuit Code Listing
Connector Repair Procedures
Drive System
General Information
Drive System Diagnostics

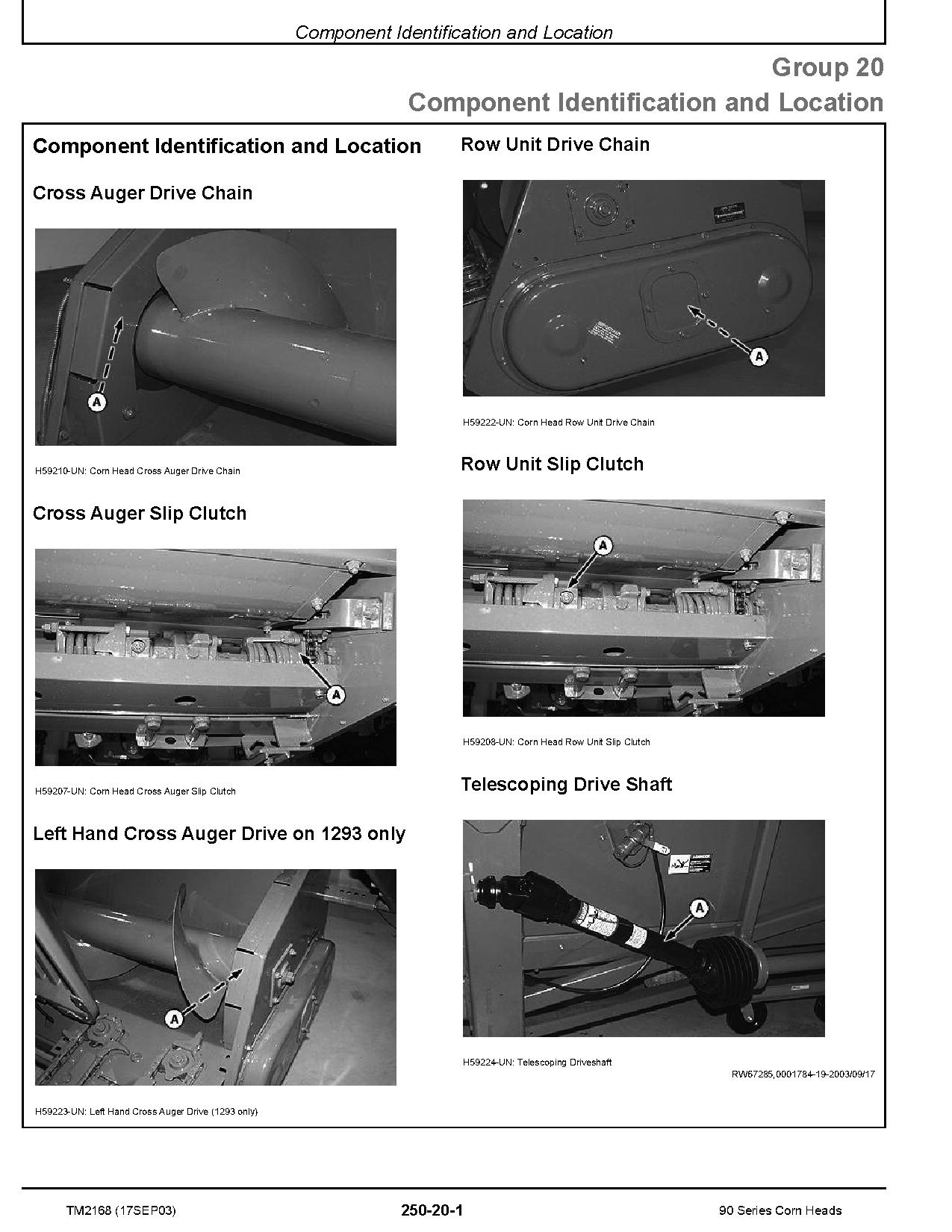

Component Identification and Location
Hydraulic System
General Information

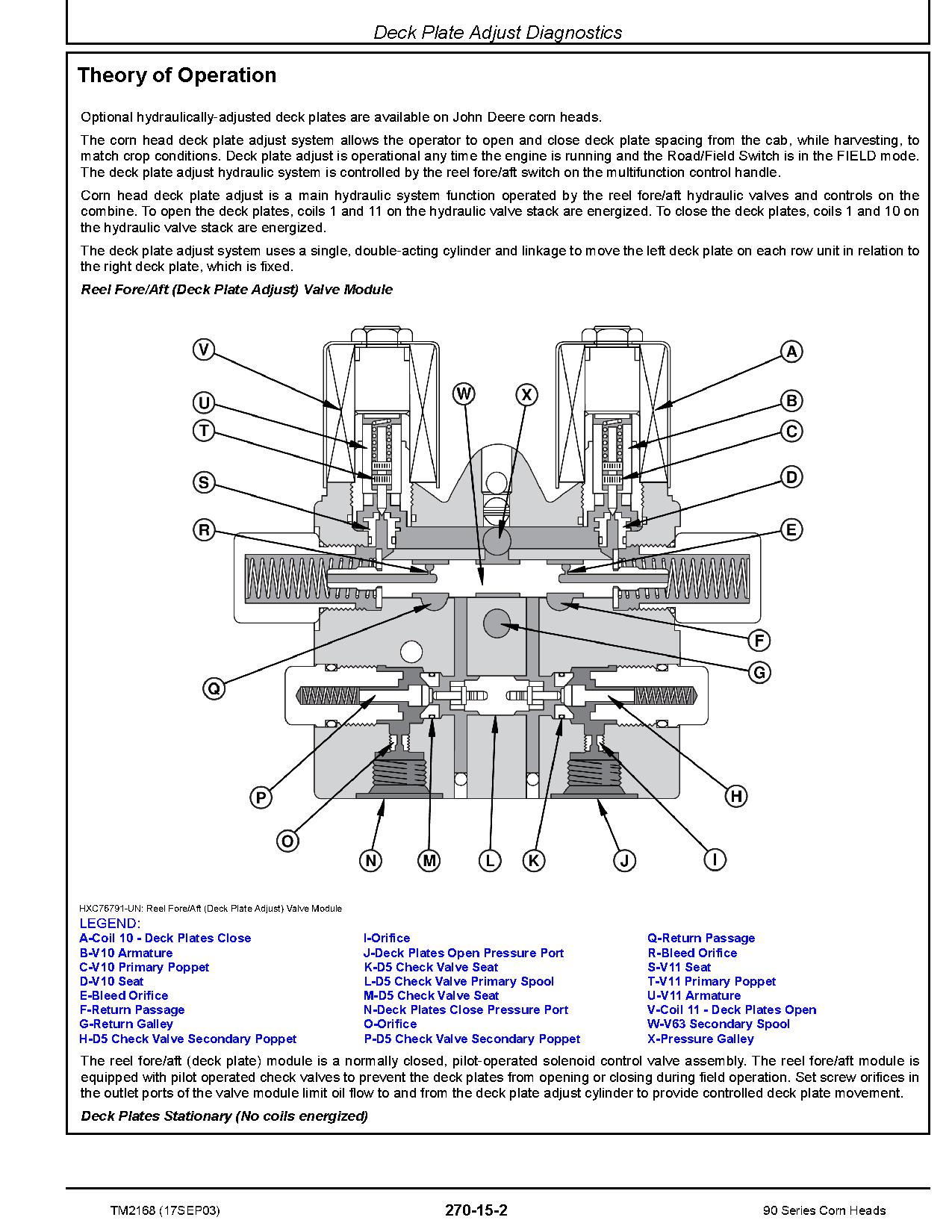

Deck Plate Adjust Diagnostics
Component Identification and Location
