Name: John Deere Tractors 6120 to 6520L Diagnosis And Tests Service Manual TM4646
SKU: 530578
Price: 50.00 USD
Availability: InStock

John Deere Tractors 6120 to 6520L Diagnosis And Tests Service Manual TM4646 (1)

John Deere Tractors 6120 to 6520L Diagnosis And Tests Service Manual TM4646 (2)

John Deere Tractors 6120 to 6520L Diagnosis And Tests Service Manual TM4646 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

John Deere Tractors 6120 to 6520L Diagnosis And Tests Service Manual TM4646

Size: 43.20 MB

Format: PDF

Language: English

Brand: John Deere

Type of Machine: Tractors

Type of Manual: Diagnosis And Tests Service Manual, Electric Schematics

Model: John Deere 6120 6220 6320 6420 6120L 6220L 6320L 6420L 6520L Tractors

Part Number: TM4646

Publication Date: 2006

Number of Pages: 4872 Pages

50 USD

Tags: 6120, 6520L, John Deere Service Manual, John Deere Tractors Manual, TM4646, Tractors

Description

Description

Contents:
Foreword
Version Date
Section 210 – General Information
Group 05 – Safety Measures
Group 15 – General References
Section 220 – Engine
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Section 230 – Fuel, Air Intake And Cooling Systems

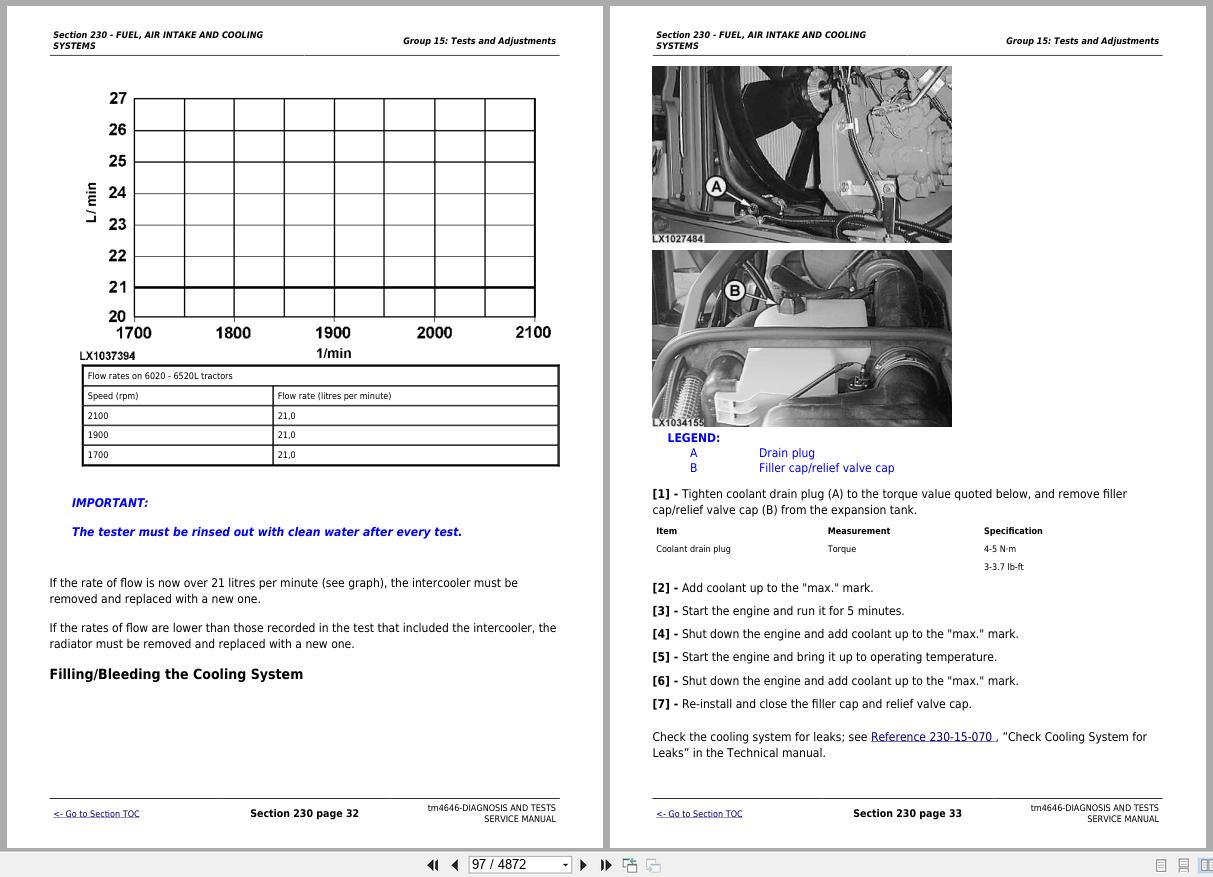

Group 15 – Tests And Adjustments
Group 20 – Operation
Section 240 – Electrical System
Group 10 – Sub-System Diagnostics (Cab)
Group 10a – Sub-System Diagnostics (Open Operator′S Station)
Group 15 – Component Tests

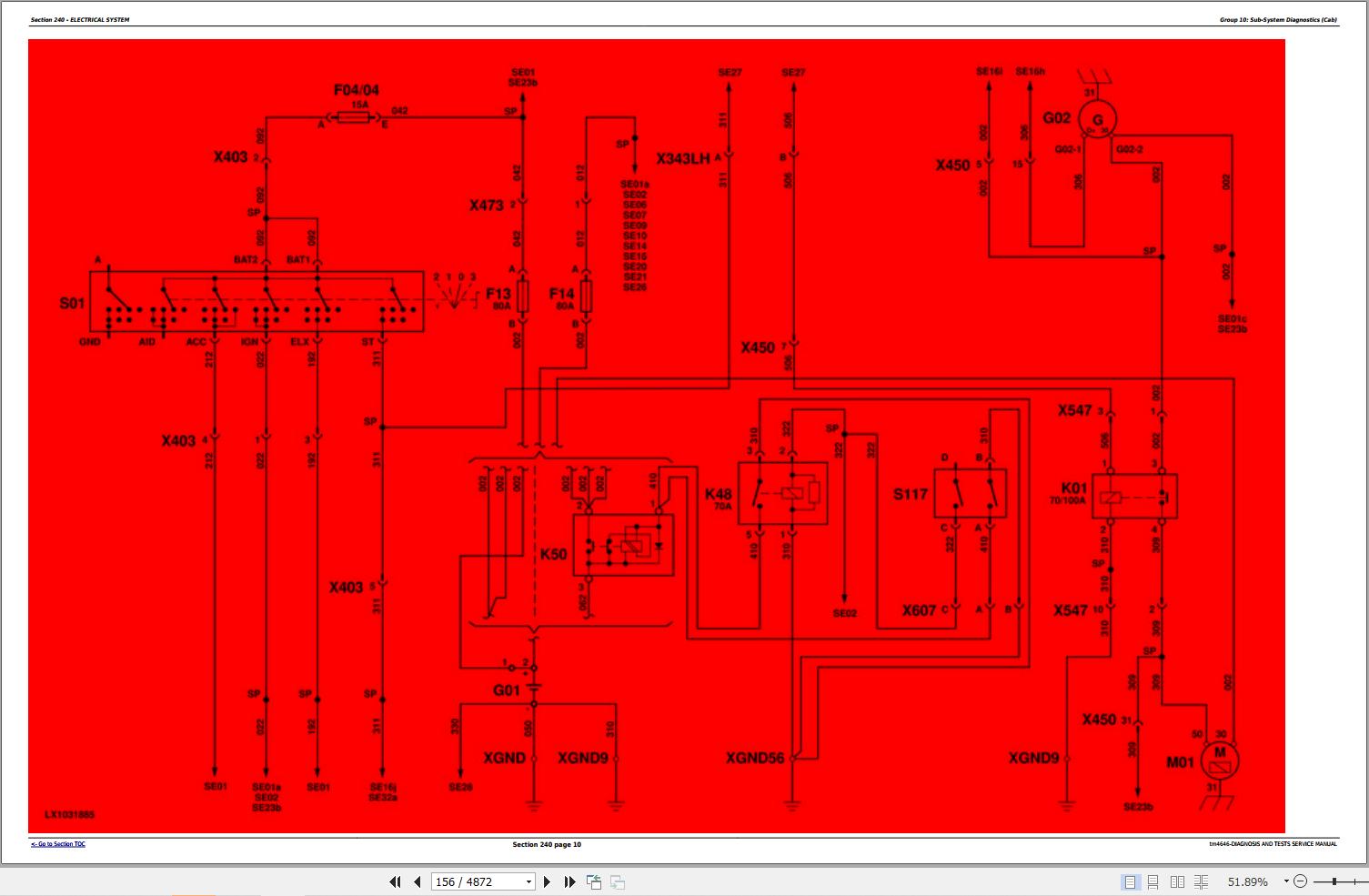

Group 25 – Functional Schematics (Autopowr/Ivt Transmission)
Group 25a – Functional Schematics (Powrquad Plus, Autoquad And Autoquad Plus Transmissions)
Group 25b – Functional Schematics (Open Operator′S Station)
Group 26 – Summary Of Wiring Harnesses
Group 26a1 – Wiring Harnesses
Group 26a2 – Wiring Harnesses (Continued)
Group 26b1 – Wiring Harnesses From Serial Number 398656
Group 26b2 – Wiring Harnesses From Serial Number 398656 (Continued)
Section 245 – Electronic Control Units
Group 05 – Operation And General Information On Diagnostics
Group 20 – Data Bus Systems, Theory Of Operation
Group Atc – Atc – Automatic Temperature Control Unit
Group Bcu – Bcu – Basic Control Unit
Group Bif – Bif – Basic Informator
Group Ecu – Ecu – Engine Control Unit
Group Epc – Epc – Control Unit For Powrquad Plus, Autoquad And Autoquad Plus Transmissions
Group Jdl – Jdl Control Unit For Jdlink
Group Plc – Plc – Park Lock Controller
Group Prf – Prf – Performance Monitor
Group Sfa – Sfa – Control Unit For Front-Wheel Drive Axle And Cab Suspension
Group Sic – Sic – Control Unit For Electrically Actuated Selective Control Valves
Group Ssu – Ssu – Control Unit For Autotrac
Group Tcu – Tcu – Control Unit For Autopowr/Ivt Transmission
Group Tec – Tec – Control Unit For Tractor Equipment Interface
Group Uic – Uic – User Interface Controller
Group Uim – Uim – User Interface Module, Keyboard For Isobus Display
Section 250 – Syncroplus Transmission
Group 05 – Introductory Checks
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 251 – Power Reverser Transmission
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 253 – Autopowr/Ivt Transmission
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 255 – Powrquad, Powrquad Plus, Autoquad And Autoquad Plus Transmissions
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 256 – Drive Systems
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 260 – Steering And Brakes
Group 05 – Introductory Checks
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 270 – Hydraulic System
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 280 – Miscellaneous
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 290 – Operator′S Cab
Group 10 – Operational Check-Out
Group 15 – Tests And Adjustments
Group 20 – Operation
Section 299 – Special Tools
Group 05 – Special Tools (Dealer-Fabricated)
Group 10 – Special Tools And Test Equipment
