Name: Kobelco Crawler Crane CK2750G-2 Parts Catalog S3JD05101ZO01
SKU: 442750
Availability: InStock

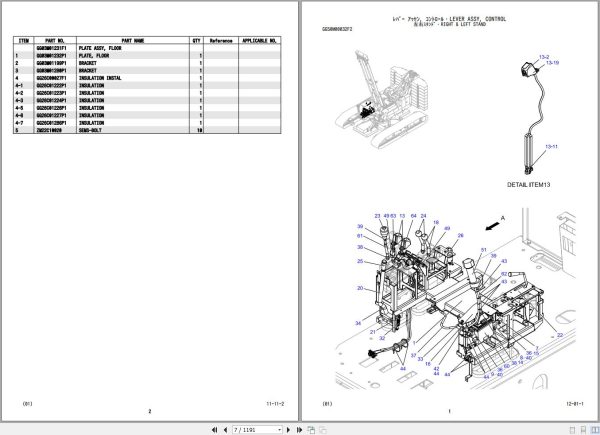

Kobelco Crawler Crane CK2750G 2 Parts Catalog S3JD05101ZO01 1

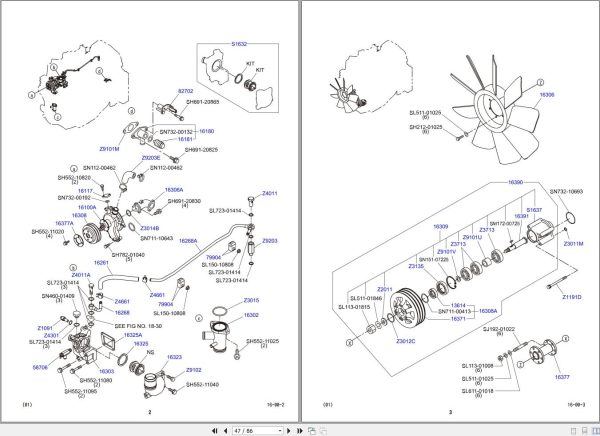

Kobelco Crawler Crane CK2750G 2 Parts Catalog S3JD05101ZO01 2

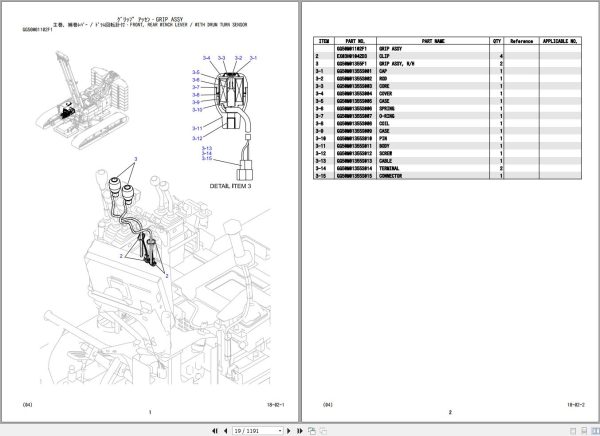

Kobelco Crawler Crane CK2750G 2 Parts Catalog S3JD05101ZO01 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Kobelco Crawler Crane CK2750G-2 Parts Catalog S3JD05101ZO01

Size: 216.40 MB

Format: PDF

Language: English

Brand: Kobelco

Type of Machine: Crawler Crane

Type of Manual: Parts Catalog, Parts Catalog, Parts List

Model: Kobelco CK2750G-2 Crawler Crane

Book Number: S3JD05101ZO01

100 USD

Tag: Kobelco Crane Manual

Description

Description

List of Files:
Kobelco Crawler Crane CK2750G-2 Parts Catalog S3JD05101ZO01.pdf (1191 Pages)
Hino Engine P11CVN-KSFD Parts Catalog.pdf (86 Pages)
Kobelco CK2750G-2 Hydraulic Components Parts Catalog S4GG05101ZO.pdf (570 Pages)
Detail Contents:
Kobelco Crawler Crane CK2750G-2 Parts Catalog S3JD05101ZO01.pdf (1191 Pages)
1. Control Device
2. Front, Rear Winch
3. Boom Winch
4. Swing Device
5. Driving Device
6. Hydraulic Lines
7. Electric Lines
8. Cab / Guard / Platform
9. Frame 1 Counterweight
10. Gantry
11. Lower Device
12. Crane Attachment
13. Luffing Jib Attachment
14. Guy Cable / Rope / Hook
15. Safety Device
16. Third Winch (Opt.) / Jib Winch
17. Tagline (Opt.)
18. Reeving Winch (Opt.)
19. Label
20. Others
Hino Engine P11CVN-KSFD Parts Catalog.pdf (86 Pages)
Cylinder Head
Cylinder Block
Timing Gear Cover & Flywheel Housing
Main Moving Parts
Camshaft & Idle Gea8
Valve System
Air Intake & Exhaust System
Exhaust Brake Cylinder
Lubrication
Fuel System
Cooling System
Engine Control System
Air Compressor & Steering Oil Pump
Electrical Parts
Turbocharger
Engine Accessory Parts
Gasket Kit (Engine Overhaul)
Kobelco CK2750G-2 Hydraulic Components Parts Catalog S4GG05101ZO.pdf (570 Pages)
1. Pump Group
2. Motor Group
3. Cylinder Group
4. Valve Group
5. Others Group
