Name: Kobelco Crawler Crane CK2750G Parts Catalog S3JD04101ZO01
SKU: 442742
Price: 100.00 USD
Availability: InStock

Kobelco Crawler Crane CK2750G Parts Catalog S3JD04101ZO01 1

Kobelco Crawler Crane CK2750G Parts Catalog S3JD04101ZO01 2

Kobelco Crawler Crane CK2750G Parts Catalog S3JD04101ZO01 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Kobelco Crawler Crane CK2750G Parts Catalog S3JD04101ZO01

Size: 180.71 MB

Format: PDF

Language: English

Brand: Kobelco

Type of Machine: Crawler Crane

Type of Manual: Parts Catalog, Parts Catalog, Parts List

Model: Kobelco Crawler Crane

Book Number: S3JD04101ZO01

100$ USD

Tag: Kobelco Crane Manual

Description

Description

List of Files:

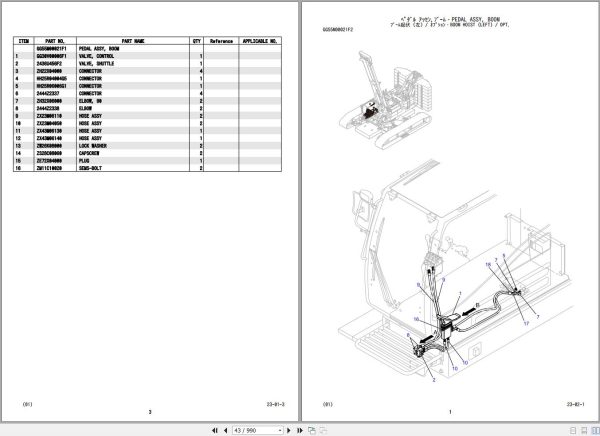

Kobelco Crawler Crane CK2750G Parts Catalog S3JD04101ZO01.pdf (990 Pages)
Hino Engine P11CVC-KSFB Parts Catalog.pdf (81 Pages)
Kobelco A81 Hydraulic Components Parts Catalog S4GG04101ZO.pdf (451 Pages)
Detail Contents:
Kobelco Crawler Crane CK2750G Parts Catalog S3JD04101ZO01.pdf (990 Pages)
1. Control Device
2. Front Rear Winch
3. Boom Winch
4. Swing Device
5. Driving Device
6. Hydraulic Lines
7. Electric Lines
8. Cab / Guard / Platform
9. Frame / Counterweight
10. Gantry
11. Lower Device
12. Crane Attachment
13. Luffing Jib Attachment
14. Guy Cable / Rope / Hook
15. Safety Device
16. Third Winch (Opt.) / Jib Winch
17. Tagline (Opt.)
18. Reeving Winch (Opt.)
19. Label
20. Others
Hino Engine P11CVC-KSFB Parts Catalog.pdf (81 Pages)
Cylinder Head
Cylinder Block
Timing Gear Cover & Flywheel Housing
Main Moving Parts
Camshaft & Idle Gear
Valve System
Air Intake & Exhaust System
Exhaust Brake Cylinder
Lubrication
Fuel System
Cooling System
Engine Control System
Air Compressor & Steering Oil Pump
Electrical Parts (Engine)
Turbocharge-8
Engine Accessory Parts
Gasket Kit (Engine Overhaul)
Kobelco A81 Hydraulic Components Parts Catalog S4GG04101ZO.pdf (451 Pages)
1. Pump Group
2. Motor Group
3. Cylinder Group
4. Valve Group
5. Others Group
