Komatsu Hydraulic Excavator PC200-11M0 to PC235HD-11M0 Parts Book YCPB202500-01 2024 EN ZH

Description

Contents:
ENGINE CYLINDER HEAD AND ITS RELATED PARTS 发动机气缸盖及其相关部品 33
Cylinder Head
Cylinder Head Cover
Lifting Bracket Mounting
Lifting Bracket
Air Intake Port Cover
Air Intake Connector
Air Transfer Connection
Exhaust Manifold Mounting
Exhaust Manifold
Variable Geometry Turbocharger (VGT)
Variable Geometry Turbocharger (VGT) Oil Piping
Heat Shield
Exhaust Gas Re-circulation (EGR) Cooler Air Piping
Exhaust Gas Re-circulation (EGR) Cooler Water Piping
Exhaust Gas Re-circulation (EGR) Valve and Cooler
Exhaust Gas Re-circulation (EGR) Cooler
Coolant Piping Related Parts
Coolant Adapter
Variable Geometry Turbocharger (VGT) Related Parts
Exhaust Connector Clamp
Hydraulic Pump Piping
ENGINE CYLINDER BLOCK AND ITS RELATED PARTS 发动机缸体及其相关部品 55
Cylinder Block
Engine Oil Pan
Engine Oil Pan Drain
Front Gear Cover
Dust Seal
Rocker Arm
Tappet
Flywheel Housing
Flywheel
Flywheel Mounting
Engine Oil Level Sensor
Crankshaft
Vibration Damper
Piston and Connecting Rod
Breather Related Parts
Oil Level Gauge
Rear Gear Housing
Parts Performance (Camshaft)
ENGINE LUBRICATION SYSTEM 发动机润滑系统 74
Lubrication Oil Pump
Engine Oil Filter and Piping
Engine Oil Cooler
Engine Coolant Vent发动机冷却液排气孔 ARP00-001001 78
ENGINE FUEL SYSTEM 发动机燃油系统 79
Fuel System Cover
Fuel Injection Piping (Connector)
Fuel Injection Piping (Common Rail)
Fuel System Related Parts
Fuel Supply Pump
Fuel Filter
Fuel Filter Piping
Fuel Piping
Fuel Filter Cartridge
Fuel Drain Piping
目录
CONTENTS
23FIG No.
图号
PAGE
页码
Parts Performance (Injector)
ENGINE COOLING SYSTEM 发动机冷却系统 91
Thermostat
Water Pump
Water Pump Mounting
Cooling Fan Belt (For 60Amp. Alternator)
Cooling Fan Belt (For 85Amp. Alternator)
Cooling Fan Belt Tensioner
Cooling Fan Drive Pulley
Water Outlet Connector
Water Inlet Connector
Coolant Heater Plug
Hydraulic Pump
ENGINE ELECTRICAL SYSTEM 发动机电气系统 103
Alternator (For 60Amp.) (Inner Parts、 Alternator)
Alternator (For 60Amp.) (Mounting)
Alternator (For 85Amp.) (Inner Parts、 Alternator)
Alternator (For 85Amp.) (Mounting)交流发电机（85Amp.）（安装） A6020-002002 107
Starting Motor (For 4.5KW Starting Motor) (Inner Parts、 Starting Motor)
Starting Motor (For 5.5KW Starting Motor) (Inner Parts、 Starting Motor)
Starting Motor Mounting (For 4.5KW Starting Motor)
Starting Motor Mounting (For 5.5KW Starting Motor)
Wiring Harness
Electrical Parts (Bolt)
Wiring Harness Cover
Wiring Harness Clip
ENGINE ACCESSORIES AND OTHERS 发动机附属部品及其他 118
Engine Controller
Engine Control Module
FIELD REPAIR SERVICE PARTS 现场维修服务部品 121
Repair Service Parts
ENGINE RELATED PARTS 发动机相关部品 124
Hydraulic Pump (Damper)
Hydraulic Pump (Oil Filter Related Parts)
Hydraulic Pump (Piston Pump) (1/12)
Hydraulic Pump (Piston Pump) (2/12)
Hydraulic Pump (Piston Pump) (3/12)
Hydraulic Pump (Piston Pump) (4/12)
Hydraulic Pump (Piston Pump) (5/12)
Hydraulic Pump (Piston Pump) (6/12)
Hydraulic Pump (Piston Pump) (7/12)
Hydraulic Pump (Piston Pump) (8/12)
Hydraulic Pump (Piston Pump) (9/12)
Hydraulic Pump (Piston Pump) (10/12)
Hydraulic Pump (Piston Pump) (11/12)
Hydraulic Pump (Piston Pump) (12/12)
Engine Mounting
Air Cleaner (Inner Parts、 Air Cleaner)
Air Cleaner (Air Cleaner Mounting)
Air Cleaner (Komatsu Closed Crankcase Ventilation (KCCV))
24FIG No.
Air Cleaner (Komatsu Closed Crankcase Ventilation (KCCV) Piping)
Exhaust Pipe (Bracket)
Exhaust Pipe (Inner Parts、 Komatsu Diesel Particulate Filter (KDPF))
Exhaust Pipe (Komatsu Diesel Particulate Filter (KDPF) Mounting)
Exhaust Pipe (Guard)
Exhaust Pipe (Plug)
Exhaust Pipe (Drain Piping)
Exhaust Pipe (Tube and Bracket)
Coolant Filter (Inner Parts)
Coolant Filter (Related Parts)
Coolant Filter (Piping)
COOLING SYSTEM 冷却系统 156
Cooling System (Radiator) (PC200-11M0, PC200LC-11M0)
Cooling System (Oil Cooler) (PC200-11M0, PC200LC-11M0)
Cooling System (Aftercooler and Shroud) (PC200-11M0, PC200LC-11M0)
Cooling System (Fuel Cooler and Condenser) (PC200-11M0, PC200LC-11M0)
Cooling System (Aftercooler and Radiator Piping) (PC200-11M0, PC200LC-11M0)
Cooling System (Fan Guard) (PC200-11M0, PC200LC-11M0)
Cooling System (Oil Cooler Piping) (PC200-11M0, PC200LC-11M0)
Cooling System (Cover) (PC200-11M0, PC200LC-11M0)
Cooling System (Sensor) (PC200-11M0, PC200LC-11M0)
Cooling System (Reservoir Tank) (PC200-11M0, PC200LC-11M0)
Cooling System (Radiator) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Oil Cooler) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Aftercooler and Shroud) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Fuel Cooler and Condenser) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Aftercooler and Radiator Piping) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Fan Guard) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Oil Cooler Piping) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Cover) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Sensor) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Cooling System (Reservoir Tank) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Fan Clutch
25FIG No.
FUEL SYSTEM 燃油系统 178
Fuel Tank
Fuel Piping (Piping)
Fuel Piping (Bracket and Clip)
Fuel Piping (Inner Parts、 Fuel Prefilter)
Fuel Piping (Fuel Prefilter Mounting)
Fuel Piping (Cover)
Frame
ELECTRICAL SYSTEM 电气系统 188
Battery
Electric Wiring Harness (Starting Wiring Harness Clamp)
Electric Wiring Harness (Main Wiring Harness Clamp) (1/4)
Electric Wiring Harness (Main Wiring Harness Clamp) (2/4)
Electric Wiring Harness (Main Wiring Harness Clamp) (3/4)
Electric Wiring Harness (Main Wiring Harness Clamp) (4/4)
Electric Wiring Harness (Engine Wiring Harness) (1/2)
Electric Wiring Harness (Engine Wiring Harness) (2/2)
Electric Wiring Harness (LED Lamp) (Working Lamp)
Additional Working Lamp (LED Lamp)
Horn
Travel Alarm
Rearview Camera (1/2) (PC200-11M0, PC200LC-11M0)
Rearview Camera (2/2) (PC200-11M0, PC200LC-11M0)
Rearview Camera (1/2) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Rearview Camera (2/2) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)

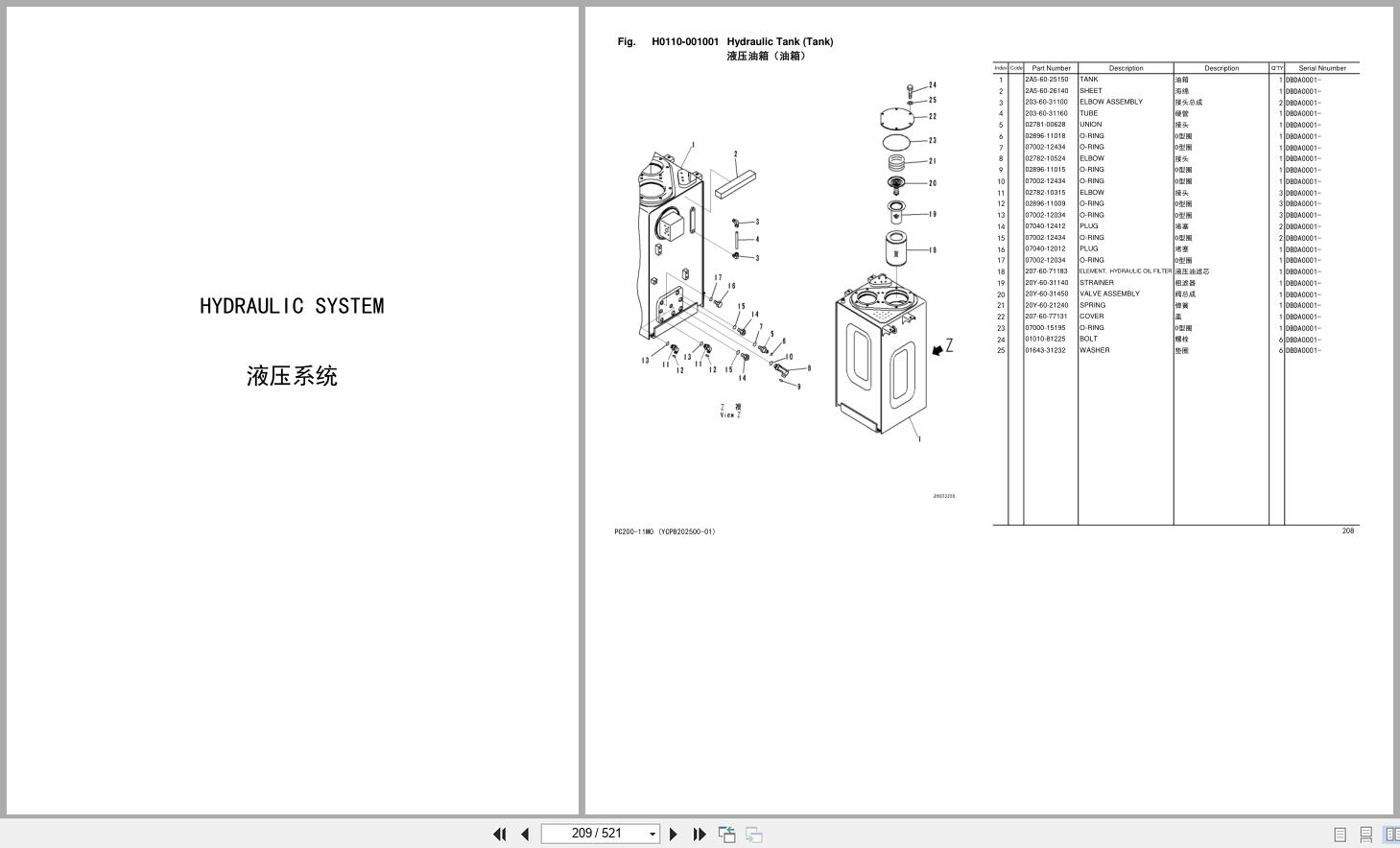

HYDRAULIC SYSTEM 液压系统 207
Hydraulic Tank (Tank)
Hydraulic Tank (Breather)
Control Valve (6-Spool) (1/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (2/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (3/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (4/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (5/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (6/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (7/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (8/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (9/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (10/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (11/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (12/18) (PC200-11M0, PC200LC-11M0)
26FIG No.
Control Valve (6-Spool) (13/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (14/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (15/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (16/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (17/18) (PC200-11M0, PC200LC-11M0)
Control Valve (6-Spool) (18/18) (PC200-11M0, PC200LC-11M0)
Control Valve (Connecting Parts) (1/2) (PC200-11M0, PC200LC-11M0)
Control Valve (Slow Return Valve) (PC200-11M0, PC200LC-11M0)
Control Valve (Connecting Parts) (2/2) (PC200-11M0, PC200LC-11M0)
Control Valve (Valve Bracket and Sensor) (PC200-11M0, PC200LC-11M0)
Control Valve (7-Spool) (1/21)
Control Valve (7-Spool) (2/21)
Control Valve (7-Spool) (3/21)
Control Valve (7-Spool) (4/21)
Control Valve (7-Spool) (5/21)
Control Valve (7-Spool) (6/21)
Control Valve (7-Spool) (7/21)
Control Valve (7-Spool) (8/21)
Control Valve (7-Spool) (9/21)
Control Valve (7-Spool) (10/21)
Control Valve (7-Spool) (11/21)
Control Valve (7-Spool) (12/21)
Control Valve (7-Spool) (13/21)
Control Valve (7-Spool) (14/21)
Control Valve (7-Spool) (15/21)
Control Valve (7-Spool) (16/21)
Control Valve (7-Spool) (17/21)
Control Valve (7-Spool) (18/21)
Control Valve (7-Spool) (19/21)
Control Valve (7-Spool) (20/21)
Control Valve (7-Spool) (21/21)
Control Valve (With 1-Service Valve) (Connecting Parts) (1/2)
Control Valve (Slow Return Valve)
Control Valve (With 1-Service Valve) (Connecting Parts) (2/2) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Control Valve (With 1-Service Valve) (Valve Bracket and Sensor) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Control Valve (With Breaker Piping) (Connecting Parts) (2/2)
Control Valve (With Breaker Piping) (Valve Bracket and Sensor)
Hydraulic Pump Related Parts
Hydraulic Pump Related Parts (1-Additional Actuator Piping、 Accumulator)
Suction Piping
Delivery Piping
Oil Cooler Piping
Return Piping
Return Piping (1-Additional Actuator Piping、 Accumulator)
Drain Piping
27FIG No.
Boom Piping (PC200-11M0, PC200LC-11M0)
Boom Piping (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Arm and Bucket Piping
Breaker Piping (Piping、 L.H.)
Breaker Piping (Piping、 R.H.)
Breaker Piping (Return Piping)
Breaker Piping (Pilot Filter)
Travel Piping
Swing Piping
LS Piping
LS Piping (With 1-Additional Actuator Piping、 Accumulator)
Solenoid Valve (Related Parts)
Solenoid Valve (Piping)
Solenoid Valve (Mounting)
Solenoid Valve (Piping) (With 1-Service Valve)
Solenoid Valve (Mounting) (With 1-Service Valve)
Solenoid Valve (With Breaker Piping、 Accumulator) (Piping)
Solenoid Valve (With Breaker Actuator Piping、 Accumulator) (Mounting)
Solenoid Valve (With Breaker Actuator Piping、 Accumulator) (Connector)
Pressure Switch Block (Block)
Pressure Switch Block (Slow Return Valve)
Pressure Switch Block (Bracket)
Proportional Pressure Control (PPC) Main Piping
FRAME AND ITS RELATED PARTS 转台及其相关部品 293
Revolving Frame (PC200-11M0, PC200LC-11M0)
Revolving Frame (Deck Guard) (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Boom Foot Pin
OPERATOR’S COMPARTMENT AND CONTROL SYSTEM 驾驶室和控制系统 297
Operator’s Seat (GRAMMER Seat)
Front Guard (Half Guard)
Floor Mat
Floor Mat (1-Additional Actuator Piping、 Accumulator)
Window Washer
Air Conditioner (Compressor)
Air Conditioner (Compressor Mounting)
Air Conditioner (Cooler Piping)
Air Conditioner (Heater Piping)
Air Conditioner (V-Belt)
Extinguisher Bracket
Cab (Cab Body and Window)
Cab (Front Window)
Cab (Front Lower Window)
Cab (Roof Ventilator)
Cab (Door)
Cab (Door Lock)
Cab (Open Lock and Door Catch)
Cab (Wiper and Room Lamp)
Cab (Inner Parts、 Rubber Antenna)
Cab (Speaker and Window Washer Hose)
Cab (Roof Cover、 Hanger、 Drink Holder and Air Intake)驾驶室（天窗顶、挂钩、杯架及进气口） K1110-001011 320
Cab (Grip)
Cab (KOMTRAX Antenna)
28FIG No.
Cab (KOMATSU Mark)
Cab (Cab In Parts、 Console Cover、 Front、 R.H.)驾驶室（驾驶室内部部品、操控台盖、前、右） K1110-001015 324
Cab (Cab In Parts、 Monitor Cover)
Cab (Cab In Parts、 Washer Hose Mounting)
Cab (Cab In Parts、 Luggage Plate and Cigarette Lighter)
Cab (Cab In Parts、 Air Duct)
Cab (Cab In Parts、 Air Duct and Fresh Air Filter)
Cab (Cab In Parts、 Partition and Recirculation Air Filter)
Cab (Cab In Parts、 Pump Controller and Relay)
Cab (Cab In Parts、 Air Conditioner Controller)
Cab (Cab In Parts、 Main Wiring Harness Clamp)
Cab (Cab In Parts、 Rear Cover)
Cab (Cab In Parts、 Rear Cover、 With 12V Converter)
Cab (Cab In Parts、 Cab Mounting)
Cab (Cab In Parts、 Monitor and Controller)
Cab (Floor、 Frame)
Cab (PPC Valve) (1/3)
Cab (Floor、 Travel Control Lever)
Cab (Floor、 Footrest、 L.H.)
Cab (Floor、 Footrest、 R.H.)
Cab (PPC Valve) (For Attachment)
Cab (Floor、 1st Attachment Control) ( Breaker Piping)
Cab (Floor、 Base)
Cab (Floor、 Wiring Harness)
Cab (Floor、 Battery Cable)
Cab (Floor、 KomVision Harness)
Cab (Floor、 Wiring Harness Clamp and Ground)
Cab (Floor、 Window Washer Hose)
Cab (Floor、 Work Equipment Control Lever、 L.H.)
Cab (PPC Valve) (2/3)
Cab (Floor、 PPC Valve Mounting for Work Equipment、 L.H.)
Cab (Floor、 Console、 L.H.)
Cab (Floor、 Radio and Work Equipment Lock Lever)
Cab (Floor、 Armrest、 L.H.)
Cab (Floor、 Work Equipment Control Lever、 R.H.)
Cab (PPC Valve) (3/3)
Cab (Floor、 PPC Valve Mounting for Work Equipment、 R.H.)
Cab (Floor、 Console、 R.H.)
Cab (Floor、 Armrest、 R.H.)
Cab (Air Conditioner Unit) (1/3)
Cab (Air Conditioner Unit) (2/3)
Cab (Air Conditioner Unit) (3/3)
Cab (Floor、 Air Conditioner Mounting and Secondary Engine Stop Switch)
Cab (Floor、 Air Conditioner Piping)
Cab (Floor、 PPC Valve Piping for Travel)
Cab (Floor、 PPC Valve Piping for Work Equipment)
Cab (Floor、 Piping Mounting)
Cab (Floor、 P、 T Block)
Cab (Breaker Piping) (Floor、 P、 T Block)
Cab (Floor、 Seal)
Cab (TY-BOX)
29FIG No.
Floor Mounting
Switch (PC200-11M0, PC210-11M0)
Switch (PC200LC-11M0, PC225LC-11M0, PC235HD-11M0)
GUARDS AND COVERS 护板和盖板 379
Engine Hood
Side Cover L.H. (Door)
Side Cover L.H. (Frame)
Side Cover L.H. (Pre-cleaner)
Side Cover R.H. (Door)
Side Cover R.H. (Cover)
Side Cover R.H. (Frame)
Partition (Air Cleaner Side)
Partition (Engine Side)
Upper Cover
Right Side Case (Case)
Right Side Case (Spare Storage Case)
Handrail
Rearview Mirror L.H
Rearview Mirror R.H
Counterweight (PC200-11M0, PC200LC-11M0)
Counterweight (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Counterweight Mounting (PC200-11M0, PC200LC-11M0)
Counterweight Mounting (PC210-11M0, PC225LC-11M0, PC235HD-11M0)
Under Cover
SWING CIRCLE AND ITS RELATED PARTS 回转支承及其相关部品 406
Swing Circle
Swing Machinery and Motor (Inner Parts、 Swing Motor) (1/3)
Swing Machinery and Motor (Inner Parts、 Swing Motor) (2/3)
Swing Machinery and Motor (Inner Parts、 Swing Motor) (3/3)
Swing Machinery and Motor (Mounting)
Swing Machinery and Motor (Drain Piping)
Swivel Joint (Inner Parts、 Swivel Joint)
Swivel Joint (Connecting Parts)
Swivel Joint (Related Parts)
TRAVEL SYSTEM AND ITS RELATED PARTS 行走系统及其相关部品 416
Travel Piping (PC200-11M0, PC210-11M0)
Travel Piping (PC200LC-11M0, PC225LC-11M0, PC235HD-11M0)
Travel Motor and Final Drive (Travel Motor、 L.H.) (1/2)
Travel Motor and Final Drive (Travel Motor、 L.H.) (2/2)
Travel Motor and Final Drive (Final Drive L.H.)
Travel Motor and Final Drive (Travel Motor、 R.H.) (1/2)
Travel Motor and Final Drive (Travel Motor、 R.H.) (2/2)
30FIG No.
Travel Motor and Final Drive (Final Drive R.H.)
Travel Motor and Final Drive (Cover)
UNDERCARRIAGE 底盘 426
Front Idler and Idler Cushion (Front Idler) (PC200-11M0, PC210-11M0)
Front Idler and Idler Cushion (Idler Cushion) (PC200-11M0, PC210-11M0)
Front Idler and Idler Cushion (Front Idler) (PC200LC-11M0, PC225LC-11M0, PC235HD-11M0)
Front Idler and Idler Cushion (Idler Cushion) (PC200LC-11M0, PC225LC-11M0, PC235HD-11M0)
Track Roller (PC200-11M0, PC210-11M0)
Track Roller (With Long Track Frame) (PC200LC-11M0, PC225LC-11M0)
Track Roller (With HD Track Frame) (PC235HD-11M0)
Carrier Roller
Track Shoe Assembly (Oblong Holed Triple Grouser Shoe、 600mm Width、 Grease Sealed Type、 90 Set) (PC200-11M0, PC210-11M0)
Track Shoe Assembly (Oblong Holed Triple Grouser Shoe、 600mm Width、 Grease Sealed Type、 98 Set) (PC200LC-11M0, PC225LC-11M0)
Track Shoe Assembly (Oblong Holed Triple Grouser Shoe、 600mm Width、 Grease Sealed Type、 94 Set) (PC235HD-11M0)
Track Frame (PC200-11M0, PC210-11M0)
Track Frame (With Long Track Frame) (PC200LC-11M0, PC225LC-11M0)
Track Frame (With HD Track Frame) (PC235HD-11M0)
Track Frame Under Cover (PC200-11M0, PC200LC-11M0, PC210-11M0, PC225LC-11M0)
Track Frame Under Cover (With HD Track Frame) (PC235HD-11M0)
Track Roller Guard (PC200-11M0, PC210-11M0)
Track Roller Guard (With Long Track Frame) (PC200LC-11M0, PC225LC-11M0)
Track Roller Guard (Full Length) (Split Guard) (PC235HD-11M0)
WORK EQUIPMENT 工作装置 446
Boom (5700mm Heavy Duty Type) (Boom and Bushing)
Boom (Top Pin and Bottom Pin)
Boom (Arm Cylinder Piping)
Boom (Bucket Cylinder Piping)
Boom (Lubrication Piping)
Boom (Attachment Plug)
Boom (LED Lamp) (Working Lamp)
Boom (5700mm Heavy Duty Type、 1-Attachment) (Boom and Bushing)
Boom (5700mm Heavy Duty Type、 1-Attachment) (Breaker Piping)
Boom Cylinder (Inner Parts、 Boom Cylinder、 L.H.)
Boom Cylinder (Inner Parts、 Boom Cylinder、 R.H.)
Boom Cylinder (Fitting)
Boom Cylinder Head Pin
Arm Cylinder (Inner Parts、 Arm Cylinder)
Arm (2900mm) (Arm and Pin) (PC200-11M0)
Arm (Inner Parts、 Bucket Cylinder)
Arm (Bucket Link)
Arm (2900mm) (Bucket Cylinder Hose)
31FIG No.
Arm (2900mm、 Heavy Duty Type) (Arm and Pin)
Arm (2900mm、 Heavy Duty Type) (Plug)
Arm (2900mm、 Heavy Duty Type、 1-Attachment) (Arm and Pin)
Arm (2900mm、 Heavy Duty Type、 Breaker Piping) (Additional Piping)
Bucket (0.94m3、 General Duty Type、 1200mm Width、 Horizontal Pin Type)
Bucket (1.05m3、 General Duty Type、 1200mm Width、 Horizontal Pin Type)
Bucket (1.20m3、 Heavy Duty Type、 1085mm Width、 Horizontal Pin Type)
Bucket (1.20m3、 General Duty Type、 1200mm Width、 Horizontal Pin Type)
Bucket (1.30m3、 Heavy Duty Type、 1140mm Width、 Horizontal Pin Type)
Bucket (1.06m3、 Light Duty Type、 1330mm Width、 Horizontal Pin Type)
Bucket (1.20m3、 Light Duty Type、 1330mm Width、 Horizontal Pin Type)
Bucket (1.00m3、 Heavy Duty Type、 1085mm Width、 Horizontal Pin Type)
Bucket (1.30m3、 Light Duty Type、 1330mm Width、 Horizontal Pin Type)
Bucket (1.40m3、 Light Duty Type、 1330mm Width、 Horizontal Pin Type)
MARKS AND PLATES 标记和标牌 484
Marks and Name Plates (PC200-11M0)
Marks and Name Plates (PC200LC-11M0)
Marks and Name Plates (PC210-11M0)
Marks and Name Plates (PC225LC-11M0)
Marks and Name Plates (PC235HD-11M0)
Lubrication Chart
Caution Plates、 Window Lock
Komatsu Logo
Lifting Palte and Regulation Plate
Caution Plates、 Battery
Coolant Decal
Caution Plates、 Blast Site
Seat Belt Wearing Plate
Caution Plates、 Keep Off Working Ranges
ROPS Plate
Plates、 Air Cleaner
Caution Plates、 Accumulator
Caution Plates、 Backward
Caution Plates、 24Volt (With Power Supply、 12volt)
AUXILIARY PARTS AND TOOL 备件和工具 509
Spare Parts
Tool
FIELD REPAIR SERVICE PART
