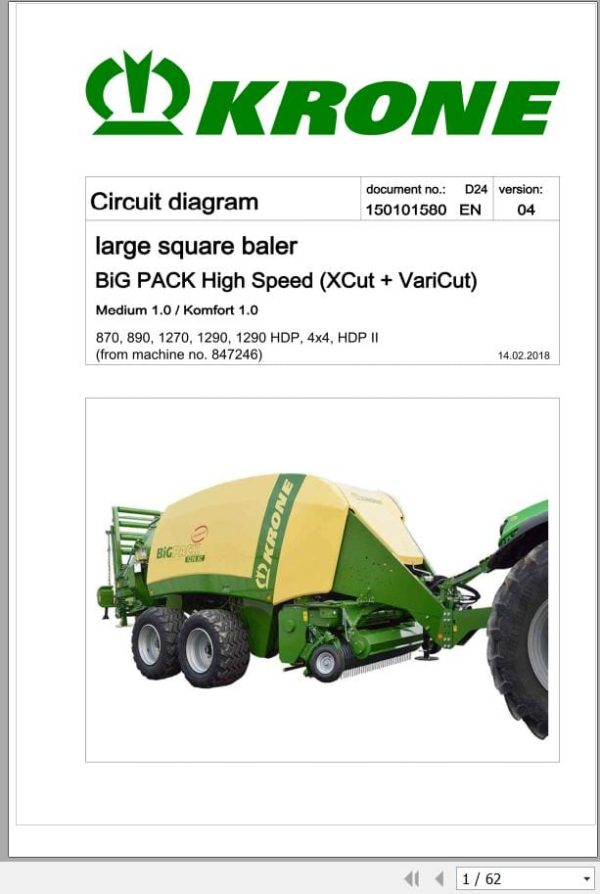

Krone Large Square Baler 870 to 1290 HDP Hydraulic Electric Diagram D24150101580EN-04

Description

Contents:
Large Square Baler
List Of Abbreviations, Colour Identification
Equipment List
Equipment List

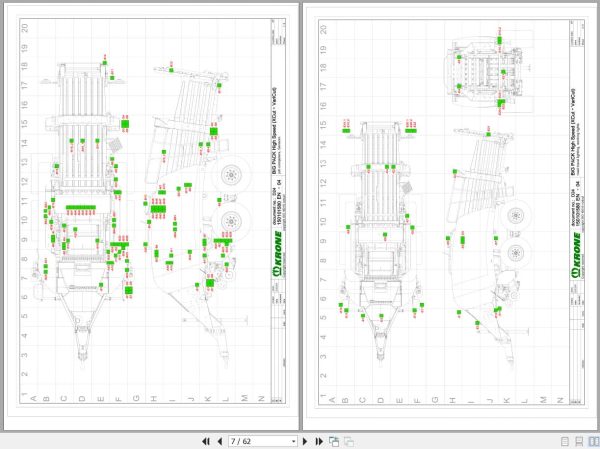

Job Computers, Sensors
Road Travel Lighting, Working Lights
Valves
Rms (Option Moisture Measurement)
Fma2 (Option Bale Scale)
Overview Distributor Central Electric: (Basic Equipment & Full Equipment): Drawbar Plug, Plug X2
Overview Distributor Central Electric: (Only With Full Equipment): Plug X3
Power Supply: Control Terminal, Interface Machine
Can Bus: Can1 – Isobus Extension, Terminating Resistor 1 Can1, Active Terminating Resistor
Power Supply: Ce Switching Voltage
Power Supply: Main Computer
Power Supply: Main Computer (Comfort)
Power Supply: Baling Force Control
Power Supply: Kmb1 (Twine Boxes – Hdp Ii), Moisture Measurement, Bale Scale
Power Supply: Balecollect
Can Bus: Can2 – Fma 1 Baling Force Control, Terminating Resistor 1 Can2
Can Bus: Can3 – Fma 2 Bale Scale, Terminating Resistor 1 Can3, Ecu Twine Boxes, Rms Moisture Measurement, Bale Chute Standard, Without Bale Chute
Kmc: Plug Overview Ks1
Kmc: Plug Overview Ks2
Kmc: Plug Overview Ks3
Kmc: Plug Overview Ks4
Kmc: Sensors: Flywheel Brake, Rotational Speed Packer, Packer Feed Active, Lower Twine Monitoring, Needle Connecting Rod Left, Needle Connecting Rod Right
Kmc: Sensors: Star Wheel
Kmc: Sensors: Rotational Speed Pick-Up, Position Pick-Up
Kmc: Sensors/Actuators: Knotter Central Lubrication Active, Central Lubrication System, Bale Chute, Bale Discharge, Bale Ejector, Rotational Speed Pto Shaft
Kmc: Sensors/Actuators: Pressure Limitation Valve Baling Flaps, Baling Flap Pressure, Knotter Cleaning 1+2, Rotational Speed Feed Rotor
Kmc: Sensors/Actuators: Knotter Triggering, Knotter Motor, Knotter Monitoring
Kmc: Preparation Silage Additives System
Kmc: Maintenance Lighting: Lighting Knotter Table, Lighting Lower Twine, Lighting Twine Box Right, Lighting Twine Box Left
Kmc: Working Lights: Working Light Pick-Up, Working Light Rear Left, Working Light Rear Right
Kmc: Sensors/Actuators (Comfort): Main Valve, Bale Chute, Bale Ejector
Kmc: Sensors/Actuators (Comfort): Release Baling Flaps, Starting Device, Baling Flaps Rapid Traverse
Kmc: Sensors/Actuators (Comfort): Steering Axle, Condition Steering
Kmc: Sensors/Actuators (Comfort): Control Upper Twine 1-6
Kmc: Sensors/Actuators (Comfort): Control Upper Twine 7-8
Kmc: Sensors/Actuators (Comfort): Position Multibale
Kmc: Sensors/Actuators (Comfort): Switches / Momentary Switches Bale Ejector, Bale Chute
Blade Cassette
Kmc: Cutting System (Xcut): Sensors/Actuators (Comfort): Contact Pressure Feed Rotor, Coupling Feed Rotor, Safety Valve Feed Rotor, Close Feed Rotor
Momentary Switch Lower Blade Cassette; Valves Blade Cassette
Kmc: Cutting System (Varicut): Sensors/Actuators (Comfort): Momentary Switch Blade Cassette, Valves Varicut
Fma1 (Baling Force Control): Plug Overview
Fma1 (Baling Force Control): Sensors/Actuators: Measure, Calibrate, Force Sensors; Address Resistor Fma1
Fma2 (Option Bale Scale): Plug Overview
Fma2 (Option Bale Scale): Sensors: Bale On Table, Acceleration Sensor Bale Scale; Address Resistor Fma2
Fma2 (Option Bale Scale): Force Sensor Front Left, Force Sensor Front Right, Force Sensor Rear Left, Force Sensor Rear Right
Kmb1 (Twine Boxes – Hdp Ii): Plug Overview
Kmb1 (Twine Boxes – Hdp Ii): Sensors: Twine Box Transport Position Left, Twine Box Transport Position Right, Twine Box Maintenance Position Left, Twine Box Maintenance Position Right; Status Led, Address Resistor
Kmb1 (Twine Boxes – Hdp Ii): Actuators: Twine Boxes, Horn Twine Boxes
Rms (Option Moisture Measurement): Plug Overview
Rms (Option Moisture Measurement): Sensors: Moisture Measurement Left, Moisture Measurement Right
Road Travel Lighting: Socket Lighting Front, Socket Lighting Rear, Direction Indicator Left, Direction Indicator Right, Tail/Brake Lamp Left, Position Lamp Left, Position Lamp Right
Road Travel Lighting: Licence Plate Lamps, Side Marker Lights, End-Outline Marker Lamps
Road Travel Lighting: Warning Beacons
Distributor Central Electric: Fuses, Relays, Label Overview
