Name: Krupp Crane KMK 3045 Spare Parts List 11.1990 EN DE
SKU: 517302
Availability: InStock

Krupp Crane KMK 3045 Spare Parts List 11.1990 EN DE (1)

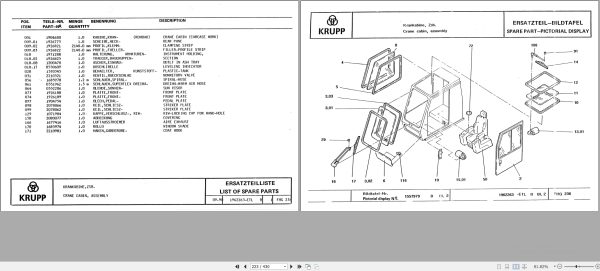

Krupp Crane KMK 3045 Spare Parts List 11.1990 EN DE (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

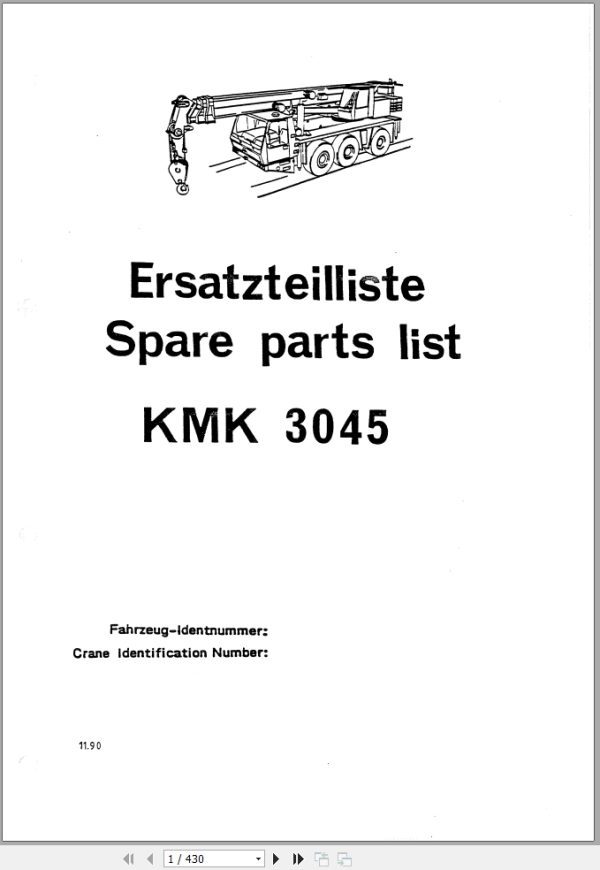

Krupp Crane KMK 3045 Spare Parts List 11.1990 EN DE

Size: 36.61 MB

Format: PDF

Language: German, English

Brand: Krupp

Type of Machine: Crane

Type of Manual: Spare Parts List

Model: Krupp KMK 3045 Crane

Serial Number:

3045049/01 to 3045049/08

3045050/01 to 3045050/08

Publication Date: 11.1990

Number of Pages: 430 Pages

15 USD

Tags: KMK 3045, Krupp Crane PDF, Krupp Parts Manual

Description

Description

Contents:
Chassis
Attaching Parts For Frame
Covering, Assembly ,
Engine Suspension, Assembly
Axle Attachment
Axle Drive
Axle Drive
Wheel Drive Left
Brake
Wheel Drive Right
Wheel Hub Left
Wheel Hub Right
Wheel Cpl. (Selection)
Steering
Hydr. Pipe Diagram, Steering
Assembly .
Gpump, Oil-Tank, Accessories
Hose Assemblies, Steering
Chassis (Pump, Oil Tank)
Pumps And Oil-Tank—Mounting
Ehydraulic Steering, Chassis
Hose Assemblies, Steering
Chassis
Control
Driver’s Cab, Assembly
Door, Left
Door, Right
Windscreen Washer System
Windscreen Wiper
Heating System Chassis
Warm Water Heating Appliance
Warm Water Heating Appliance
Supporting Cpl.
Engine- And Gear Assembly
Engine Assembly, Driving Head
Diesel Engine
Radiator Mounting
Ecear Mounting 6 Wc 200
Gear 6 Wc 200
Accessories Engine
3(Exhaust, Air Filter, Fuel Tank)
Ifuel~Diagram
Transducer Piping Unit (Mounting)
Compressed Air System, Chassis
Compressed Air System, Chassis
(Axle Area)
Hydr. Pipe Diagram, Chassis
Pumps, Slewing Gear And
Accessories
Hose Assemblies, Chassis
(Pumps, Slewing Gear And
Accessories)
Pump Mounting
Hydr. Plant Support
Hose Assemblies, Chassis
(Support)
Hydr.—Pneum. Springing
Shock—Absorbing Strut
Hose Assemblies, Chassis
(Springing)
Fan Drive
Hose Assemblies, Chassis
(Fan Drive)
Hydr. Pipe Diagram, Driver’s
Cab Tipping Device
Electr. Construction, Chassis
Headlight
Control Units For Support
Feeler-Integral Parts For
Support, Left
Driver’s Cab Switching
Electr. Parts, Chassis
Level-Regulation
Feeler-Integral Parts For
Sopport, Right
Electr. Construction Driver’s
Cab
Slide-In Unit 1 A
Slide-In Unit 2.1a
Slide-In Unit 3.4a
Slide-In Unit 6.3a
Slide-In Unit 7.2a
Slide-In Unit 9.4a
Slide-In Unit 10.4a
Electr. Parts Driver’s Cab
Electr. Parts, Car Radio Receiver, Two-Man Cabin
Slide-In Unit, Level Regulation
Slide-In Unit, Separate Steering 3
Slide—In Unit Drive
Accessories Chassis
Hydraulic Steering Turntable
Steering
Attaching Parts For Turntable
Counterweight
Counterweight
Crane Cabin
Sliding Door
Ball Bearing Slewing Gear
Heating System, Crane Cabin
Air Heating Appliance
Main Hoisting Gear
Hoisting Gear
Lslewing Gear
Electr. Construct. Lmb (Turnt.)
Central—Unit
Measured Value Transmitter
Compressed Air System, Turnt.
Hydr, Pipe Diagram, Turntable
Oil Tank Mounting
Hose Assemblies
(Mounting Oil Tank)
Valve Unit
Hose Assemblies
(Valve Unit)
Crane Control
Main Hoisting Gear
Hose Assemblies
(Main Hoisting Gear)
Luffing Gear
Hose Assemblies
(Luffing Gear)
Slewing Gear And Counterweight
Hoisting Gear
Hose Assemblies
(Slewing Gear And Counterweight
Hoisting Gear)
Long-Distance Anticipat. Contr.
Hose Assemblies Turntable
(Slewing Gear)
Electr. Construction, Turntable
Feeler-Integral Counterweight
Electr. Construction, Crane
Cabins
Slide-In Unit 3 A
Slide-In Unit 5.2a
Slide-In Unit 6 A
Slide-In Unit 7.7a
Slide-In Unit 9.5a
Slide-In Unit 10 A
Slide-In Unit 18.3a
Slide-In Unit L9.2a
Slide-In Unit 20.1a
Electr. Parts Crane Cabin
Wire Ropes And Accessories
Accessories Turntable
Jib
Jib Component Parts
Component Parts (Luffing Cyl.)
Electr. Construction Lmb Jib
Jib-Unit
Cable Drum 2
Cable Drum 3
Hydr. Pipe Diagram, Tele
Gear
Electr. Parts Jib
Equipment
Set Of Completion
Tools
Toolbox, Cpl.
Plates And Symbols
Wheel, Cpl. (Selection)
Bottom Hook Block A5 T With
Single Load Hook
Bottom Hook Block 28 T With
Single Load Hook
Bottom Hook Block 12 T With
Single Load Hook
Swivel Hook 5 T
Auxiliary Hoisting Gear
Auxiliary Hoisting Gear Cpl.
Auxiliary Hoisting Gear
Hoisting Gear
Hydr. Pipe Diagram, Auxiliary
Hose Assemblies
(Hydr. Pipe Diagram, Auxiliary)
Rebuilding Set For Auxiliary
Wire And Accessories
Accessories Engine
Fly Jig Folded
Hinged Jib 8—I3m
Hinged Jib, Mounting
Hinged Jib, Mounting Parts
Bearing Block
Electr. Construction, Hinged
Auxiliary Heater Driver’s Cab
Heating
Heating
Oil Cooler
Oil Cooler Mounting
Hydr. Pipe Diagram, Oil Cooling
Electr. Parts For Oil Radiator
Trailer Coupling
Trailer Coupling, Cpl.
Compressed Air System Chassis
Compressed Air System Axle Area
Compressed Air System Trailer
Control
