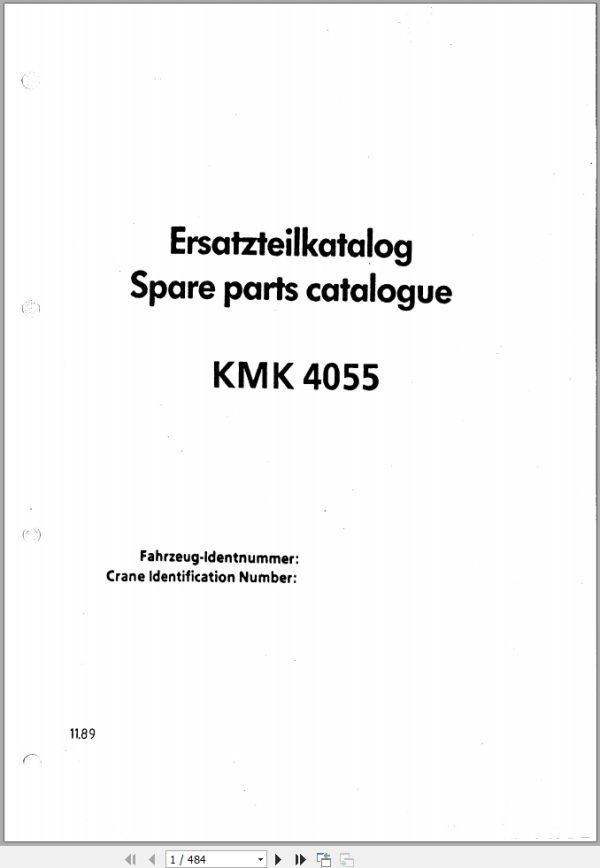

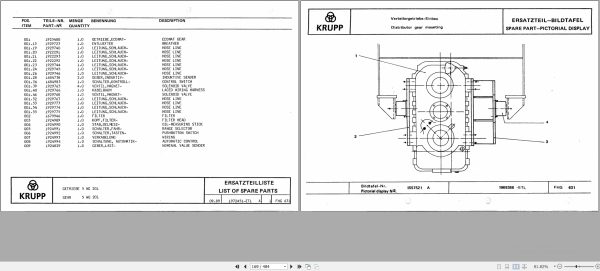

Krupp Crane KMK 4055 Spare Parts List 1989 EN DE

Description

Contents:
Chassis
Attaching Parts For Frame
Covering Assembly
Engine Suspension Assembly
Axle Attachment
Axle Drive
Wheel Drive Left
Brake
Wheel Drive Right
Axle Drive
Wheel Hub Left
Wheel Hub Right
Wheel Cpl. (Selection)
Axle Attachment
Wheel Cpl. (Selection)
Steering
Steering Rod Telescopically
Hydr. Pipe Diagram Steering
Assembly
Pump Oil~Tank Accessories
Pumps And Oil—Tank-Mounting
Hydraulic Steering Chassis Fr.
Hose Assemblies Steering
Chassis (Pump Oil Tank)
Hose Assemblies Steering
Chassis Frame
Hydr. Pipe Diagram For All-
Wheel—Steering
Hose Assemblies All-Wheel—
Steering
Control
Drivers Cab Assembly
Door Left
Door Right
Windscreen Washer System
Windscreen Wiper.
Ball Bearing Slewing Gear
Heating System Chassis Frame
Warm Water Heating Appliance
Supporting Cpl.
Supporting Front
Supporting Behind
Engine- And Gear Assembly
Engine Assembly Driving Head
Diesel Engine
Radiator Mounting
Distributor Gear For Pump
Mounting
Gear Mounting 5 Wg 201
Gear 5 Wg 201
Distributor Gear Mounting
Accessories Engine
(Exhaust Air Filter Fuel Tank)
Fuel-Diagram
Heat Exchanger And Transducer
Piping Unit (Mounting)
Compressed Air System Chassis
(Page 1)
Compressed Air System Chassis
(Axle Area)
Hydr. Pipe Diagram Chassis
Pumps Slewing Gear And
Accessories
Hose Assemblies Chassis
(Pumps Slewing Gear And
Accessories)
Pump Mounting
Hydr. Plant Support
Hose Assemblies Chassis
(Support)
Hydr.-Pneum. Springing
Shock«Absorbing Strut
Hose Assemblies Chassis
(Springing)
Fan Drive
Hose Assemblies Chassis
(Fan Drive)
Hydr. Pipe Diagram Drivers
Cab Tipping Device
Electr. Construction Chassis
Headlight
Control Units For Support
|Feeler—Integral Parts For
Support Left _
Drivers Cab Switching
Electr. Parts Chassis
Level—Regulation
Laced Wiring Harness Terminal
Feeler—Integral Parts For
Support Right
Electr. Construction Drivers
Cab
Slide-In Unit 1 A
Slide—In Unit 2.1a
Slide—In Unit 3.4a
Slide—In Unit 6.3a
Slide—In Unit 7.2a
Slide-In Unit 9 A
Slide—In Unit 10.5a
Electr. Parts Drivers Cab
Electr. Parts Car Radio Receiver Two—Man Cabin
Slide-In Unit Level Regulation
Slide-In Unit Separate Steering 4
Slide—In Unit Drive
Accessories Chassis
Turntable
Hydraulic Steering Turntable
Steering
Attaching Parts For Turntable
Counterweight
Counterweight
Crane Cabin
Sliding Door
Heating System Crane Cabin
Air Heating Appliance
Main Hoisting Gear
Hoisting Gear
Slewing Gear
Electr. Construct. Lmb (Turnt.)
(Page 1)
Central Unit
Measured Value Transmitter
Compressed Air System Turnt.
Hydr. Pipe Diagram Turntable
0il Tank Mounting
Hose Assemblies
(Mounting Oil Tank)
Valve Unit
Hose Assemblies
(Valve Unit)
Crane Control –
Main Hoisting Gear ‘
Hose Assemblies I
(Main Hoisting Gear)
Luffing Gear
Hose Assemblies ‘
(Luffing Gear)
Slewing Gear And Counterweight
Hoisting Gear
Hose Assemblies
(Slewing Gear And Counterweight
Hoisting Gear)
Long—Distance Anticipat. Contr.
Hose Assemblies
(Long-Distance Antici. Contr.)
Hose Assemblies Turntable .
(Slewing Gear)
Electr. Construction Turntable
Feeler—Integral Counterweight
Electr. Construction Crane
Cabine
Slide-In Unit 3 A I
Slide-In Unit 5.2a
Slide—In Unit 6 A
Slide—In Unit 7.8a
Slide—In Unit 9.5a I
Slide-In Unit 10 A
Slide-In Unit 18.3a
Slide-In Unit 19.2a
Slide—In Unit 20.1a .
Electr. Parts Crane Cabin
Wire Ropes And Accessories
Accessories Turntable
Jib
Jib Component Parts
Component Parts (Luffing Cyl.)
Electr. Construction Lmb Jib
(Page 2)
Jib-Unit
Cable Drum
Hydr. Pipe Diagram Telescopic
Gear
Electr. Parts Jib
Equipment
Set Of Completion
Tools
Toolbox Cpl.
Plates And Symbols (Chassis)
Plates And Symbols (Turntable)
Wheel Cpl. (Selection)
Hook Blocks
Bottom Hook Block 55 T With
Double Hook
Bottom Hook Block 45 T With
Bottom Hook Block 45 T
Bottom Hook Block 18 T
Swivel Hook 8 T .
Auxiliary Hoisting Gear
Auxiliary Hoisting Gear Cpl. _
Auxiliary Hoisting Gear
Hoisting Gear ‘
Hydr. Pipe Diagram Auxiliary
Rebuilding Set For Auxiliary
Wire Ropes And Accessories
Fly Jib Folded
Hinged Jib 10-16m
Hinged Jib Mounting Parts
Bearing Block
.Electr. Construction Hinged
Hinged Jib 30° Mounting
Auxiliary Heater Drivers Cab
Heating _
Heating
Oil Cooler
Oil Cooler Mounting
Hydr. Pipe Diagram Oil Cooling
Electr. Parts For Oil Radiator
Marking
Plates (Chassis)
Plates (Turntable).
Trailer Coupling
Trailer Coupling Cpl.
Compressed Air System Chassis
Compressed Air System Axle Area
Compressed Air System Trailer
Control
Reserve Wheel Holder
