Name: Kubota Engine 03-CR-E4 03-CR-TE4 03-CR-TE4BG 03-CR-TIE4 Diagnosis Manual 9Y110-02091 2015
SKU: 628607
Availability: InStock

Kubota Engine 03 CR E4 03 CR TE4 03 CR TE4BG 03 CR TIE4 Diagnosis Manual 9Y110 02091 2015 1c05468ccdc8536fd

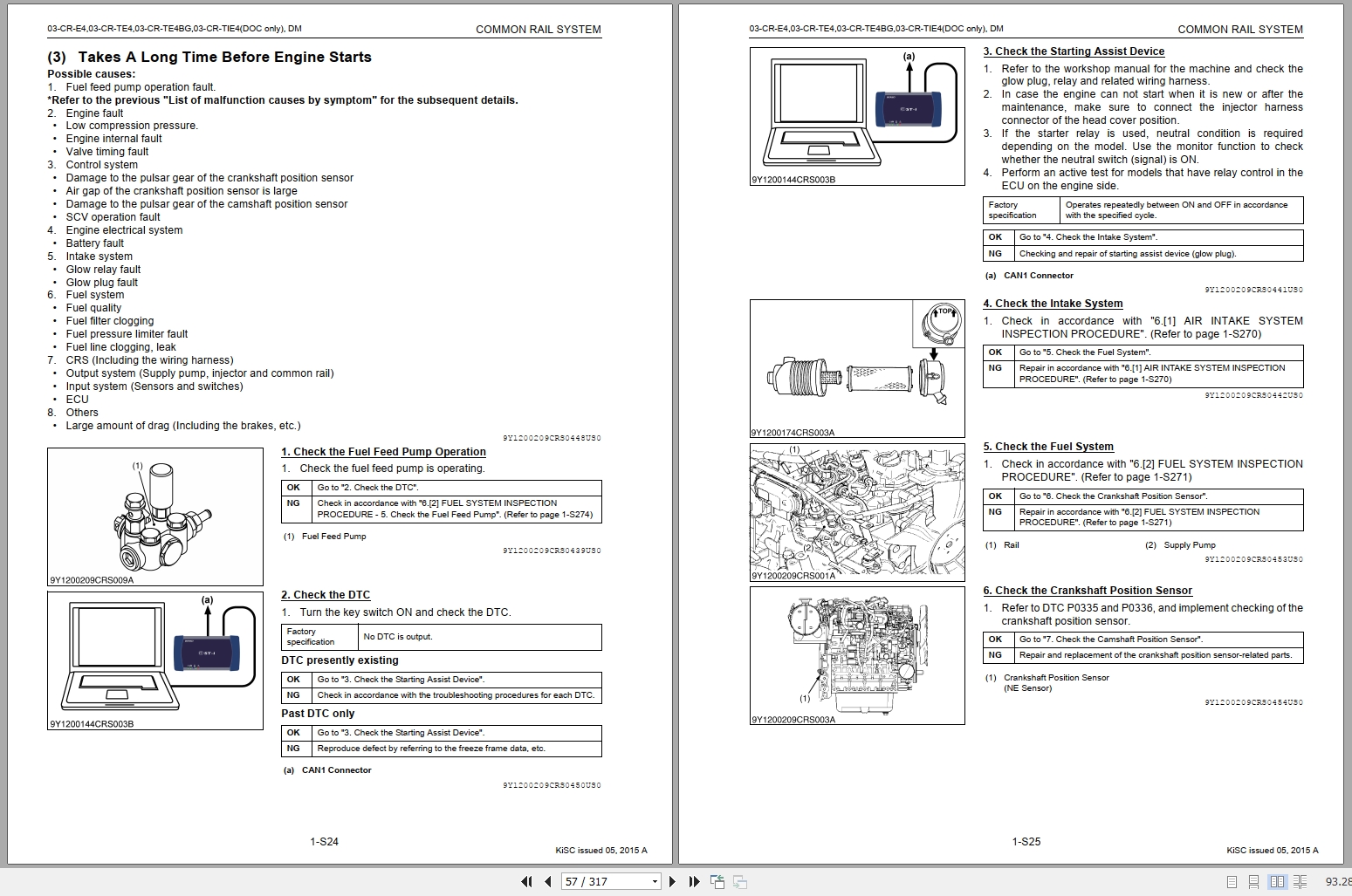

Kubota Engine 03 CR E4 03 CR TE4 03 CR TE4BG 03 CR TIE4 Diagnosis Manual 9Y110 02091 2015 2ff38318c401a33dd

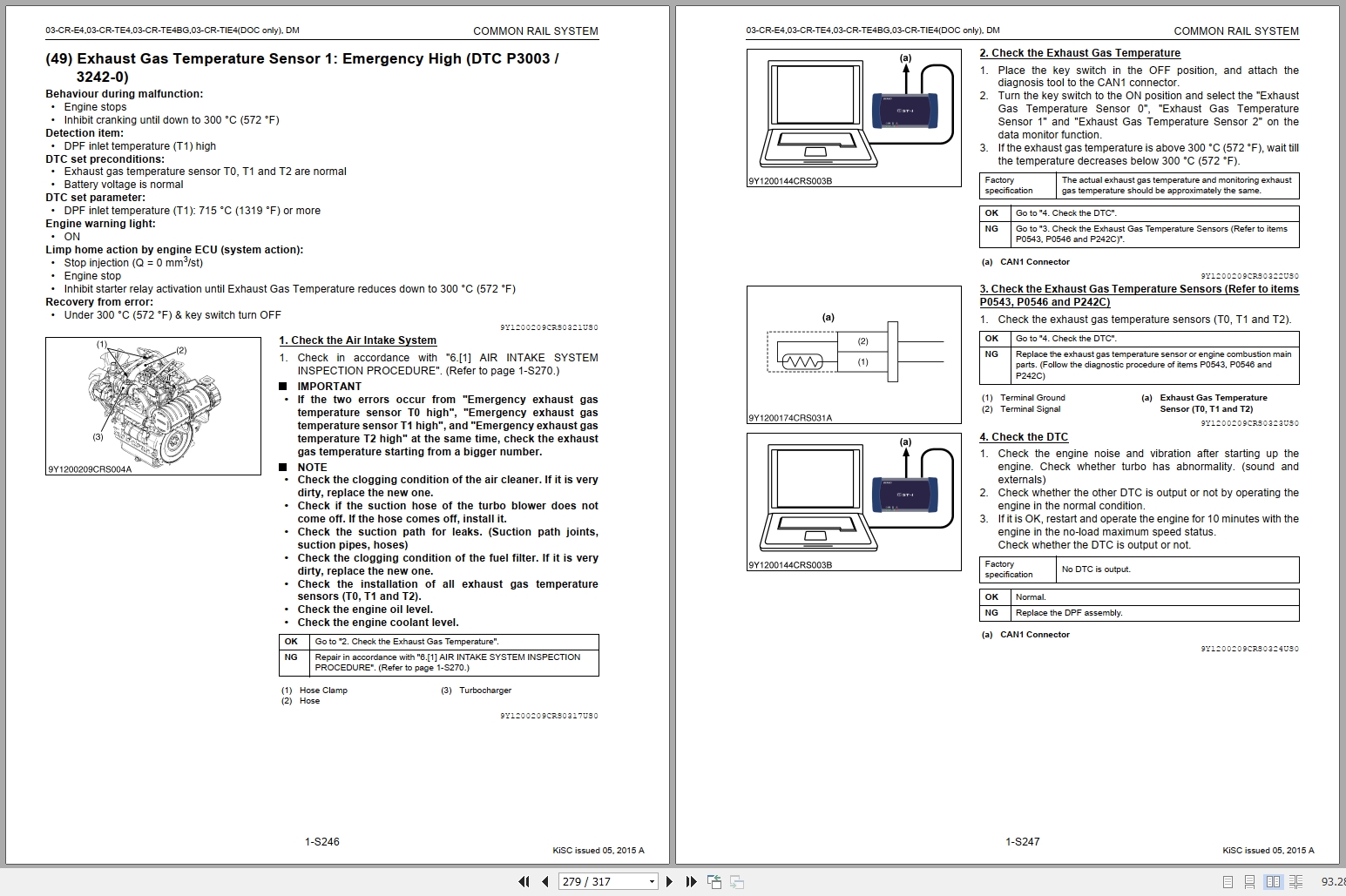

Kubota Engine 03 CR E4 03 CR TE4 03 CR TE4BG 03 CR TIE4 Diagnosis Manual 9Y110 02091 2015 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Kubota Engine 03-CR-E4 03-CR-TE4 03-CR-TE4BG 03-CR-TIE4 Diagnosis Manual 9Y110-02091 2015

Size: 8.20 MB

Format: PDF

Language: English

Brand: Kubota

Type of Machine: Engine

Type of Manual: Diagnosis Manual – Common Rail System

Model: Kubota 03-CR-E4 ; 03-CR-TE4 ; 03-CR-TE4BG ; 03-CR-TIE4 (DOC only) Engine

Part Number: 9Y110-02091

Publication Date: 2015

Number of Pages: 317 Pages

20 USD

Tags: 03-CR-E4, 03-CR-TE4, 03-CR-TE4BG, 03-CR-TIE4, Kubota Diagnosis Manual, tie

Description

Description

Contents:
I Information
Information
1. Safety First
1 Common Rail System
Mechanism
1. Basic System Information
[1] System Configuration
[2] Fuel System
[3] Intake And Exhaust System
[4] Available Data Monitor Signals (Level 1)
[5] System Wiring Diagram
Servicing
1. General
[1] Overall Diagnostic Procedure
[2] Questioning
[3] List Of Malfunction Symptom
[4] Actions For Non-Reoccurring Malfunctions
2. Diagnostic Tool Connection Procedure
[1] Diagnostic Connector Positions
[2] Diagnostic Tool Connection Procedure
[3] Checking The Communication Operation Of The Interface (Dst-I)
[4] Checking The Operation Of The Ecu
3. Active Test
4. Diagnosis By Malfunction Symptom
[1] List Of Malfunction Causes By Symptom
[2] Diagnosis By Malfunction Symptom
5. Diagnostic Procedure By Dtc
[1] Dtc List
[2] Diagnostic Procedure By Dtc
6. Inspection Procedure For Each System
[1] Air Intake System Inspection Procedure
[2] Fuel System Inspection Procedure
[3] Electric System Inspection Procedure
