Name: Kubota Engine V3800-CR-TE4B V3800-CR-TTE4B Diagnosis Manual 9Y110-02070 2013
SKU: 628603
Availability: InStock

Kubota Engine V3800 CR TE4B V3800 CR TTE4B Diagnosis Manual 9Y110 02070 2013 1

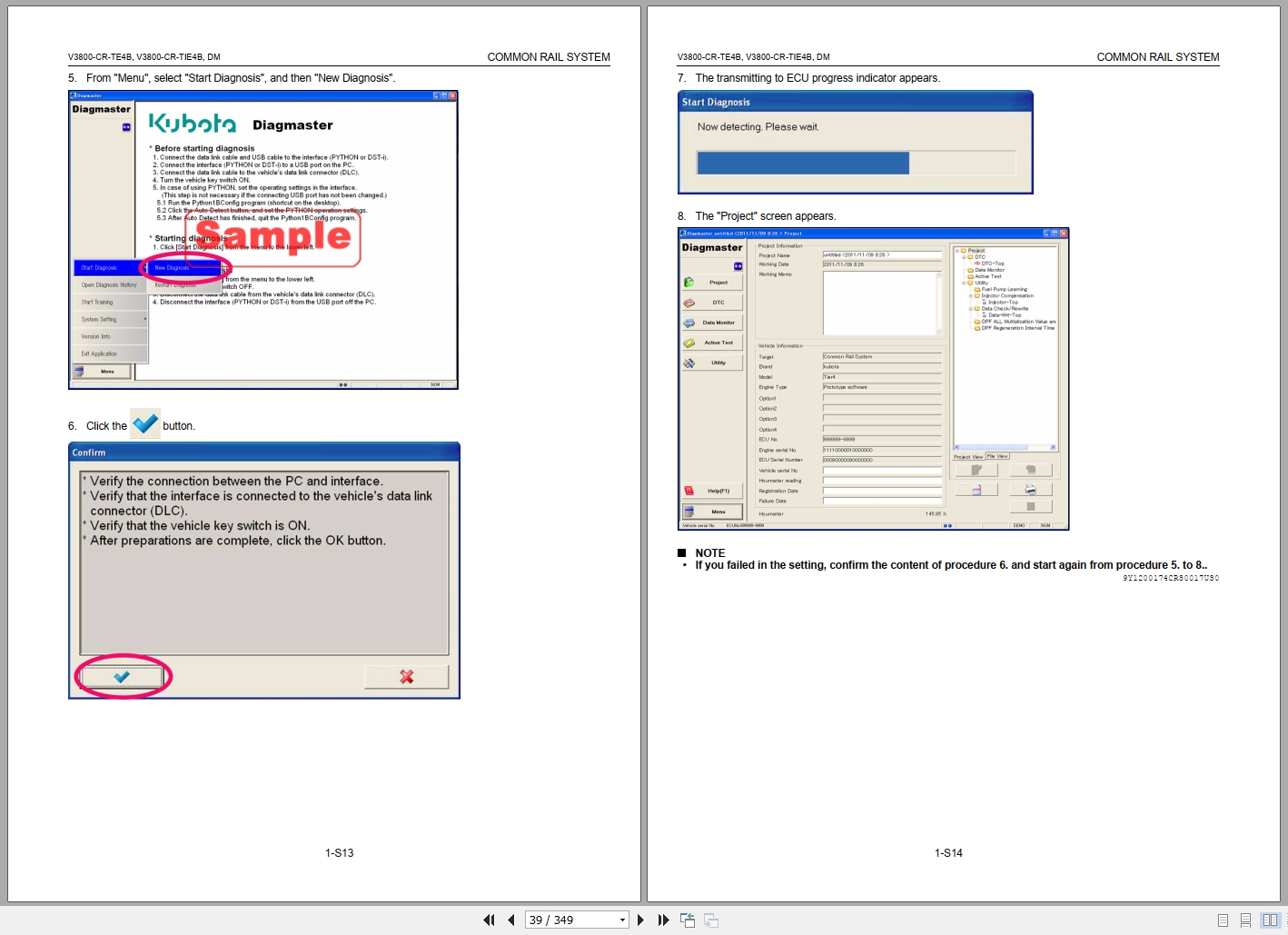

Kubota Engine V3800 CR TE4B V3800 CR TTE4B Diagnosis Manual 9Y110 02070 2013 2

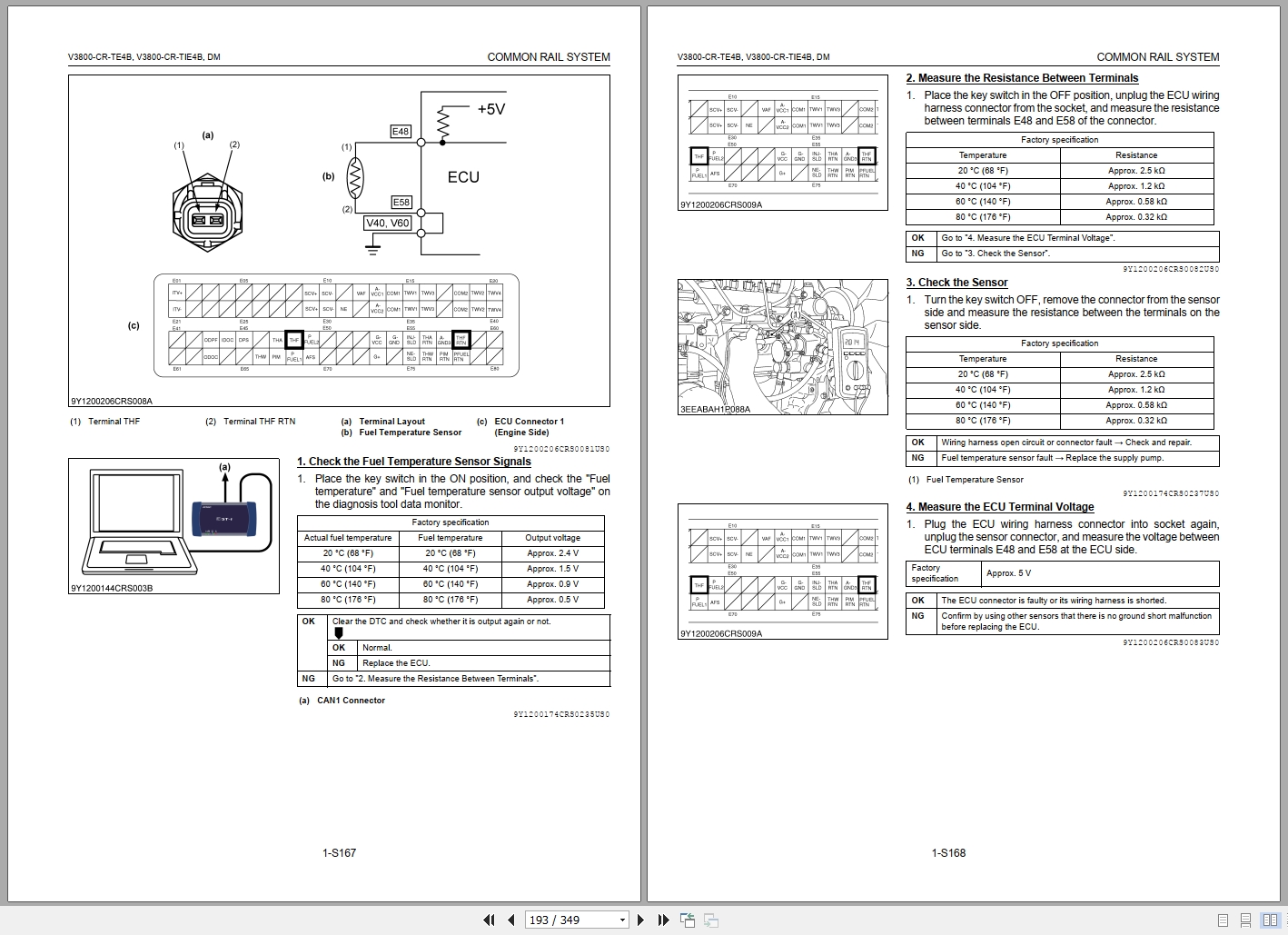

Kubota Engine V3800 CR TE4B V3800 CR TTE4B Diagnosis Manual 9Y110 02070 2013 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Kubota Engine V3800-CR-TE4B V3800-CR-TTE4B Diagnosis Manual 9Y110-02070 2013

Size: 17.18 MB

Format: PDF

Language: English

Brand: Kubota

Type of Machine: Engine

Type of Manual: Diagnosis Manual – Common Rail System

Model: Kubota V3800-CR-TE4B ; V3800-CR-TTE4B (Hyundai) Engine

Part Number: 9Y110-02070

Publication Date: 2013

Number of Pages: 349 Pages

20 USD

Tags: Kubota Diagnosis Manual, V3800-CR-TE4B, V3800-CR-TTE4B

Description

Description

Contents:
I Information
Information
1. Safety First
1 Common Rail System
Mechanism
1. Basic System Information
[1] System Configuration
[2] Fuel System
[3] Intake And Exhaust System
[4] Available Data Monitor Signals (Level 1)
[5] Ecu Terminal Layout
Servicing
1. General
[1] Overall Diagnostic Procedure
[2] Questioning
[3] List Of Malfunction Symptom
[4] Actions For Non-Reoccurring Malfunctions
2. Diagnostic Tool Connection Procedure
[1] Diagnostic Connector Positions
[2] Diagnostic Tool Connection Procedure
[3] Checking The Communication Operation Of The Interface (Dst-I)
[4] Checking The Operation Of The Ecu
3. Active Test And Supply Pump Difference Learning
4. Diagnosis By Malfunction Symptom
[1] List Of Malfunction Causes By Symptom
[2] Diagnosis By Malfunction Symptom
5. Diagnostic Procedure By Dtc
[1] Dtc List
[2] Diagnostic Procedure By Dtc
6. Inspection Procedure For Each System
[1] Air Intake System Inspection Procedure
[2] Fuel System Inspection Procedure
[3] Electric System Inspection Procedure
