Name: Kubota Rotary Broom V5266-66 Owners Manual 77700-07666
SKU: 484118
Availability: InStock

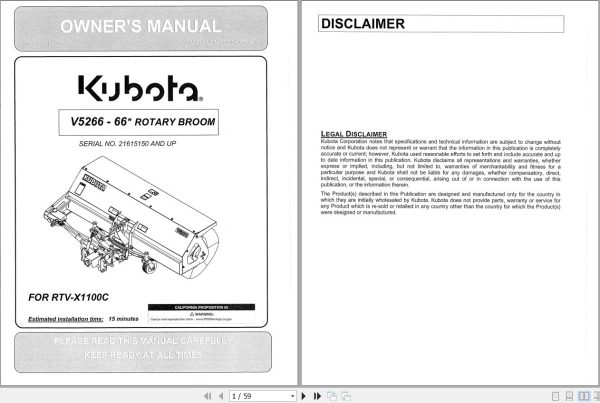

Kubota Rotary Broom V5266 66 Owners Manual 77700 07666 1

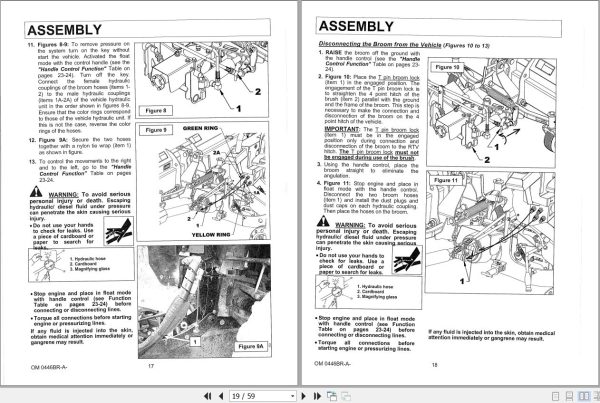

Kubota Rotary Broom V5266 66 Owners Manual 77700 07666 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Kubota Rotary Broom V5266-66 Owners Manual 77700-07666

Size: 4.78 MB

Format: PDF

Language: English

Brand: Kubota

Type of Machine: Rotary Broom

Type of Manual: Owners Manual

Model: Kubota V5266 – 66 Rotary Broom

Series Number: 21615150 And Up

Part Number: 77700-07666

Number of Pages: 59 Pages

10 USD

Tag: Kubota Agricultural & Tractor Manual

Description

Description

Contents:
Specifications
Introduction – To The Purchaser
Safety Precautions
Before Operation
Notice
Subframe & Rotary Broom
Before Operation
Rotary Broom & Subframe Operation
Maintenance
Decals
Assembly
Rotary Broom Preparation
Rotary Broom Installation
Connection Of The Broom To The Vehicle Subframe
Disconnecting The Broom From The Vehicle
Operation
General Preparation
Operating
Engine Speed
Increasing Traction And Stability
Engaging The Drive Mechanism
Ground Clearance Of The Vehicle
Broom Controls And Handle Control Functions
Brush-To-Ground Contact Adjustment
Adjustment Of The Tension Spring And The Broom Friction Plates
Lawn Dethatching & Leaf Raking
Snow Removal
Sweeping Small Gravel, Dust And Regular Debris
Maintenance
Maintenance
Storage
Troubleshooting
Drive Chain Adjustment
Brush Replacement
Gearbox Oil Level And Oil
Lubrication
Parts
Introduction
Brush And Rotary Broom Assembly
Hitch And Rotary Broom Assembly
Hitch And Pivot
Brush Assembly
Swivel Wheel Assembly E
Driveline Female
Driveline
Gearbox Identified
Gearbox Identified “4500022s”
Available Option
Torque Specification Table
Adapter Installation Process
