Name: Kubota Tractor L2250 L2550(GST) L2850(GST) L3250 Workshop Manual
SKU: 484294
Availability: InStock

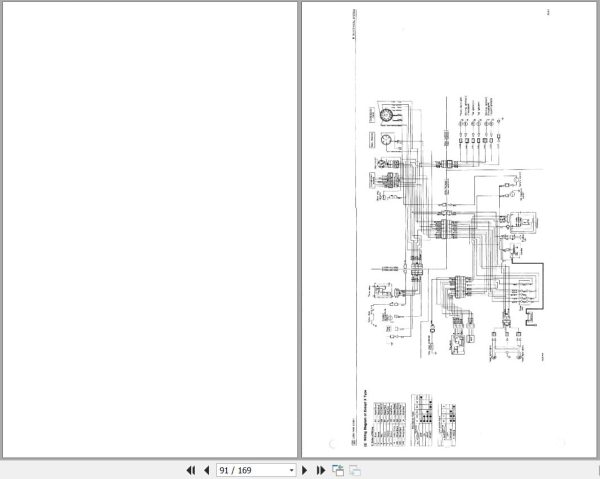

Kubota Tractor L2250 L2550GST L2850GST L3250 Workshop Manual 1

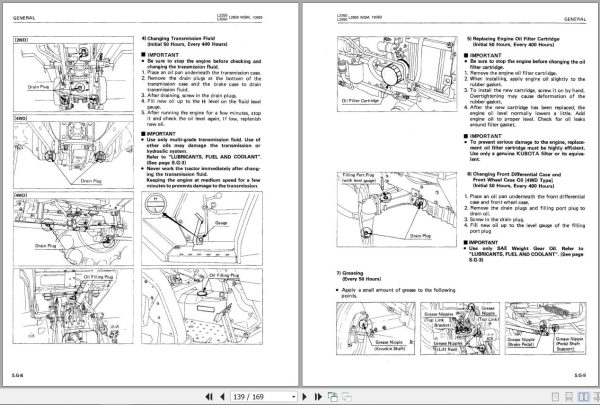

Kubota Tractor L2250 L2550GST L2850GST L3250 Workshop Manual 2

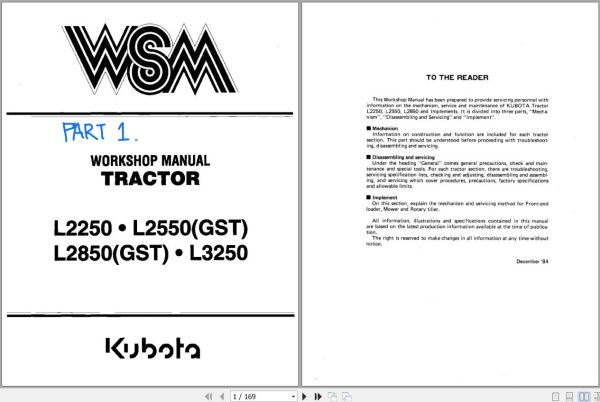

Kubota Tractor L2250 L2550GST L2850GST L3250 Workshop Manual 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Kubota Tractor L2250 L2550(GST) L2850(GST) L3250 Workshop Manual

Size: 80.9 MB

Format: PDF

Language: English

Brand: Kubota

Type of Machine: Tractor

Type of Manual: Workshop Manual, Electrical and Hydraulic Diagrams

Model: Kubota L2250 L2550(GST) L2850(GST) L3250 Tractor

Number of Pages: 642 Pages

30 USD

Tag: Kubota Agricultural & Tractor Manual

Description

Description

Contents:
L2250 L2550(GST) L2850(GST) L3250 Workshop Manual Part 1
Features
Engine
[1] General
(1) Sectional View
(2) Features
[2] Engine Body
(1) Cylinder Head
(2) Cylinder Block
(3) Crankshaft And Bearings
(4) Piston
(5) Piston Rings
(6) Connecting Rod
(7) Camshaft
(8) Fuel Camshaft
(9) Rocker Arm Assembly
(10) Inlet And Exhaust Valves
(11) Timing Gears
(12) Valve And Injection Timing
(13) Flywheel
[3] Lubricating System
(1) Flow Of Lubricating Oil
(2) Oil Pump
(3) Oil Filter And Relief Valve
(4) Oil Pressure Switch
[4] Cooling System
(1) Flow Of Cooling Water
(2) Water Pump
(3) Thermostat
(4) Radiator
(5) Radiator Cap
[5] Fuel System
(1) Flow Of Fuel
(2) Fuel Filter
(3) Fuel Transfer Pump
(4) Fuel Injection Pump
(5) Fuel Injection Nozzle
(6) Governor And Idle Compensating
[6] Inlet And Exhaust System
(1) Flow Of Inlet Air And
Exhaust Gas
(2) Air Cleaner
(3) Muffler
Clutch
[1] Dry Type, Single Stage
Clutch
[1]-1 Dry Type, Single Plate
Clutch
[1]-2 Dry Type, Twin Plates
Clutch
[2] Dry Type, Dual Stage
Clutch
Transmission
[1] Power Train
[1]-1 Main Gear Shift Section
[1]-2 Shuttle Shift Section
[1]-3 Hi-Lo Range Shift
Section
[1]-4 Pto Gear Shift Section
(1) Rear Pto
(2) Mid Pto
[1]-5 Front Wheel Drive Section
[4wd Type]
[2] Speed Change Linkage
Mechanism
(1) Main Gearshift Lever
(2) Shuttle Shift Lever
(3) Restrictive Mechanism
Rear Axle
[1] Differential Gear
Brakes
Front Axle
[1] Structure
[2] Front Wheel Alignment
Steering
[1] Steering Linkage
[2] Manual Steering
[3] Power Steering
L2250 L2550(GST) L2850(GST) L3250 Workshop Manual Part 2
Trouble-Shooting
Servicing Specifications
[1] Engine Body
[2] Lubricating System
[3] Cooling System
[4] Fule System
Tightening Torques
Checking, Disassembling And Servicing .
[1] External Components
Checking And Adjusting
Disassembling And Assembling
[2] Engine Body
Checking And Adjusting
Disassembling And Assembling
(1) Cylinder Head And Valves
(2) Timing Gears And Camshafts
(3) Connecting Rod And Piston
(4) Crankshaft
Servicing
(1) Cylinder Head And Valves
(2) Timing Gears And Camshafts
(3) Connecting Rod And Piston
(4) Crankshaft
(5) Cylinder Liner
[3] Lubricating System
Checking
Servicing
[4] Cooling System
Checking And Adjusting
Disassembling And Assembling
Servicing
[5] Fuel System
Checking And Adjusting
(1) Injection Pump
(2) Injection Nozzle
L2250 L2550(GST) L2850(GST) L3250 Workshop Manual Part 3
Trouble-Shooting
Servicing Specifications
Tightening Torques
Disassembling And Servicing
[1] Differential Gear
[L2250]
Disassembling And Assembling
Servicing
[L2550??L2850]
Disassembling And Assembling
Servicing
[2] Rear Axle
Disassembling And Assembling
