Name: Land Pride Drag Scrapers BB4596 BB4510 BB4512 Parts Manual 306-096P
SKU: 565001
Availability: InStock

Land Pride Drag Scrapers BB4596 BB4510 BB4512 Parts Manual 306 096P (1)

Land Pride Drag Scrapers BB4596 BB4510 BB4512 Parts Manual 306 096P (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Land Pride Drag Scrapers BB4596 BB4510 BB4512 Parts Manual 306-096P

Size: 4.51 MB

Format: PDF

Language: English

Brand: Land Pride

Type of Machine: Drag Scrapers

Type of Manual: Parts Manual

Model: Land Pride BB4596 BB4510 BB4512 Drag Scrapers

Part Number: 306-096P

Publication Date: 2022

Number of Pages: 60 Pages

10 USD

Tags: BB4510, BB4512, BB4596, Land Pride Drag Scrapers Manual, Land Pride Parts Manual

Description

Description

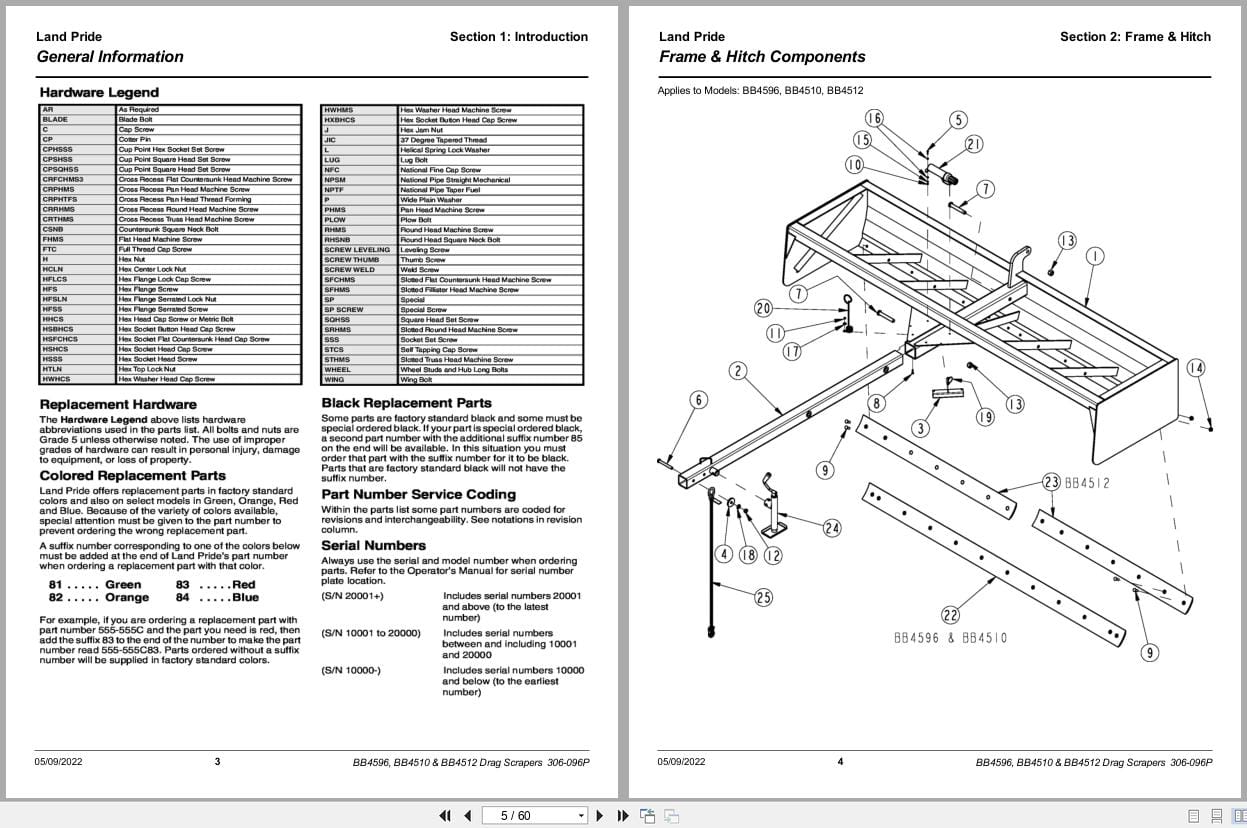

Contents:
Section 1: Introduction
Using This Manual
Manual Replacement Information
Manual Revisions
Touch-up Paint
Hardware Legend
Replacement Hardware
Serial Numbers
Part Number Service Coding
Section 2: Frame & Hitch
Frame & Hitch Components
Hitch Clevis
Hitch Swivel Ball
Hitch Swivel Clevis
Lights
Weight Box
Section 3: Axles BB4510 & BB4512
Axle Enhancement Field Kit W/ Center Pivot
S/N 712500-
Axle Standard (Non-Tilt) S/N 712500-
Axle Standard (Non-Tilt) S/N 712501 to
743852
Axle Standard (Non-Tilt) S/N 743853+
Axle Tilt S/N 712500-
Axle Tilt S/N 712501 to 743852
Axle Tilt S/N 743853 to 766591
Axle Tilt S/N 766592+
Hub Assembly 5-Bolt (322-288K)
Hub Assembly 5-Bolt (815-052C)
Hydraulic Cylinder (810-624C) Midway
Hydraulic Cylinder (810-624C) Red Lion
Section 3: Axles BB4596
Axle Standard (Non-Tilt)
Axle Tilt
Hub Assembly 5-Bolt (322-288K)
Hydraulic Cylinder (810-624C) Midway
Hydraulic Cylinder (810-624C) Red Lion
Section 4: Decals
Decal Placement
Touch-up Paints – LP
Section 5: Options
Lights
