Name: Land Pride Landscape Pull Type Rakes LRP05 LRP15 Series Operator Manual 302-223M
SKU: 565075
Availability: InStock

Land Pride Landscape Pull Type Rakes LRP05 LRP15 Series Operator Manual 302 223M (1)

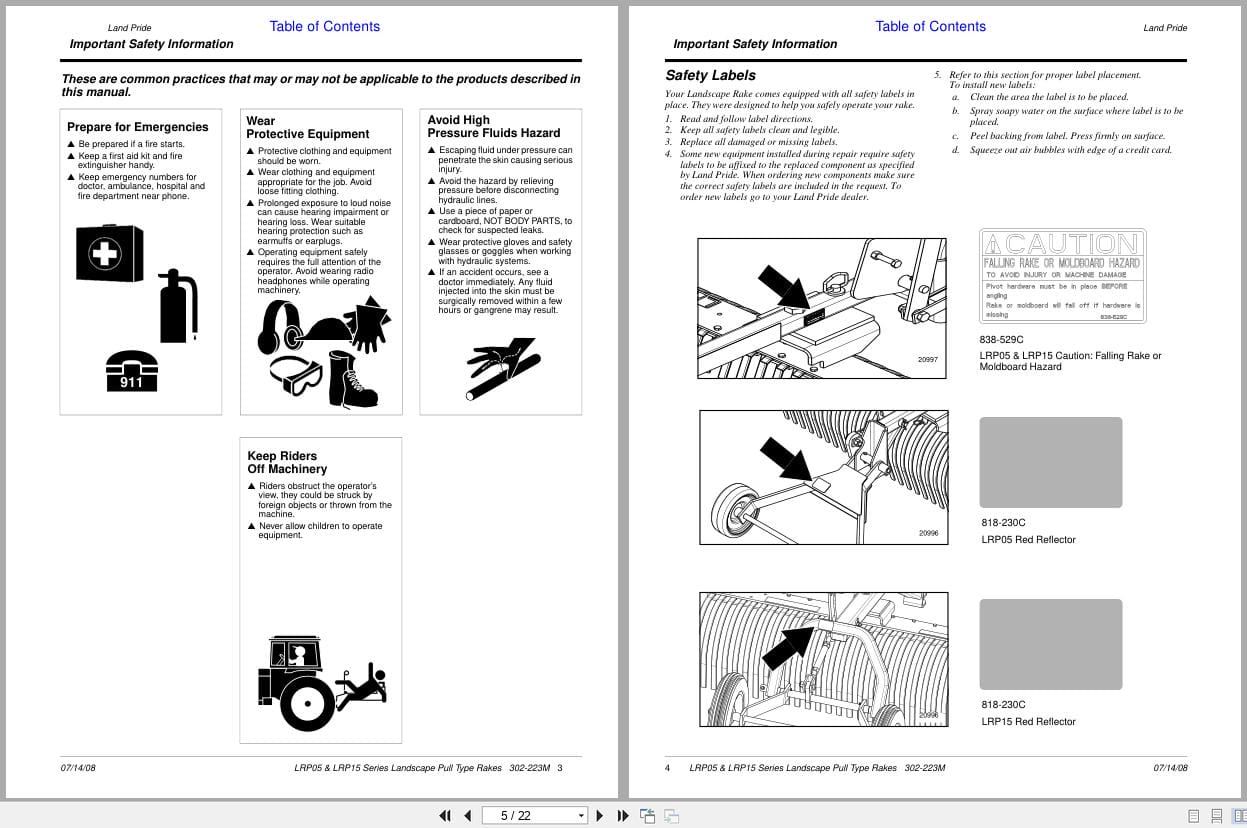

Land Pride Landscape Pull Type Rakes LRP05 LRP15 Series Operator Manual 302 223M (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Land Pride Landscape Pull Type Rakes LRP05 LRP15 Series Operator Manual 302-223M

Size: 1.73 MB

Format: PDF

Language: English

Brand: Land Pride

Type of Machine: Landscape Rakes

Type of Manual: Operator Manual

Model: Land Pride LRP05 Series, LRP15 Series Landscape Pull Type Rakes

Applicable Models: LRP0548, LRP0560, LRP0572, LRP1560, LRP1572

Part Number: 302-223M

Publication Date: 2008

Number of Pages: 22 Pages

10 USD

Tags: Land Pride Landscape Rakes Manual, Land Pride Operator Manual, LRP05 Series, LRP15 Series

Description

Description

Contents:
Important Safety Information
Safety at All Times
Look For The Safety Alert Symbol
Safety Labels
Introduction
Application
Using This Manual
Owner Assistance
Section 1: Assembly and Set-up
Series LRP05 Landscape Rakes
Series LRP15 Landscape Rakes
Section 2: Operating Instructions
Operating Instructions
Section 3: Adjustments
LRP05 & LRP15 Rake Angle
LRP05 & LRP15 Lever Height Control
LRP15 Turnbuckle Height Control
LRP05 Flip Down Grader Blade (Optional)
LRP15 Flip Down Grader Blade (Optional)
Section 4: Maintenance and Lubrication
Maintenance
Lubrication
Section 5: Options
LRP05 & LRP15 Flip Down Grader Blade
Section 6: Specifications & Capacities
Section 7: Features and Benefits
Section 8: Appendix
Torque Values Chart
Notes
Warranty
