Name: Land Pride No-Till Seeder NTS2507 NTS2509 NTS2511 Operator Manual 313-629M-FRC FR
SKU: 565111
Price: 10.00 USD
Availability: InStock

Land Pride No Till Seeder NTS2507 NTS2509 NTS2511 Operator Manual 313 629M FRC FR (1)

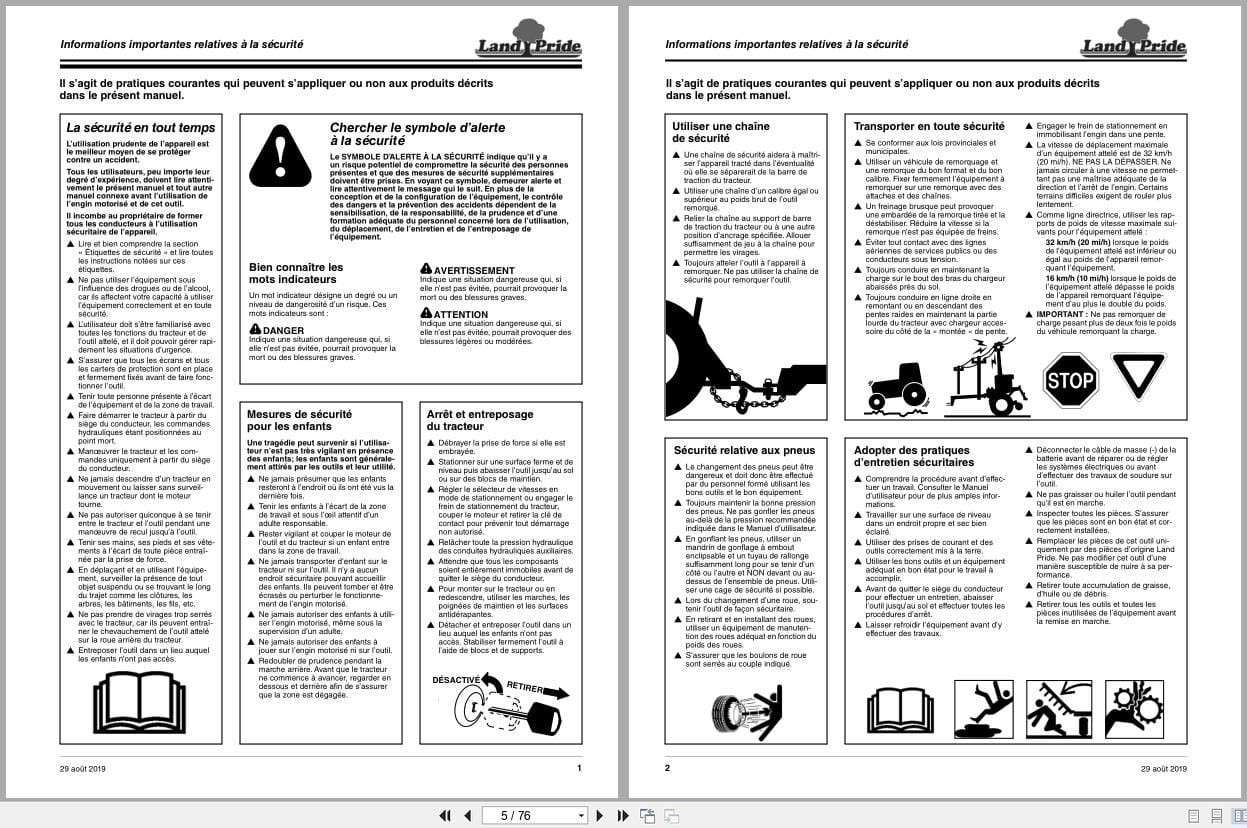

Land Pride No Till Seeder NTS2507 NTS2509 NTS2511 Operator Manual 313 629M FRC FR (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Land Pride No-Till Seeder NTS2507 NTS2509 NTS2511 Operator Manual 313-629M-FRC FR

Size: 16.84 MB

Format: PDF

Language: French

Brand: Land Pride

Type of Machine: No-Till Seeder

Type of Manual: Operator Manual

Model: Land Pride NTS2507, NTS2509, NTS2511 No-Till Seeder

Serial Number: 1304387+

Part Number: 313-629M-FRC

Publication Date: 2019

Number of Pages: 76 Pages

10 USD

Tags: Land Pride No Till Seeder Manual, Land Pride Operator Manual, NTS2507, NTS2509, NTS2511

Description

Description

Contents:
Section 1: Assembly and Setup
Tractor Requirements
Quick Hitch Compatibility.
Torque Requirements
Dealer Preparations.
Sling Mount
Flexible Duct Hose
Zero Setting for Small Seeds
Tow Hitch Option
Acreage Meter Option
Hydraulic Plumbing for Tow Option
Hydraulic System Bleeding
Section 2: Operating Instructions
Operation Checklist
Tractor Shutdown Procedure
Three-Point Seeder Hitch
LED Light Check
Tractor Clearance Check
Uncoupling the three-point seed drill.
Hitching the towed seed drill.
Storing the parking stand
on the seed drill frame.
Uncoupling the towed seed drill.
Installing the transport locks and spacers.
Moving with the seeder attached.
Adjusting the seeder level
using the three-point hitch.
Adjusting the seeder level
using the towed hitch.
Filling the small seeds hopper.
Filling the grass hopper.
Filling the Native Seed Hopper
Operating the Seeder
Lock-Up Clutch
Engaging the Drive Gear
Operating the Seeder
General Operating Instructions
Section 3: Roller Adjustments
Front Spiked Roller Orientation
Mud Scrapers
Section 4: Grass Seed Rate Adjustment.
High/Low Range Setting
for Grass Seed.
Low Range Setting to Reduce.
Return to Standard High/Low Range.
Grass Seed Cup Door Adjustment.
Grass Seed Rate Adjustment
Grass Seed Rate Chart
(Metric Units)
Grass Seed Rate Chart
(Imperial Units)
Section 5: Rate Adjustment
for Small Seeds.
High/Low Range Setting for Small Seeds
Small Seed Rate Setting
Small Seed Rate Chart
(Metric Units)
Small Seed Rate Chart
(Imperial Units)
Section 6: Native Seed Rate Setting
High/Low Range Setting
for Native Seeds.
Native Seed Rate Setting
Native Seed Rate Chart
Section 7: Options and Accessories
Agitator Extension Kit (Accessory)
Electronic Area Meter (Optional)
Slow Moving Vehicle Sign (Accessory)
Section 8: Maintenance and Lubrication
Maintenance
Roller Chains and Sprockets
General Chain and Sprocket Maintenance
Drive Chains for All Seeds
(Nos. 3, 6, and 9).
Standard Chains for Grass Seeds
(No. 12).
Small Seed Drive Chain
(No. 15).
Native Seed Hopper
Main Drive Chain for Native Grass Seed (No. 1)
Transmission Drive Chain for Native Grass Seed (No. 5)
Native Grass Seed Cup Drive Chain (No. 10)
Native Grass Seed Agitator Drive Chain (No. 14)
Standard Drive Chain for Grass Seed
Reduction Drive Chain for Grass Seed
Roller Chain Part Numbers.
Small Seed Roller Chains and Standard Grass Seed Roller Chains.
Front Spiked Rollers.
Rear Roller
Long-Term Storage
Ordering Spare Parts
Lubrication Points
Front Roller Bearings
Left end bearing of the rear roller.
Right end bearing of the rear roller.
Rear roller center bearings.
Small seed drive sprocket bearing.
Native seed drive sprocket bearings.
Seed cup drive shafts.
All seed drive sprocket.
Roller chains
Seed Cup Sprockets and Nylon Washers
Transmission Box for Native Seed
Box
Axle Bearing
Section 9: Specifications and Capacities
Section 10: Features and Benefits
Section 11: Troubleshooting
Section 12: Tire Torque and Inflation
Section 13: Warranty
