Name: Land Pride Rotary Cutters RC5715 RCM5715 Operator Manual 331-431M-FRC FR
SKU: 565320
Availability: InStock

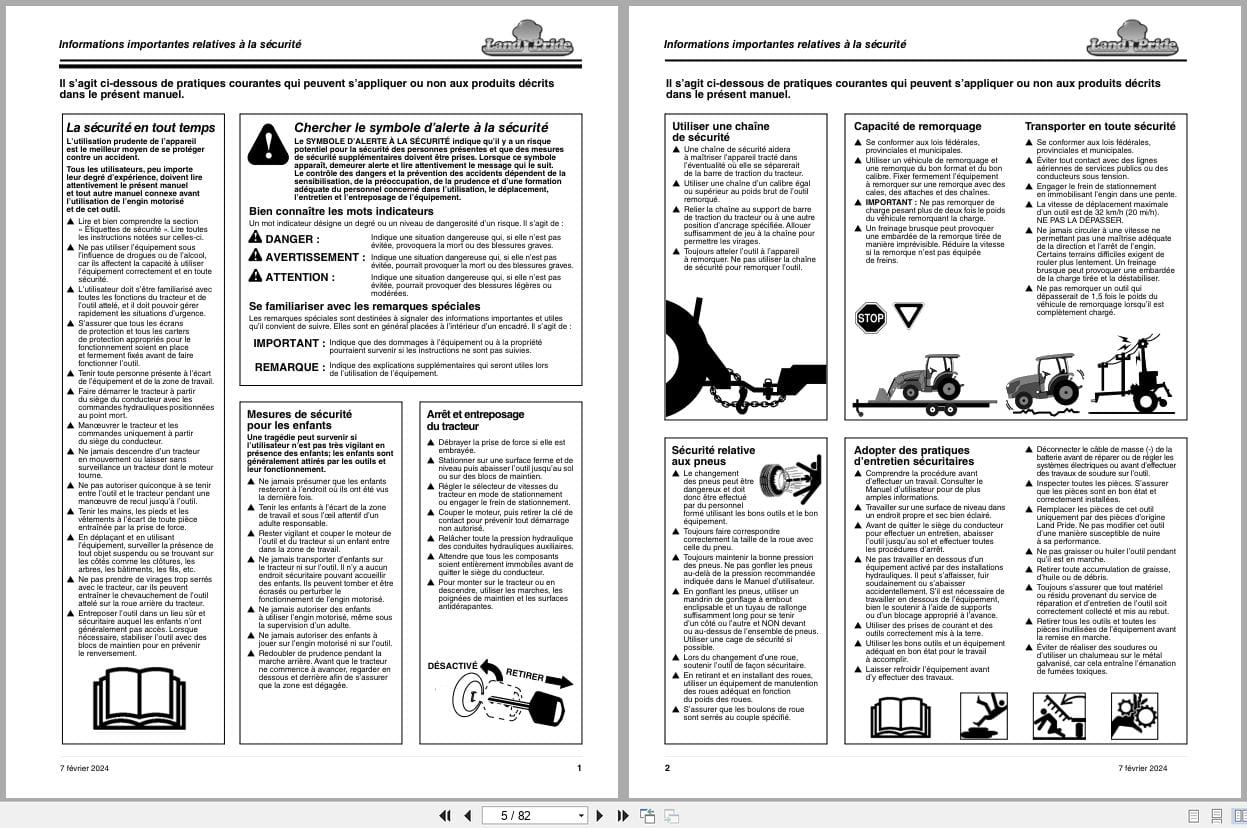

Land Pride Rotary Cutters RC5715 RCM5715 Operator Manual 331 431M FRC FR (1)

Land Pride Rotary Cutters RC5715 RCM5715 Operator Manual 331 431M FRC FR (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Land Pride Rotary Cutters RC5715 RCM5715 Operator Manual 331-431M-FRC FR

Size: 87.12 MB

Format: PDF

Language: French

Brand: Land Pride

Type of Machine: Rotary Cutters

Type of Manual: Operator Manual

Model: Land Pride RC5715, RCM5715 Rotary Cutters

Part Number: 331-431M-FRC

Publication Date: 2024

Number of Pages: 82 Pages

10 USD

Tags: Land Pride Operator Manual, Land Pride Rotary Cutters Manual, RC5715, RCM5715

Description

Description

Contents:
Section 1: Assembly and Setup
Tractor Requirements
Drawbar Setup
Hydraulic Outlets
Torque Requirements
Before You Begin
Hitch Options
Float-Lock Hitch
Land Pride Performance Hitch
Bar-Tite Drawbar Hitch
Ball Hitch
Floating Hook Hitch
Mounting the Hitch
Mounting the Parking Stand
Mounting the Spring Tube Loop
Constant Level Clevis Hitch
Land Pride Performance Hitch Hitch
Bar-Tite Hitch Hitch
Hydraulic Hookup
Side Axle Turnbuckle Setup
Fender Extension
Configuring the Locking Articulation Pins
Mounting the Drive Shaft
Connecting the Drive Shaft to the Tractor
Adjusting the Drive Shaft Support
Checking the Drive Shaft Play
Bleeding the Hydraulic System
Bleeding the Side Articulated Cylinder
Bleeding the Mower Deck Lift Cylinder
Connecting the LED Lights
Unhitching the Rotary Trimmer
Moving the Slow Moving Vehicle Sign
Section 2: Adjustments
Land Pride Performance Hitch Hole Diameter
Parking Stand Angle Alignment
Mounting the Lift Cylinder Base
Leveling the center and side cutting decks
Adjusting the cutting height
Section 3: Operating Instructions
Start-Up Checklist
Safety Information
Tractor Shutdown Procedure
Tractor and Trimmer Inspection
Avoid Extreme Turning Angles
Blade Operation Inspection
Transport Lock
Movement
Roadside Cutting
Field Setup
Field Inspection
Wings Unfolding
Adjusting the blade cutting height
Adjusting the wing lift device
in floating position
Speed range selection
Blade engagement
Blade disengagement
Removing the Blade Holder Obstruction
General Operating Instructions
Section 4: Options and Accessories
Safety Chain Guards
Hitches
Wing Articulation Options
Tire Options and Configurations
Cutter Deck Protection Options
Axle Options and Configurations
Center Axle Options
Heavy-Duty Single Suspension Center Axle
Independent Suspension Center Axle
Tandem Center Travel Axle
Parallel Pivot Center Axle
Side Axle Options
Heavy-Duty Single Suspension Side Axles
Independent Suspension Side Axles
Tandem Side Travel Axles
Parallel Pivot Side Axles
Drive Shaft Options
Main Drive Shaft, 540 RPM without Sprag Clutch
Main Drive Shaft, 540 RPM with
Overrunning Clutch
Main Drive Shaft, 1000 RPM without
Overrunning Clutch
Main Drive Shaft, 1000 RPM with
Overrunning Clutch
Blade Support Options
Blade Accessories
Single-Outlet Dual-Outlet Accessory
Double-Acting Lift Cylinder Accessory
Optional Mechanical Wing Lift
Optional Toolbox
Optional Tow Pins
Slow-Moving Vehicle Sign Accessory Section 5: Maintenance and Lubrication
General Maintenance
Hydraulic System
Tires
Driveshaft housing cover
Access to the side driveshaft housing cover
Sliding central driveshaft housing cover
Driveshafts
Drive shafts with friction clutches
Clutch running-in
Clutch disassembly, inspection and assembly
Disassembly
Inspection
Assembly
Brushcutter Blades
Hitch Wear Points
Constant Level Hitch Clevis Wear Points
Land Pride Performance Hitch Wear Points
Bar-Tite Drawbar Hitch Wear Points
Skids
Side Deck Skids
Side Skid Guards
Center Skids
Swappable Spacer Replacement
Chain Guards
Axle Pivot Bushings
Long-Term Storage
Ordering Spare Parts
Lubrication Points
Axle Bearing
Adjustable Tensioner
Parking Stand
Cutter Deck Hinges with Wings Lowered
Land Pride Performance Hitch (Optional)
Bar-Tite Drawbar Hitch (Optional)
Transmission and Splitter Lubrication
Side Driveshaft Cover Grease Point
Lateral drive shaft profile tubes
Lateral drive shaft joints
Intermediate drive shaft joints
Main CV drive shaft protection housing grease point
Main CV drive shaft profile tubes with external grease point
Main CV joints
CV Joint Access
Section 6: Specifications and Capacities
Section 7: Features and Benefits
Section 8: Troubleshooting
Section 9: Torque and Tire Pressure Chart
Section 10: Warranty
