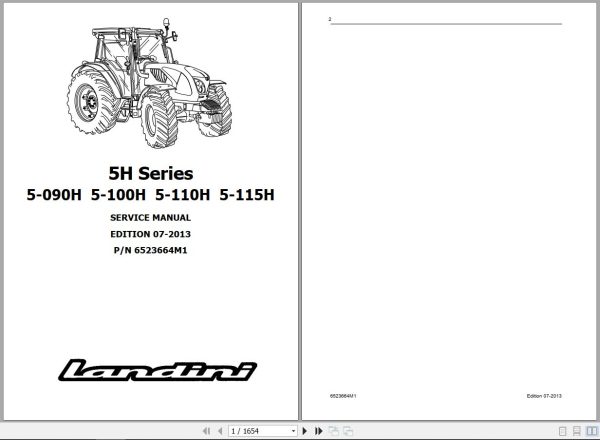

Landini Tractor 5-090H to 5-115H Service Manual 6523664M1 EN

Description

Contents:
– En Copertina 5h
– En 1001
Safety Notes
General Instructions
Symbols
Danger Signs
Lubricants And Fuels
– En 2001 01
Main Technical Specifications
Driving Torque Values
Specific Equipment
Electrical Connectors
– En 2001 01 854f Ulnr0622-00 Specifiche
Specications 854e-E34ta And 854f-E34t Industrial Engines
– En 2001 02 854f Ulnr0623-00 Funzionamento Controlli E Registrazioni
Systems Operation Testing And Adjusting 854e-E34ta And 854f-E34t Industrial Engines

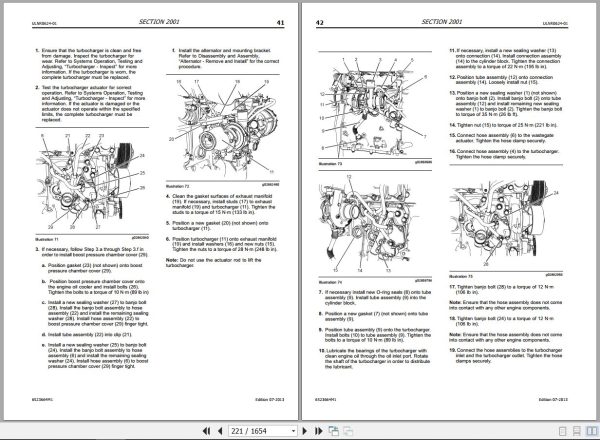

– En 2001 03 854f Ulnr0624-01 Smontaggio E Rimontaggio
Disassembly And Assembly 854e-E34ta Industrial Engine
– En 3
Description And Operation
Components Of The Fuelling System
– En 4001
Special Tools
Circuit Test
Description And Wiring Diagrams
Starting And Recharging Circuit (Diagram 1, Part 1)
Preheating Circuit (Diagram 1, Part 2))

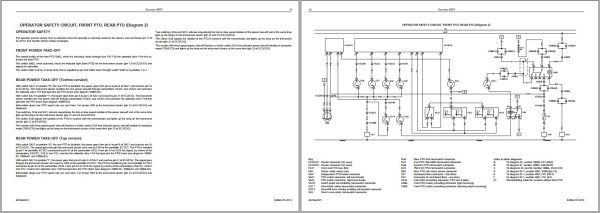

Operator Safety Circuit, Front Pto, Rear Pto (Diagram 2)
Circuit For High Beams/Low Beams, Horn (Diagram 3)
Hazard Lights, Turn Indicator Lights (Eu), Revolving Beacon Circuit (Diagram 4)
Brake Lights, Diff Lock Circuit
(Diagram 5)
Circuit For Parking Lights (Eu), License Plate Lights, Inside Lights
(Diagram 6, Part 1)
Circuit For Parking Lights (Nao), License Plate Lights, Inside Lights
(Diagram 6, Part 2)
Four-Wheel Drive, Auxiliary Socket, Front Loader Circuit (Diagram 7)
Trailer Brake Circuit (Diagram 8)
Air Conditioning Circuit (Diagram 9)
Cab Circuit – Work Lights (Diagram 10)
Cab Circuit – Front Window Washer/Wiper, Rear Window Washer/Wiper, Air Seat (Diagram 11)
Cab Circuit – Radio, Cigarette Lighter (Diagram 12)
Hazard Lights, Turn Indicator Lights (Nao), Revolving Beacon Circuit (Diagram 13)
Complete List Of Connections
– En 4003
Instrument Cluster Specifications
Display Operation
– En 5
Description And Operation
– En 5010
Main Specifications
Driving Torque Values
Specific Equipment
Steering Column
– En 6
Sections And Perspective Views
Controls
Description And Operation
– En 6010
Main Specifications
Driving Torques And Sealants
Specific Equipment
Drive Transmission And 4wd Engagement (Spring-On)
Precautions And Safety Recommendations
Differential Unit Overhaul
Troubleshooting For The Front Axle Diff Lock
– En 6011
Technical Specifications
Driving Torque Values
Disassembling-Assembling Axle Housing Parts
– En 6012
Technical Specifications
Driving Torque Values
Specific Equipment
Splitting-Remounting The Torsional Coupling
Disassembling-Assembling Axle Housing Parts
Clutches Assembly Overhaul
– En 6013
Technical Specifications
Specific Equipment
Splitting-Remounting Of Transmission Housing
Rear Differential Housing Overhauling
Troubleshooting For The Bevel Gear Pair And Differential
Troubleshooting For The Transmission
– En 6014
Technical Specifications
Driving Torque Values
Specific Equipment
Transmission Housing Splitting-Remounting
Troubleshooting For The Gearbox With 4wd Housing
– En 6015
Main Specifications
Driving Torque Values
Main Components And Description
Front Final Drive Overhaul
Troubleshooting For The Side Final Drives
– En 6016
Technical Specifications
Driving Torque Values
Specific Equipment
Drive Linkage
Description Of Controls
Pto For Nao Markets
Power Take-Off Overhauling
– En 7
– En 7003
Main Specifications
Inspections And Air Bleeding
Adjustments
– En 8
Sections And Perspective Views
Controls
Description And Operation
– En 8001
Main Technical Specifications
Driving Torque Values
Specific Equipment
Rear Mechanical Hitch
– En 8002
Main Technical Specifications
Specific Equipment
Rear Mechanical Hitch Pressure Test
Main Components And Description
Component Identification
Hydraulic Supply System To Rear Hitch
Antishock Valve
Electro-Hydraulic Control Valve
External Buttons
Sensors
Shock Absorber Function
Quick Operating Test
– En 10
Introduction
Tractor Can Bus Diagram
Controller Locations
Safety Regulations
Diagnosis And Troubleshooting
Conventional Troubleshooting
Argo Tool Electronic Diagnostic System
Description And Wiring Diagrams
– En 10002
Special Tools
General Information On Electronic Transmission
Control
Safety Regulations
Description And Wiring Diagrams
Electronic Hitch Circuit (Diagram 1)
Electronic Hitch Circuit (Diagram 2)
– En 10004
Special Tools
General Information On Electronic Control Of Rear Power Take-Off
Safety Regulations
Description And Wiring Diagrams
Power Take-Off Controller Circuit (Set-Up With Mechanic Transmission) (Diagram 1)
– En 10005
Special Tools
Introduction
Engine Controller, Dpf Sensors And Frame Circuit
(Diagram 1)
Engine Controller, Engine Sensors Circuit
(Diagram 2)
Engine, Interface Controller Circuit (Diagram 3)
Engine, Interface Controller Circuit (Diagram 4)
Engine Controller, Electric Injectors Interface Circuit (Diagram 5)
– En 10005 854f Ulnr0612-03 Ricerca Guasti
Troubleshooting 854e-E34ta And 854f-E34t Industrial Engines
– En 10006
Special Tools
General Information On Electronic Transmission
Control
Safety Regulations
Calibration Of Position Sensor In Clutch Pedal
Transmission Calibration
Transmission Calibration Errors
Description And Wiring Diagrams
Transmission Controller Circuit (Diagram 1)
Transmission Controller Circuit (Diagram 2)
Transmission Circuit
With Mechanical Reverse Shuttle (Diagram 3)
– En 10009
Special Tools
General Information About The Instrument
Controller
Safety Regulations
Description And Wiring Diagrams
Instrument Cluster Controller Circuit (Diagram 1)
Instrument Cluster Controller Circuit (Diagram 2)
– En 10010
Special Tools
Connection Of Argo Tool Electronic Diagnostic System To The Tractor
Connecting The Argo Diagnostic
Tester To The Tractor
How To Download The Instrument Panel Software.
How To Download The Transmission Software
