Name: Landini Tractor MISTRAL 2-055 MISTRAL 2-060 Service Manual 6698144A1 EN
SKU: 450589
Availability: InStock

Landini Tractor MISTRAL 2 055 MISTRAL 2 060 Service Manual 6698144A1 EN 1

Landini Tractor MISTRAL 2 055 MISTRAL 2 060 Service Manual 6698144A1 EN 2

Landini Tractor MISTRAL 2 055 MISTRAL 2 060 Service Manual 6698144A1 EN 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Landini Tractor MISTRAL 2-055 MISTRAL 2-060 Service Manual 6698144A1 EN

Size: 391.85 MB

Format: PDF

Language: English

Brand: Landini

Type of Machine: Tractor

Type of Manual: Service Manual, Hydraulic and Electrical Diagrams

Model: Landini MISTRAL 2-055 MISTRAL 2-060 Tractor

Part Number: 6698144A1

Engine: Stage V

Publication Date: 2021

Number of Pages: 1344 Pages

120 USD

Tag: Landini Manual

Description

Description

Contents:

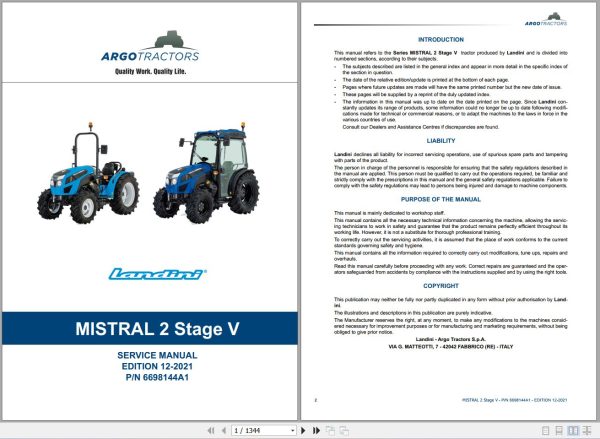

– Mistral 2 Stage V
Introduction
Liability
Purpose Of The Manual
Copyright
Table Of Contents
– 1001 – Safety
Contents
Introduction
General Technical Notes
Safe Maintenance
Tightening Torques Values
– 2000 – Engine
Contents
Safety
Technical Specifications
Attachments
Engine Removal
Engine Assembly
– 3005 – Fuel Tank
Contents
Safety
Technical Specifications
Exploded Views
Fuel Tank Removal
Fuel Tank Assembly
– 4001 – Electrical System And Diagnostics
Contents
Technical Specifications
Safety
Fuses And Relays
Component Locations

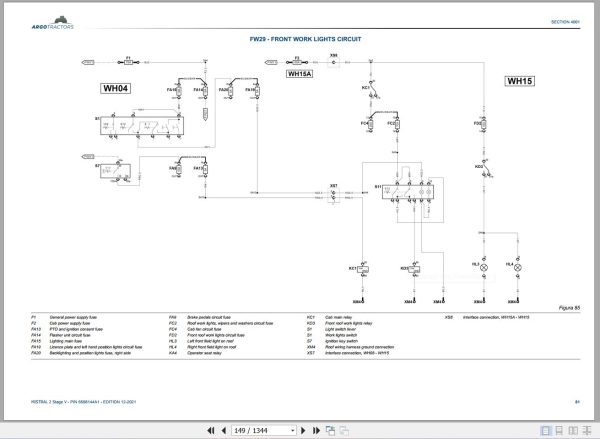

Wiring Diagrams
– 4002 – Instrument Cluster And Calibrations Set-Up
Contents
Instrument Cluster Set-Up
– 5000 – Steering System
Contents
Operation
– 5001 – Steering Column And Power Steering System
Contents
Safety
Technical Specifications
Exploded Views
Steering Column And Power Steering System Removal
Steering Column And Power Steering System Assembly
– 6000 – Transmission
Contents
Description And Operation
– 6001 – Engine-Transmission Coupling
Contents
Safety
Technical Specifications
Exploded Views
Clutch Disassembly
Clutch Assembly
Adjustments
– 6006 – Gearbox And Ranges
Contents
Safety
Technical Specifications
Description
Exploded Views
Gearbox Splitting
Rear Final Drives Removal
Adjustments And Regulations
– 6012 – Rear Differential
Contents
Safety
Technical Specifications
Rear Differential Disassembly
Adjustments And Inspections
Rear Differential Assembly
Adjustments
Troubleshooting
– 6015 – Rear Final Drives
Contents
Safety
Technical Specifications
Description
Exploded Views
Rear Final Drives Removal
Rear Final Drives Assembly
Driving Wheel Shaft Overhaul
Troubleshooting
– 6019 – Rear Power Take-Off
Contents
Safety
Technical Specifications
Disassembly Of The Rear Pto
Rear Pto Assembly
Troubleshooting
– 6021 – Front Axle
Contents
Safety
Technical Specifications
Section Views
Rear

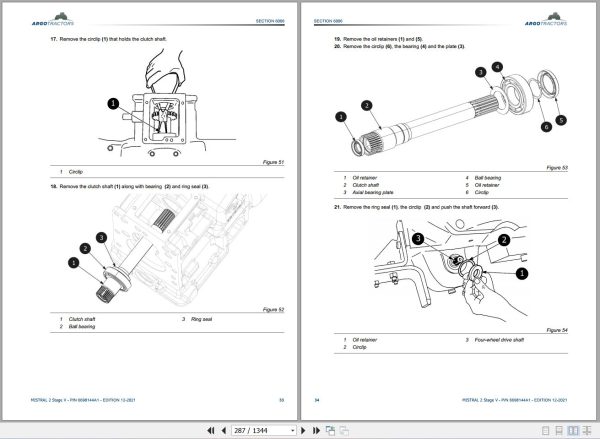

Front Axle Disassembling
Front Axle Assembling
Front Axle Differential Disassembly
Front Axle Differential Assembly
Bevel Gear Pair Overhauling
Front Differential Lock Overhaul
Front Wheel Hub Overhaul
Splitting And Re-Assembly Of Front Final Drive
Steering Cylinder Overhaul
Front Final Drive Overhaul
Troubleshooting
– 7000 – Brakes
Contents
Main Brakes
Parking Brake
Safety
Rear Brakes Removal
Rear Brakes Assembly
Adjustments And Inspections
Troubleshooting
– 8000 – Hydraulic Circuit
Contents
Technical Specifications
Hydraulic Circuit
Iso Hydraulic Diagram
Hydraulic System Components
– 8005 – Front Hitch And Pto
Contents
Safety
Exploded Views
Technical Specifications
Front Hitch Disassembling
Front Hitch Assembling
Disassembly Of The Front Pto
Assembling The Front Pto
Check Of Pto Engagement / Disengagement
– 8007 – Rear Hitch
Contents
Safety
Rear Hitch Removal
Rear Hitch Re-Assembly
Adjustments And Inspections
Troubleshooting
– 9002 – Cab
Contents
Technical Specifications
Cab Removal
Cab Re-Assembly
– 9003 – Hood
Contents
Hood Removal
Hood Assembly
– 9004 – Air Conditioning System
Contents
Safety
General
Procedures
Troubleshooting
– Attachments
Contents
Engine Workshop Manual
Diagnostic And Fault Codes
