Landoll Drexel Forklift LSC 25 HD-II LSC 30 HD-II Parts Manual F-1141-2305

Size: 15.06 MB
Format: PDF
Language: English
Brand: Landoll Drexel
Type of Machine: Forklift
Type of Manual: Parts Manual
Model: Landoll Drexel LSC 25 HD-II, LSC 30 HD-II Forklift
Part Number: F-1141-2305
Publication Date: 2023
Number of Pages: 124 Pages

20 USD

Tags: , , ,
  • Description

Description

Contents:

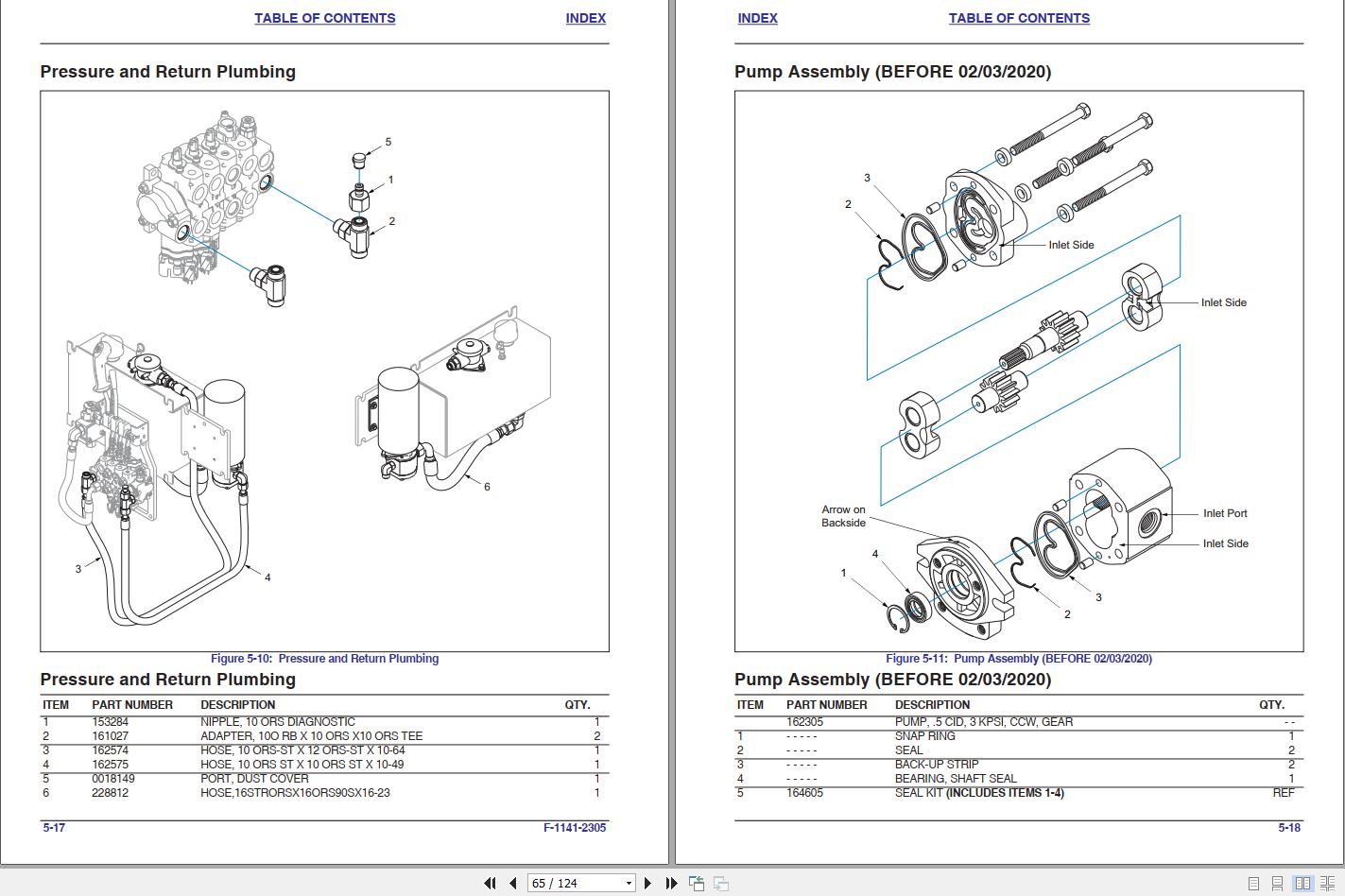

Brakes
Brake Assembly Installation
Brake Assembly, Left
Brake Assembly, Right
Brake Line Installation
Brake Pedal Assembly
Brake Pedal Installation
Electric Park Brake
Covers and Counterweights
Battery Compartment Components
Battery Compartment Counterweights
Counterweight Installation (LSC 25 ONLY)
Dash Panel Cover Installation
Front Cover Installation
Motor Cover Installation
Decals
Decal Placement
Decals
Electric
Back-up Alarm
Battery Connector and Cable Installation
Controller and Contactors
Dash Panel Electrical Components
Heavy Cables
Horn Installation
Hydraulic Pump Motor Assembly
Lighting
Operator Presence Switch
Static Strap Installation
Valve Wire Harness (BEFORE 08/15/2022)
Valve Wire Harness (AFTER 08/15/2022)
Wiring Diagram
Hydraulics
Control Valve (BEFORE 08/15/2022)
Control Valve (AFTER 08/15/2022)
Control Valve Installation
Hydraulic Controls (BEFORE 06/01/2020)
Hydraulic Controls (AFTER 06/01/2020)
Hydraulic Diagram
In-Tank Filter Assembly
Lift System
Pressure and Return Plumbing
Pump Assembly (BEFORE 02/03/2020)
Pump Assembly (AFTER 02/03/2020)
Pump/Motor Assembly
Pump/Motor Installation
Steering System
Steering Column and Orbital Installation
Tank Assembly
Tank Installation
Tilt System
Tilt Cylinder – 3”
Tilt Cylinder – 4”
Mast and Front end
Axle Installation
Fork Information
Load Backrest
Load Wheel Assembly
Load Wheel Installation
Mast Information
Mast Installation
Mast Mount Installation
Tilt Cylinder Installation
Operator’s Compartment
Fire Extinguisher
Overhead Guard Installation
Steering Handle Installation
Cushions
Powertrain
Drive Assembly
Drive Wheel
Options
Lighting Options
Mast
Operator Restraint Belt Installation
Overhead Guard Third Leg Installation
Rear Bumper
Rear Door Assembly
Rear Platform Extension Kit
Sideshift
Options
Service Parts and Tools
Service Parts
Service Tools and Software
Glossary
Index
