Landoll Drexel Forklift SL30 AC-2 SL40 AC-2 SL50 AC-2 Parts Manual F-934-0223

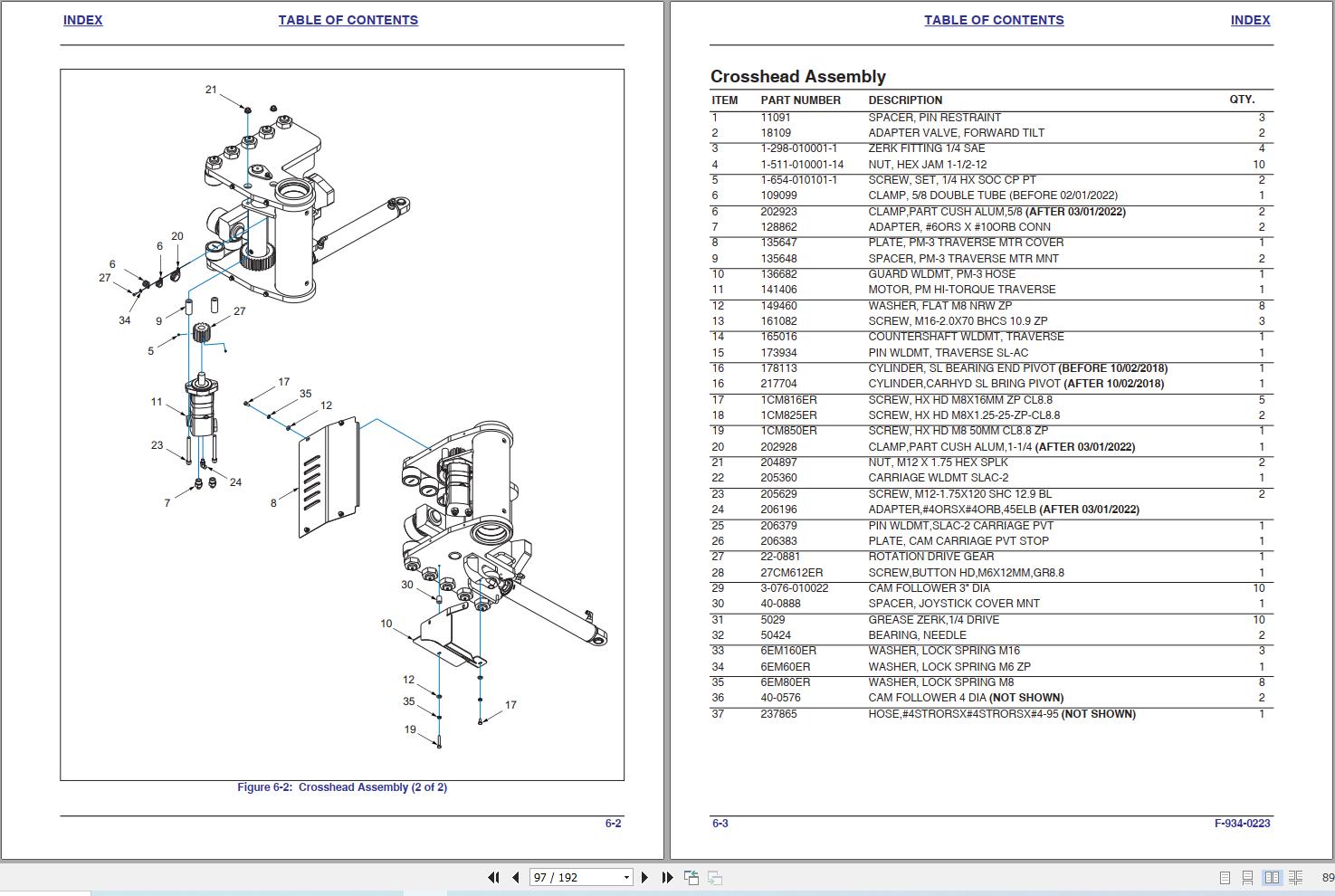

Landoll Drexel Forklift SL30 AC 2 SL40 AC 2 SL50 AC 2 Parts Manual F 934 0223 (1)
Landoll Drexel Forklift SL30 AC 2 SL40 AC 2 SL50 AC 2 Parts Manual F 934 0223 (2)
Landoll Drexel Forklift SL30 AC 2 SL40 AC 2 SL50 AC 2 Parts Manual F 934 0223 (1)
Landoll Drexel Forklift SL30 AC 2 SL40 AC 2 SL50 AC 2 Parts Manual F 934 0223 (2)
✓

Expert Support

✓

Full Speed

✓

100% Working

Landoll Drexel Forklift SL30 AC-2 SL40 AC-2 SL50 AC-2 Parts Manual F-934-0223

Size: 22.87 MB
Format: PDF
Language: English
Brand: Landoll Drexel
Type of Machine: Forklift
Type of Manual: Parts Manual
Model: Landoll Drexel SL30 AC-2, SL40 AC-2, SL50 AC-2 Forklift
Part Number: F-934-0223
Publication Date: 2023
Number of Pages: 192 Pages

20 USD

Tags: , , , ,
  • Description

Description

Contents:
Brakes
Brake Components
Parking Brake Components
Brake Pedal Assembly
Brake Pedal Assembly Mounting
Covers and Counterweights
Battery Cover Components
Counterweights SL30/40
Counterweights SL50
Covers
SL50 Battery Counterweight
Decals and Placards
Decal and Placard Placement
Decals and Placards
Electrical
Controller Mounting
Contactors and Fuses (BEFORE 08/30/2021)
Contactors and Fuses (AFTER 08/30/2021) (BEFORE 02/24/2022)
Contactors and Fuses (AFTER 02/24/2022)
Drive Motor Fans
E-Stop and Side Shift Proximity Switch
Heavy Cables
Horn and Backup Alarm
Lighting
Pump Motor Breakdown
Steering Column – Electrical
Wiring Diagram
Hydraulics
Hydraulic Diagram
Hydraulic Valve
Filter (High Pressure)
Pivot (Swingmast) Hydraulics
Pump and Tank Connections
Pump and Motor Assembly
Side Shift (Traverse) Hydraulics
Steering Hydraulics
Tank (Reservoir) Assembly (BEFORE 02/01/2022)
Tank (Reservoir) Assembly (AFTER 02/01/2022)
Tilt Hydraulics
Pivot Cylinder Assembly
Tilt Cylinder Assembly
Triple/Quad Mast – Single Auxiliary Hydraulic Option
Triple/Quad Mast – Double Auxiliary Hydraulic Option
Mast and Front End
Crosshead Assembly
Swingarm Assembly
Forks
Load Backrest
Mast Information
Rack Installation
Operator’s Compartment
Accelerator Pedal and Floor
Joystick
Overhead Guard
Seat Assembly
Steering Column Assembly
Steering Column Installation
Powertrain and Steering
Drive Motors Installation
Gearbox Assembly – Brevini 29:1 In-Line
Gearbox Assembly, RR USA Planetary 29.3:1 (BEFORE 02/03/2021)
Gearbox Assembly, RR USA Planetary 29.3:1 Ground Gear (AFTER 02/03/2021)
Drive Motor Assembly
Steering Axle Assembly
Steering Cylinder Assembly
Steering Axle Mounting
Wheels and Tires
Options
Battery Tray
Battery Roll-Out Tray
Cold Storage
EE Option Components
Fast Charge
Fast Charge Cover
Fire Extinguishers
Landguide
Lift Limit
Lighting
Long Load Support
Martin Cab
OHG Cover Options
Operator’s Fan
Operator’s Protection – Right Side
Park Brake Alarm
Rear Storage
Roller Guidance
Glossary
Index
