Name: Liebherr Axial Piston Pump LH30VO 028 to 100 Operating Instruction
SKU: 444680
Availability: InStock

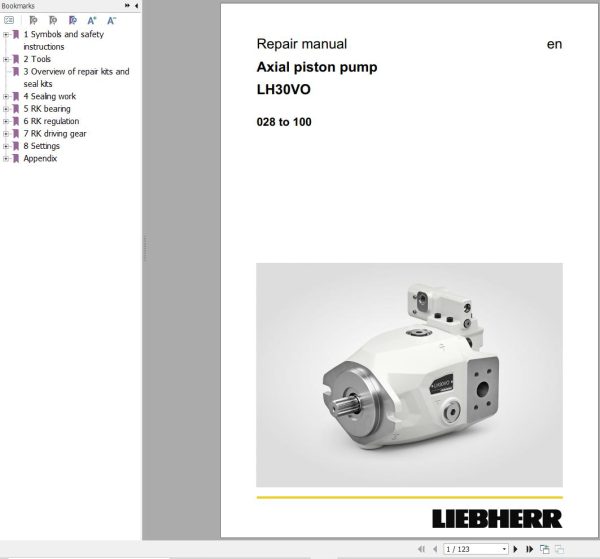

Liebherr Axial Piston Pump LH30VO 028 to 100 Operating Instruction 1

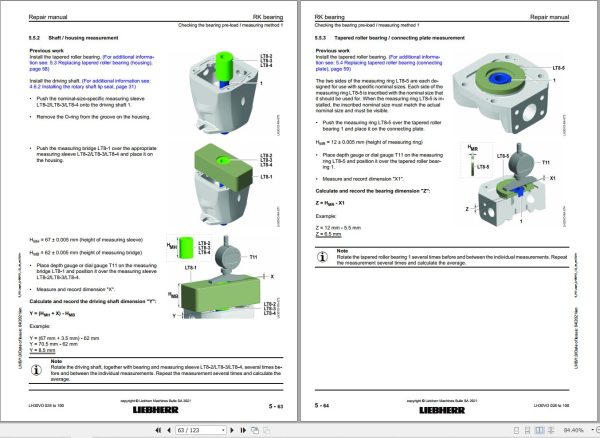

Liebherr Axial Piston Pump LH30VO 028 to 100 Operating Instruction 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Axial Piston Pump LH30VO 028 to 100 Operating Instruction

Size: 15.12 MB

Format: PDF

Language: English

Brand: Liebherr

Type of Machine: Axial Piston Pump

Type of Manual: Operating Instruction

Model: Liebherr LH30VO 028 to 100 Axial Piston Pump

Number of Pages: 123 Pages

10 USD

Tag: Liebherr Heavy Equipment Manual

Description

Description

Contents:
1 Symbols and safety instructions
1.1 Symbols in the repair manual
1.2 Safety instructions
1.3 Target group
1.4 Limitation of liability
1.5 Personal protective equipment
1.6 Operating and maintenance areas
1.7 Machine safety / Functional safety
1.8 Signs
2 Tools
2.1 Commercially available tools T = Tool
2.2 Special tool LT = Liebherr tool
2.3 Instructions for the use of tools
3 Overview of repair kits and seal kits
4 Sealing work
4.1 Seal kit, complete
4.2 Tools
4.3 Seal kit for base unit
4.4 Seal kit for regulating valve
4.5 Sealing the connecting plate
4.6 Sealing the drive shaft
4.7 Sealing the regulating valve
4.8 Sealing the through drive
5 RK bearing
5.1 Overview
5.2 Tools
5.3 Replacing tapered roller bearing (housing)
5.4 Replacing tapered roller bearing (connecting plate)
5.5 Checking the bearing pre-load / measuring method 1
5.6 Checking the bearing pre-load / measuring method 2
5.7 Replacing bearing shell (housing)
6 RK regulation
6.1 Overview
6.2 Replacing the regulation
7 RK driving gear
7.1 Overview
7.2 Tools
7.3 Removing the driving gear
7.4 Replacing the central spring
7.5 Checking the driving gear
7.6 Installing the driving gear
8 Settings
8.1 General information
8.2 Regulating valve overview
8.3 Measuring tools/adjustment tools
8.4 LS0DA- control
8.5 LS1DA- control
8.6 DF-DA- control
8.7 DE2/4/6/8- control (falling characteristic)
8.8 Testing/adjustment tasks
8.9 Checking/adjusting the LS0 / LS1 regulating valve
8.10 Checking/adjusting the DA- regulating valve
8.11 Checking/adjusting the DF- regulating valve
8.12 Checking/adjusting the DE2/4/6/8- regulating valve
Appendix
Commercially available tools
