Name: Liebherr Crane LG 1750 Z73758 Electric and Hydraulic Diagrams EN
SKU: 477523
Price: 100.00 USD
Availability: InStock

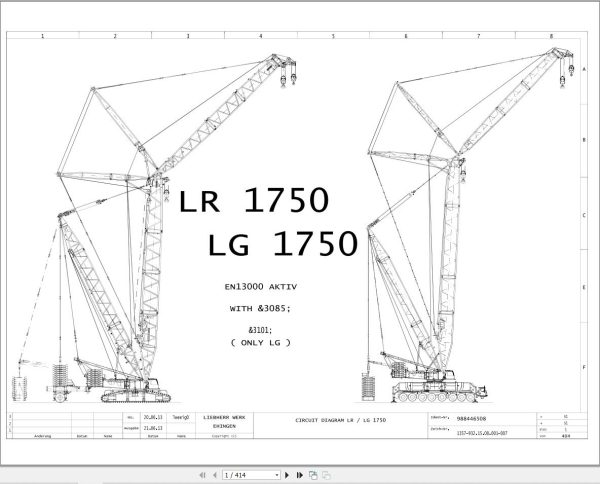

Liebherr Crane LG 1750 Z73758 Electric and Hydraulic Diagrams EN 1

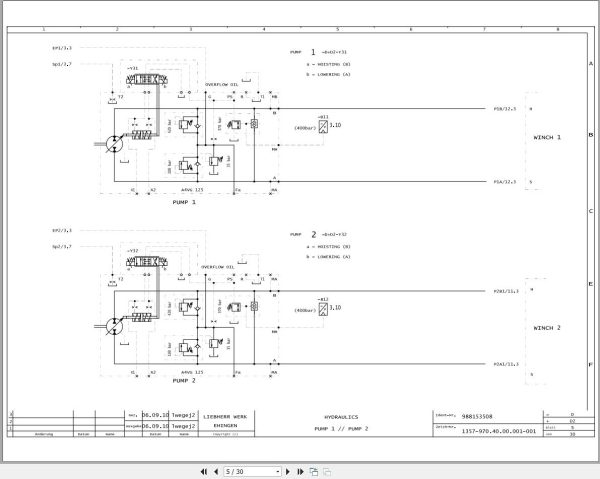

Liebherr Crane LG 1750 Z73758 Electric and Hydraulic Diagrams EN 2

Liebherr Crane LG 1750 Z73758 Electric and Hydraulic Diagrams EN 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Crane LG 1750 Z73758 Electric and Hydraulic Diagrams EN

Size: 128.71 MB

Format: PDF

Language: English

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LG 1750 Z73758 Crane

(LG1750, LG/1750, LG_1750, LG-1750)

100 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:
Additional Hydraulics 2 Slewing Gears 984143008_999_EN.pdf (3 Pages)
Additional Hydraulics Pin Extractor 982848308_999_EN.pdf (2 Pages)
Control Hydraulics Diagram 98007561_999_EN.pdf (20 Pages)
Control Hydraulics Diagram 985974408_999_EN.pdf (20 Pages)
Electrical Diagram 988446508_999_EN.pdf (414 Pages)
Hydraulic Diagram 988153508_999_EN.pdf (30 Pages)
Hydraulics Double Suspension Tubing Diagram 986371508_999_EN.pdf (7 Pages)
Hydraulics Double Suspension Tubing Diagram 989793908_999_EN.pdf (7 Pages)
Hydraulics Outrigger Detachable Tubing Diagram 986392108_999_EN.pdf (4 Pages)
Pneum. Driver’s Cab Tubing Diagram 983517508_999_EN.pdf (4 Pages)
Pre-Assembly Bulkhead Plate 983517908_999_EN.pdf (3 Pages)
Retrofit Bosch – Hawe Block – Steering Front 988263908_999_EN.pdf (3 Pages)
Steering Hydraulics Pipework 98007562_999_EN.pdf (9 Pages)
Steering Hydraulics Pipework 986371308_999_EN.pdf (9 Pages)
Wiring Diagram 988252808_999_EN.pdf (167 Pages)
