Liebherr Crane LR 1400-1 Z74027 Electric and Hydraulic Diagrams DE

Size: 33.79 MB

Format: PDF

Language: German

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LR 1400-1 Z74027 Crane

(LR1400-1, LR/1400-1, LR_1400-1, LR-1400-1, LR-1400/1)

200 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:
Additional Hydraulics Diagram 4 Slewing Gears 982742108_003 DE.pdf (5 Pages)
Additional Hydraulics Diagram 981011408_004 DE.pdf (3 Pages)
Additional Hydraulics Diagram 982848308_000 DE.pdf (1 Page)
Connection List S2 981191808_002 DE.pdf (22 Pages)
Crane Control Electrical Diagram 981190008_008 DE.pdf (207 Pages)
Hydraulics Ballast Trailer Diagram 982747008_003 DE.pdf (12 Pages)

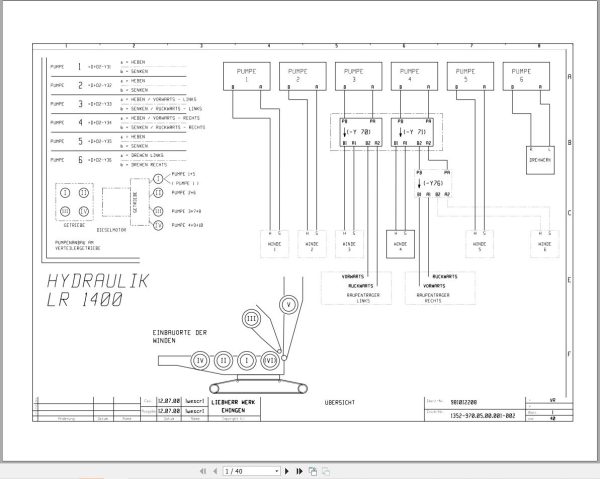

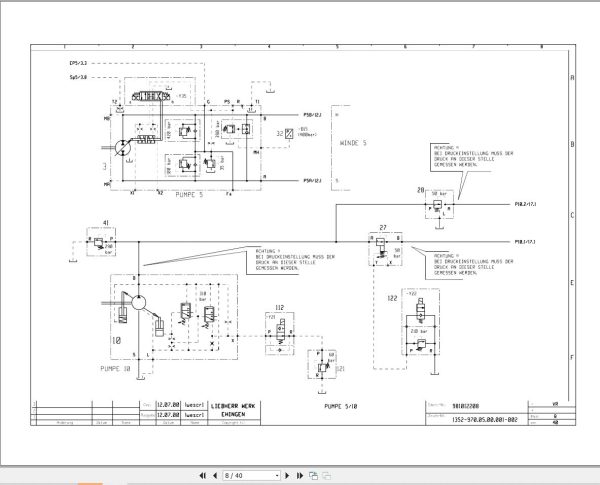

Hydraulics Diagram 981012208_002 DE.pdf (40 Pages)
Hydraulics Diagram 982712308_002 DE.pdf (11 Pages)
Hydraulics Diagram Additional Parts Db-Raupe 983524808_001 DE.pdf (3 Pages)
Strangplan W1065 982621108_000 DE.pdf (2 Pages)
Strangplan W1066 982621208_001 DE.pdf (2 Pages)
