Name: Liebherr Crane LTC 1050-3.1 Z56601 Electric and Hydraulic Diagrams DE
SKU: 477657
Availability: InStock

Liebherr Crane LTC 1050 3.1 Z56601 Electric and Hydraulic Diagrams DE 1

Liebherr Crane LTC 1050 3.1 Z56601 Electric and Hydraulic Diagrams DE 2

Liebherr Crane LTC 1050 3.1 Z56601 Electric and Hydraulic Diagrams DE 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Crane LTC 1050-3.1 Z56601 Electric and Hydraulic Diagrams DE

Size: 113.39 MB

Format: PDF

Language: German

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LTC 1050-3.1 Z56601 Crane

(LTC1050-3.1, LTC/1050-3.1, LTC_1050-3.1, LTC-1050-3.1, LTC-1050/3.1)

150 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:

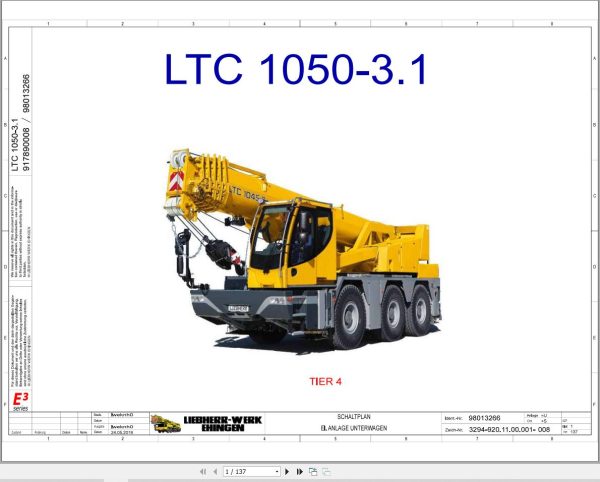

Compressed-Air System Superstructure 987665408_006 DE.pdf (3 Pages)
Compressed-Air System Tubing Diagram 98013385_006 DE.pdf (4 Pages)
Control Hydraulics Compressed-Air System 98013384_003 DE.pdf (15 Pages)

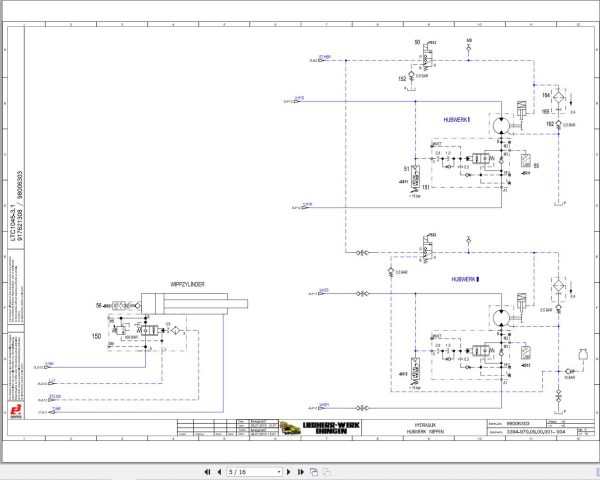

Hydraulic Diagram 98006303_004 DE.pdf (16 Pages)
Hydraulics Hoist Gear II Preparation Pipework 98014290_000 DE.pdf (3 Pages)
Hydraulics Outriggers Tubing Diagram 98013605_003 DE.pdf (3 Pages)
Hydraulics Outriggers Tubing Diagram 98013605_003 DE.pdf (3 Pages)
Hydraulics Steering Tubing Diagram 98014646_004 DE.pdf (4 Pages)
Hydraulics Superstructure Pipework Cabin Height Adjustable 98006334_008 DE.pdf (8 Pages)
Hydraulics Suspension Tubing Diagram 98013603_005 DE.pdf (7 Pages)
Pneumatic Plate Operator’s Cab Tubing Diagram 988217208_006 DE.pdf (3 Pages)

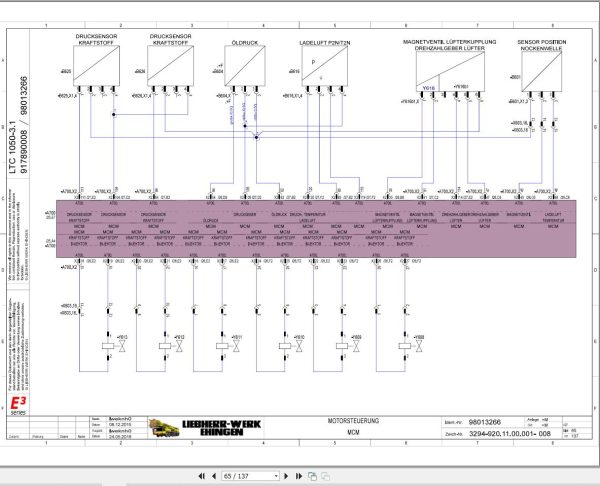

Wiring Diagram 98013266_008 DE.pdf (137 Pages)
Wiring Diagram 98014142_006 DE.pdf (178 Pages)
