Name: Liebherr Crane LTF 1045-4.1 Z75593 Electric and Hydraulic Diagrams DE
SKU: 477687
Availability: InStock

Liebherr Crane LTF 1045 4.1 Z75593 Electric and Hydraulic Diagrams DE 1

Liebherr Crane LTF 1045 4.1 Z75593 Electric and Hydraulic Diagrams DE 2

Liebherr Crane LTF 1045 4.1 Z75593 Electric and Hydraulic Diagrams DE 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Crane LTF 1045-4.1 Z75593 Electric and Hydraulic Diagrams DE

Size: 70.28 MB

Format: PDF

Language: German

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LTF 1045-4.1 Z75593 Crane

(LTF1045-4.1, LTF/1045-4.1, LTF_1045-4.1, LTF-1045-4.1, LTF-1045/4.1)

150 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:

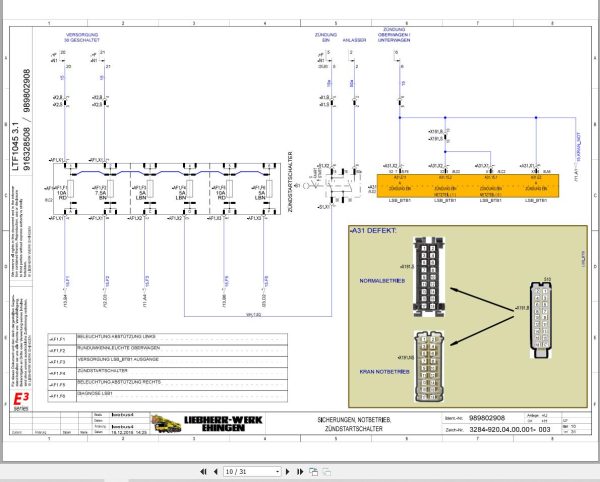

Electric Diagram 989802908_003 DE.pdf (31 Pages)
Electric Diagram 989827208_004 DE.pdf (182 Pages)

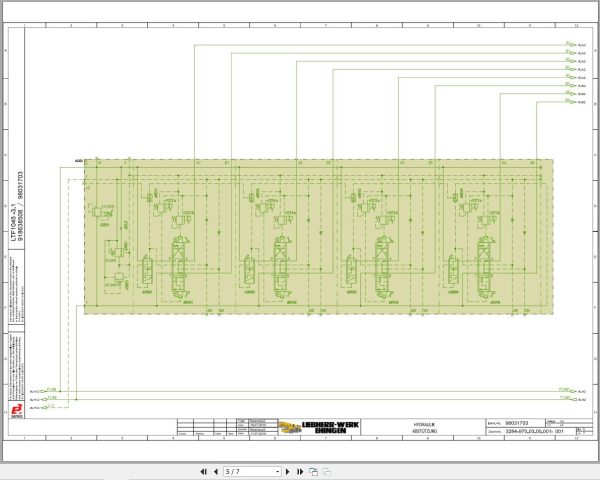

Hydraulics Outriggers 98031703_001 DE.pdf (7 Pages)
Hydraulics Outriggers Tubing Diagram 98031711_001 DE.pdf (5 Pages)
Hydraulics Superstructure General Layout Emergency Operation 98038863_001 DE.pdf (13 Pages)
Hydraulics Superstructure Pipework 98038864_000 DE.pdf (7 Pages)
