Name: Liebherr Crane LTM 1045-3.1 Z53447 Electric and Hydraulic Diagrams FR
SKU: 477754
Availability: InStock

Liebherr Crane LTM 1045 3.1 Z53447 Electric and Hydraulic Diagrams FR 1

Liebherr Crane LTM 1045 3.1 Z53447 Electric and Hydraulic Diagrams FR 2

Liebherr Crane LTM 1045 3.1 Z53447 Electric and Hydraulic Diagrams FR 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Crane LTM 1045-3.1 Z53447 Electric and Hydraulic Diagrams FR

Size: 42.94 MB

Format: PDF

Language: French

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LTM 1045-3.1 Z53447 Crane

(LTM1045-3.1, LTM/1045-3.1, LTM_1045-3.1, LTM-1045-3.1, LTM-1045/3.1)

150 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:
Bulkhead Plate Complete 983870108_999_FR.pdf (3 Pages)

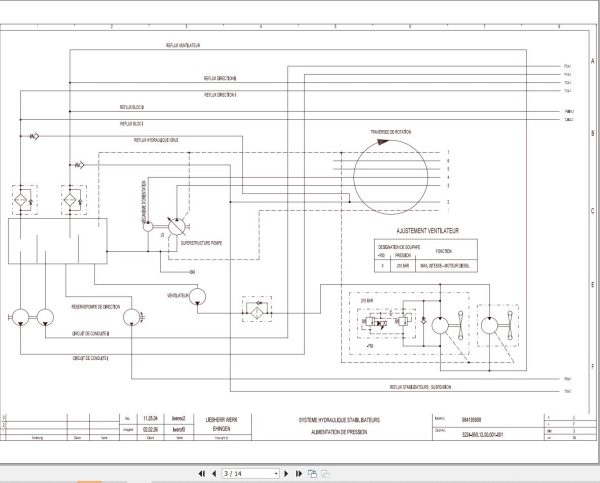

Control Hydraulics Compressed-Air System 984195908_999_FR.pdf (14 Pages)

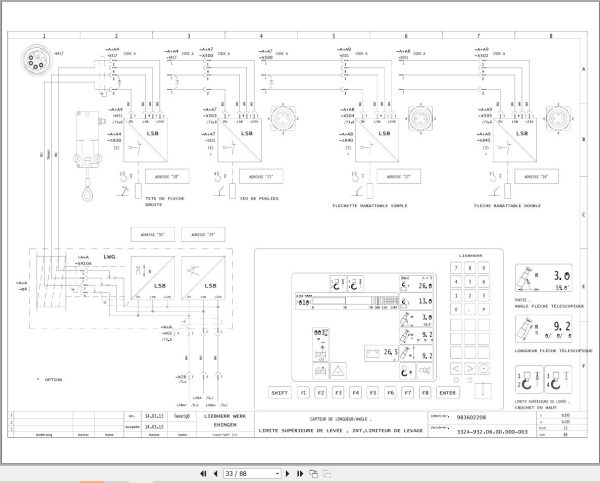

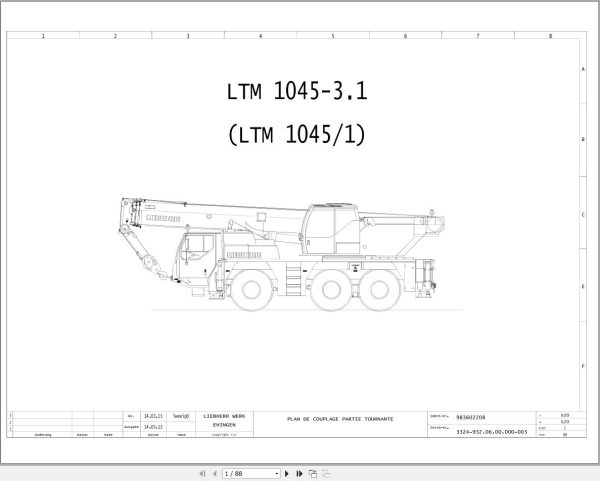

Electric Diagram 983602208_999_FR.pdf (88 Pages)
Electric Diagram 984317508_999_FR.pdf (144 Pages)
Hydraulics Outriggers Pipework 983838408_999_FR.pdf (6 Pages)
Hydraulics Superstructure General Layout 983622108_999_FR.pdf (8 Pages)
Pneumatic Cabin 983015908_999_FR.pdf (4 Pages)
Steering Hydraulics Pipework 983838008_999_FR.pdf (5 Pages)
Suspension Pipework 984198308_999_FR.pdf (4 Pages)
