Liebherr Crane LTM 1055-3.1 Z84528 Electric and Hydraulic Diagrams FR

Size: 61.20 MB

Format: PDF

Language: French

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LTM 1055-3.1 Z84528 Crane

(LTM1055-3.1, LTM/1055-3.1, LTM_1055-3.1, LTM-1055-3.1, LTM-1055/3.1)

150 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:
Bulkhead Plate Complete 983870108_999_FR.pdf (3 Pages)

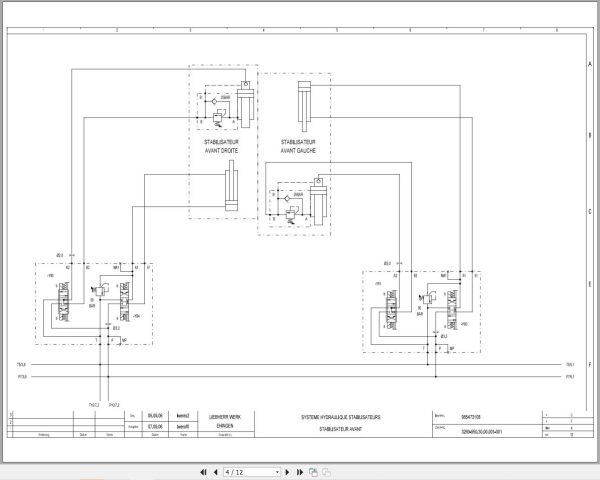

Control Hydraulics Compressed-Air System 985473108_999_FR.pdf (12 Pages)

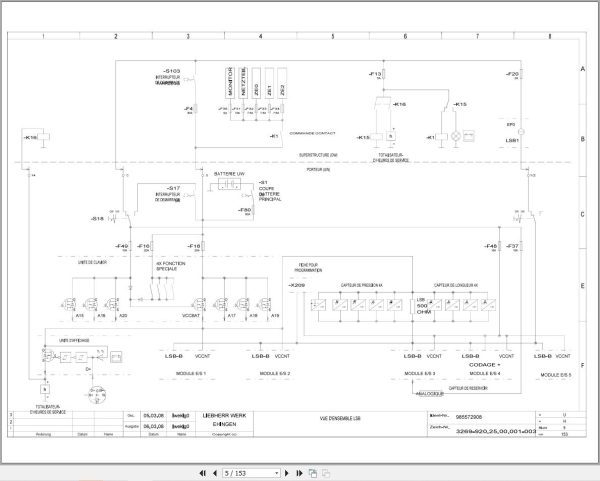

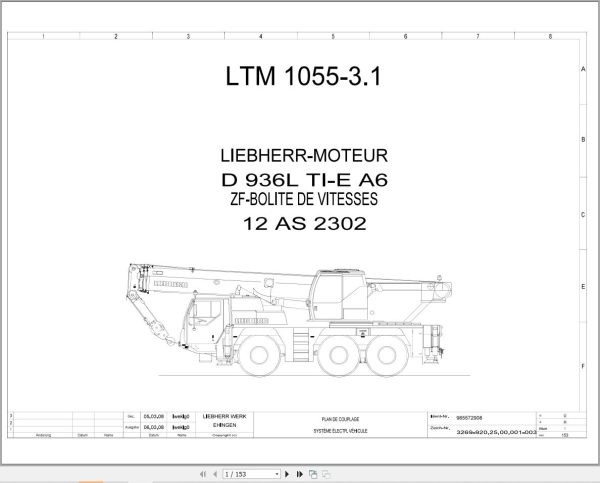

Electric Diagram 985572908_999_FR.pdf (153 Pages)
Emergency Operation Crane Hydraulics Superstructure Pipework 983434108_999_FR.pdf (4 Pages)
Hydraulics Superstructure General Layout With Emergency Lowering 985334208_999_FR.pdf (12 Pages)
Pneumatic Cabin 983860108_999_FR.pdf (3 Pages)
Pneumatic Trailer Coupling 981152308_999_FR.pdf (4 Pages)
Pneumatic Trailer Coupling 986876908_999_FR.pdf (4 Pages)
Steering Hydraulics Diagram 984822808_999_FR.pdf (3 Pages)
Suspension Pipework 984737808_999_FR.pdf (4 Pages)
Wiring Diagram 985536508_999_FR.pdf (153 Pages)
