Name: Liebherr Crane LTM 1090-2 Z23053 Electric and Hydraulic Diagrams DE
SKU: 477838
Availability: InStock

Liebherr Crane LTM 1090 2 Z23053 Electric and Hydraulic Diagrams DE 1

Liebherr Crane LTM 1090 2 Z23053 Electric and Hydraulic Diagrams DE 2

Liebherr Crane LTM 1090 2 Z23053 Electric and Hydraulic Diagrams DE 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Crane LTM 1090-2 Z23053 Electric and Hydraulic Diagrams DE

Size: 20.26 MB

Format: PDF

Language: German

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LTM 1090-2 Z23053 Crane

(LTM1090-2, LTM/1090-2, LTM_1090-2, LTM-1090-2, LTM-1090/2)

100 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:
Compressed-Air System 982412408_000 DE.pdf (9 Pages)
Compressed-Air System Superstructure 982478408_002 DE.pdf (2 Pages)

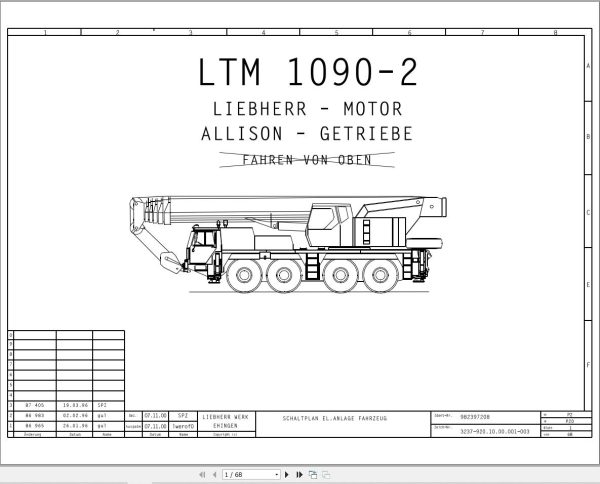

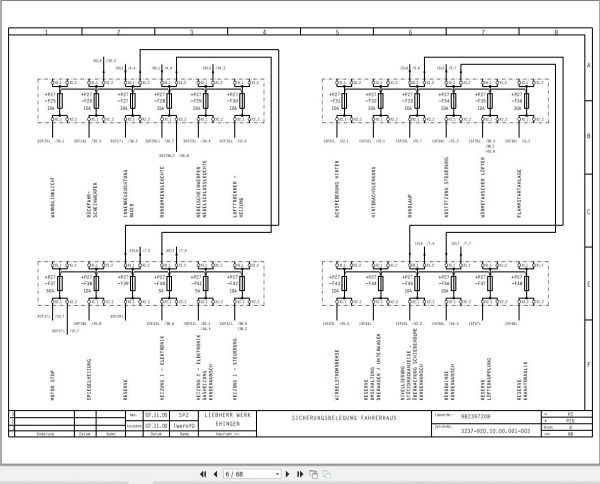

Electric Diagram 982397208_003 DE.pdf (68 Pages)
Electric Diagram 982479808_002 DE.pdf (127 Pages)

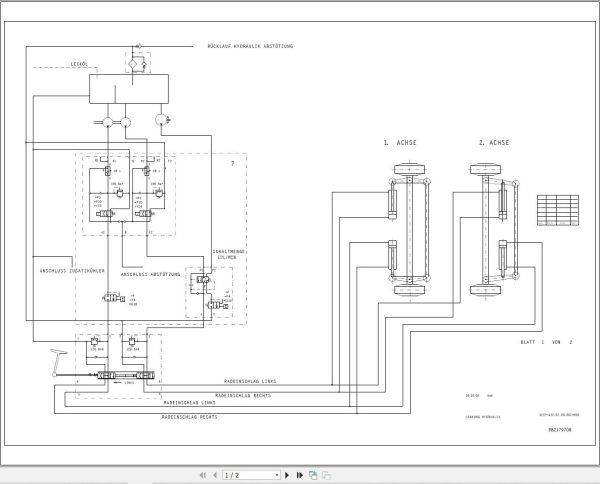

Hydraulic Diagram 982179708_000 DE.pdf (2 Pages)
Hydraulic Diagram 982415208_001 DE.pdf (7 Pages)
Hydraulic Diagram 982415808_001 DE.pdf (2 Pages)
Hydraulic Diagram LTM_1090-2_982538008 DE.pdf (1 Page)
Wiring List Relay Control +S22 982479908_002 DE.pdf (12 Pages)
