Liebherr Crane LTM 1160-2 Z22593 Electric and Hydraulic Diagrams EN

Size: 34.16 MB

Format: PDF

Language: English

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LTM 1160-2 Z22593 Crane

(LTM1160-2, LTM/1160-2, LTM_1160-2, LTM-1160-2, LTM-1160/2)

100 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:
Compressed-Air System Boom LTM 1160-2 982398208_999_EN.pdf (3 Pages)
Compressed-Air System LTM 1160-2 982395108_999_EN.pdf (9 Pages)

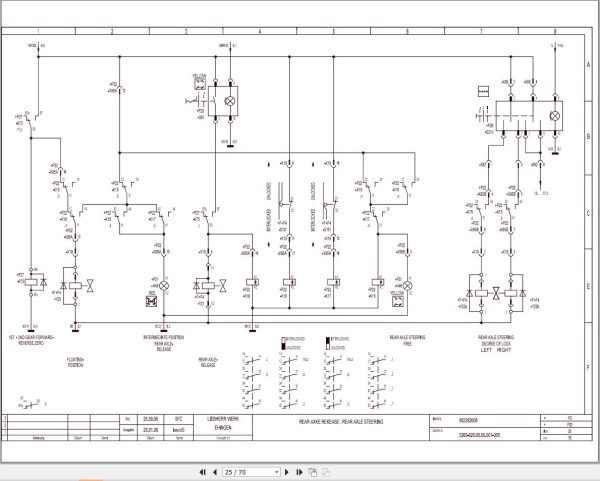

Electric Diagram 982382608_999_EN.pdf (70 Pages)
Electric Diagram 982410108_999_EN.pdf (115 Pages)

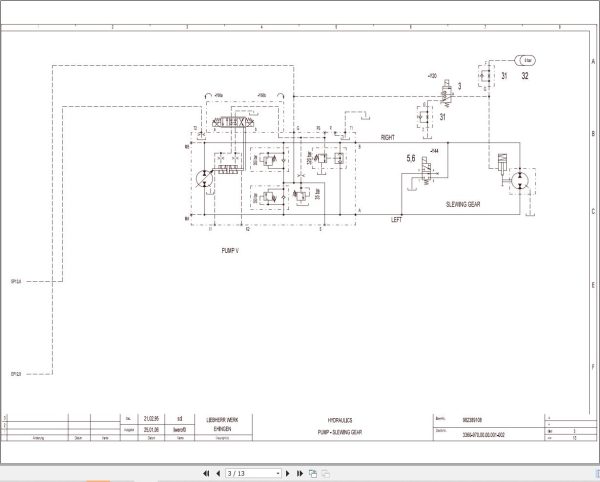

Hydraulic Diagram 982389108_999_EN.pdf (13 Pages)
Hydraulics Outriggers LTM 1160-2 982393708_999_EN.pdf (9 Pages)
Hydraulics Suspension LTM 1160-2 982396408_999_EN.pdf (7 Pages)
Steering Hydraulics LTM 1160-2 982397008_999_EN.pdf (5 Pages)
