Name: Liebherr Crane LTM 1500-8.1 Z73185 Electric and Hydraulic Diagrams RU
SKU: 478118
Availability: InStock

Liebherr Crane LTM 1500 8.1 Z73185 Electric and Hydraulic Diagrams RU 1

Liebherr Crane LTM 1500 8.1 Z73185 Electric and Hydraulic Diagrams RU 2

Liebherr Crane LTM 1500 8.1 Z73185 Electric and Hydraulic Diagrams RU 3

Liebherr Crane LTM 1500 8.1 Z73185 Electric and Hydraulic Diagrams RU 4

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Crane LTM 1500-8.1 Z73185 Electric and Hydraulic Diagrams RU

Size: 51.87 MB

Format: PDF

Language: Russian

Brand: Liebherr

Type of Machine: Crane

Type of Manual: Electric and Hydraulic Diagrams

Model: Liebherr LTM 1500-8.1 Z73185 Crane

(LTM1500-8.1, LTM/1500-8.1, LTM_1500-8.1, LTM-1500-8.1, LTM-1500/8.1)

200 USD

Tags: Liebherr Crane Electrical Schematic, Liebherr Crane Hydraulic Schematic

Description

Description

List of Files:

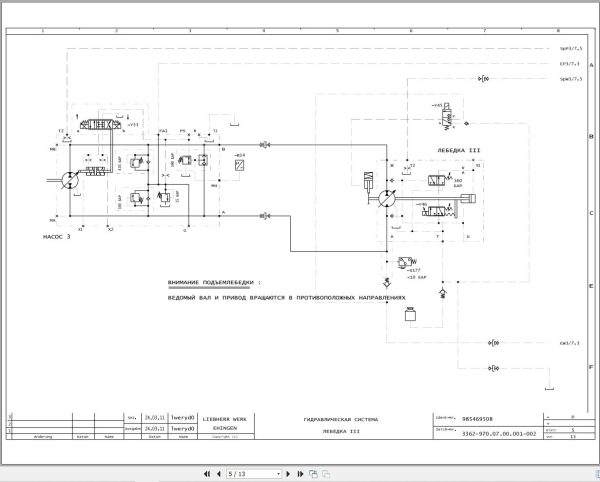

Additional Hydraulics Winch III 984907708_999_RU.pdf (4 Pages)
Control Hydraulics Compressed-Air System 984666208_999_RU.pdf (15 Pages)

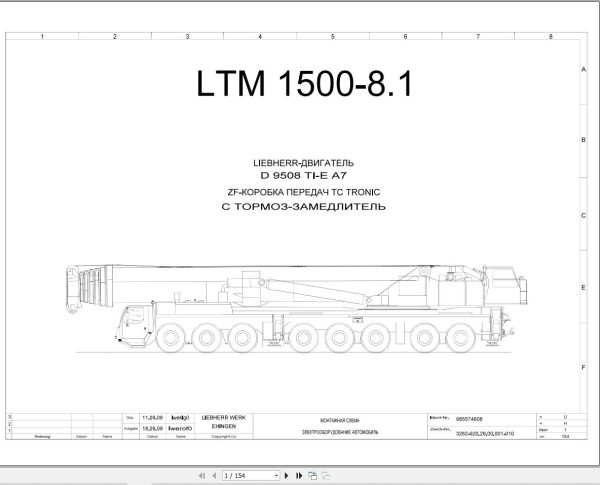

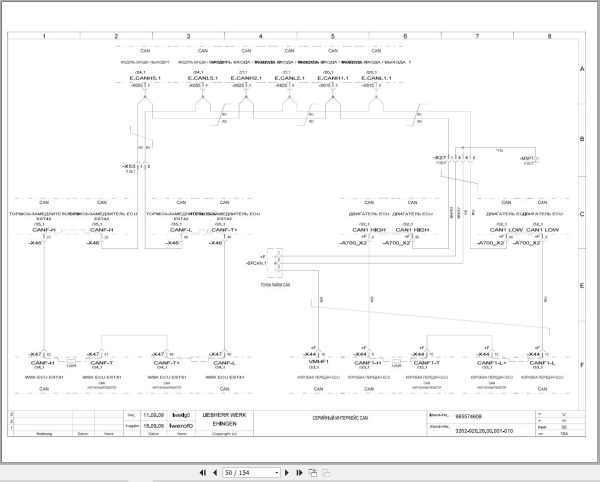

Electric Diagram 986302708_999_RU.pdf (220 Pages)
Electric Diagrams 985574608_999_RU.pdf (154 Pages)
Emergency Operation Crane Hydraulics Excess Pressure 984945008_999_RU.pdf (4 Pages)
Emergency Operation Crane Hydraulics Superstructure 984887408_999_RU.pdf (10 Pages)

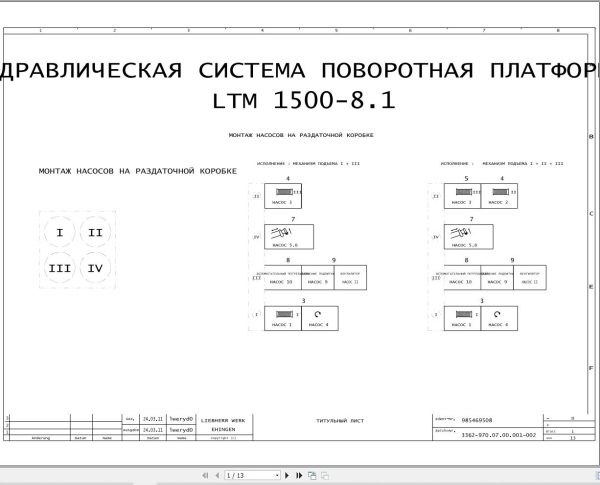

Hydraulics Superstructure LTM 1500-8.1 985469508_999_RU.pdf (13 Pages)
Hydraulics Suspension LTM 1500-8.1 984801908_999_RU.pdf (6 Pages)
LTM 1500-8.1 Hydraulics Outriggers 984796108_999_RU.pdf (4 Pages)
Pneumatic Operators Cab Tubing Diagram 983517508_999_RU.pdf (4 Pages)
Pre-Assembley Bulkhead Plate 983517908_999_RU.pdf (3 Pages)
Steering Hydraulics Rear Axle Steering 984791208_999_RU.pdf (4 Pages)
Valves – Steering Pre-Assembled 982686308_999_RU.pdf (3 Pages)
