Name: Liebherr Pump Gears PVG300C to PVG450C Repair Manual 11441229
SKU: 444873
Availability: InStock

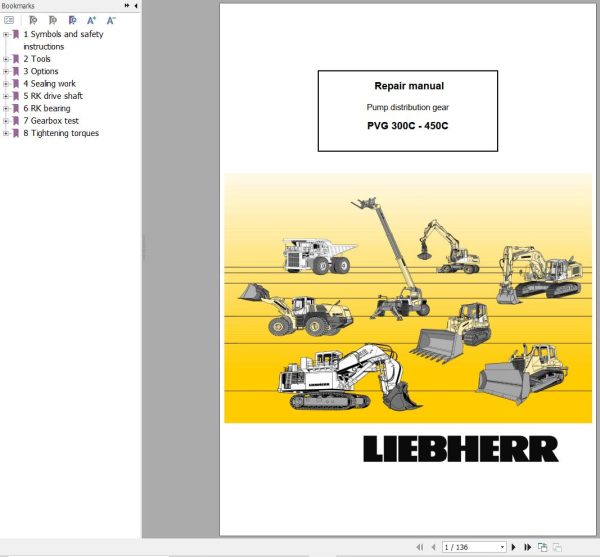

Liebherr Pump Gears PVG300C to PVG450C Repair Manual 11441229 1

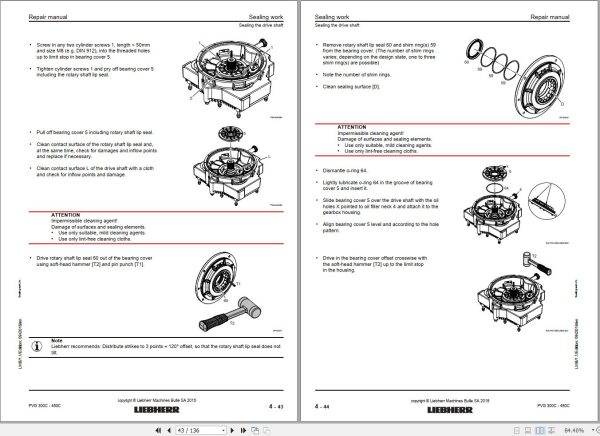

Liebherr Pump Gears PVG300C to PVG450C Repair Manual 11441229 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Pump Gears PVG300C to PVG450C Repair Manual 11441229

Size: 18.14 MB

Format: PDF

Language: English

Brand: Liebherr

Type of Machine: Pump Gears

Type of Manual: Repair Manual

Model: Liebherr PVG300C to PVG450C Pump Gears

Order Number: 11441229

Publication Date: 2016

Number of Pages: 136 Pages

20 USD

Tag: Liebherr Heavy Equipment Manual

Description

Description

Contents:
1 Symbols and safety instructions
1.1 Symbols in the Repair manual
1.2 Safety instructions
2 Tools
2.1 Customary tools T = Tool
2.2 Special tool LT = Liebherr tool
2.3 Instructions for the use of tools
3 Options
3.1 Validity
4 Sealing work
4.1 Complete seal kit
4.2 Cooling circuit pump seal kit
4.3 Sealing the drive shaft
4.4 Sealing the output
4.5 Sealing the intermediate drive
4.6 Sealing the oil dipstick
4.7 Sealing the oil filler neck
4.8 Sealing the oil drain plug
4.9 Sealing the heat exchanger
5 RK drive shaft
5.1 Overview
5.2 Removing the drive shaft bearing
5.3 Installing the drive shaft bearing
6 RK bearing
6.1 Overview
6.2 Bearing flange bearing
6.3 Intermediate flange bearing
6.4 Intermediate drive bearing
7 Gearbox test
7.1 Test bench
7.2 Commissioning / functional test after repair
8 Tightening torques
8.1 Standard torques for screw connections
8.2 Regulating pin torque
8.3 Hex nut torque Qmin. limit stop screw
8.4 Nozzle torque
8.5 Valve torque
8.6 Torques for standard Vsl screw plugs
8.7 Torques for screw plugs tapered thread
8.8 Torques for screw plugs with o-ring
8.9 Torques for VSTI standard screw plugs
8.10 Torques for guide bush 1 without o-ring
8.11 Torques for guide bush 1 with o-ring (steel gasket version)
8.12 Torques for guide bush 1 with o-ring (gap seal version)
8.13 Pressure cut-off torques
8.14 Brake valve torques
8.15 Hydraulic fluid drain torque
8.16 Screen torque
8.17 Torques for screw connections with cutting ring
8.18 Torque for screw connection / hinged threaded union and Minimess (series L)
8.19 Incremental crosswise tightening procedure
